Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
HK5V 600 H20	±600	±900	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 600 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 Wide temperature split‑core current sensor for energy monitoring system more... Products Data Sheet
HK5V 800 H20	±800	±1200	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 800 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 Easy install 12V 15V pulse output split‑core current sensor with analog signal more... Products Data Sheet
HK5V 200 H20	±200	±300	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 200 H20 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 Hall current sensor internal analog output proportional to primary AC DC current more... Products Data Sheet
HK5V 400 H20	±400	±600	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 400 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 Factory supply smart grid battery pack current monitoring hall current transducer more... Products Data Sheet
HK4V 5000 H00	5000	±6000	±15	5V	±1.0	DC...40	-40~85	112mm x 30mm		2EDG-4P-3.81
HK4V 5000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 12V 15V power supply accuracy 1% no insertion loss measure current with arduino split core current CT more... Products Data Sheet
HK4V 2000 H00	2000	±4000	±15	4V	±1.0	DC...40	-40~85	112mm x 30mm		2EDG-4P-3.81
HK4V 2000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial high di/dt open loop current sensor for welding power supply more... Products Data Sheet
HK4V 3000 H00	3000	±5500	±15	4V	±1.0	DC...40	-40~85	112mm×30mm		2EDG-4P-3.81
HK4V 3000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC/DC 3000 A range hall sensor high accuracy sensor for power analyzers more... Products Data Sheet
CN1A 25 PB00	25	±36	±15	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial Hall effect current sensors for UPS more... Products Data Sheet
HK3V 100 H20	±100	±200	±12...15	±4V	±1.0	DC	-25~85	Ø21.6		KF2EDGV-3.81-4P
HK3V 100 H20 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double hall effect design Open mounting Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Split core AC/DC pulsed current sensor for energy storage BESS cabinet more... Products Data Sheet
HK3A 100 H20	±100	±100	12	4...20mA	±1.0	DC	-25~85	Ø21.6		KF2EDGV-3.81-4P
HK3A 100 H20 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Output 12±8mA 12V（DC）Power supply Proportional output Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Split core current transformer clamp CT sensor more... Products Data Sheet
CN2A 40 PB01	40	±110	±12...15	±20mA	±0.5	200	-40~85	NA	+
CN2A 40 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020  IEC 61800-5-1:2022  IEC 62109-1:2010 Premium made in China DC hall effect current tranducer more... Products Data Sheet
CS3A 50 P01	50	±90	±12...15	±50...90mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 50 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High quality good linearity PCB mount type current sensor more... Products Data Sheet
CS3A 50 P51	50	±90	±12...15	±50...90mA	±0.3	150	-20~75	13.5 x 10 mm	+
CS3A 50 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed loop Hall effect AC/DC current sensor power supply±12V ~ ±15V more... Products Data Sheet
CN2A 50 PB01	50	±110	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 50 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measurement:Current Nominal Value:50A Measuring Range:110A Supply voltage range:12-15V Accuracy:0.5% Technology:Closed loop Hall effect Mounting:PCB Measurement current 50A supply voltage :12V-15V closed loop hall effect PCB mounting more... Products Data Sheet
CN2A 80 PB01	80	±160	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 80 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed-loop current sensors high-precision measurement for industries such as manufacturing, energy and rail transit. more... Products Data Sheet
CN2A 100 PB01	100	±160	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 100 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 A Hall current sensor measures electrical current for electric vehicles and industrial machines. more... Products Data Sheet

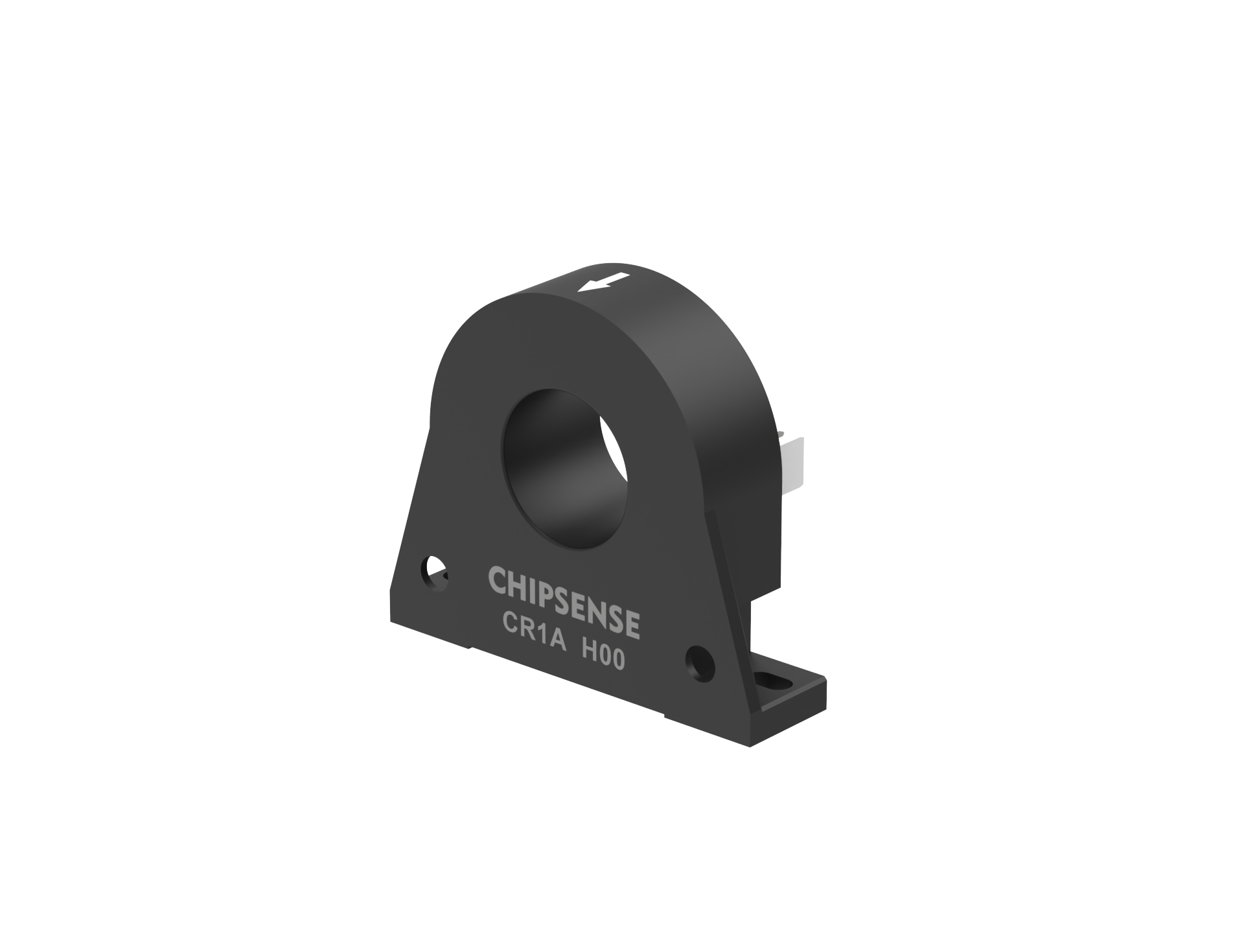

CR1A 100 H00	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 100 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current sensors are mainly used in industrial automation output 50mA power supply ±12V ±15V more... Products Data Sheet
CR1A 100 H01	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 100 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Supply voltage ±12V·±15V JK126-500-3P connection Low voltage hall effect based linear current sensor more... Products Data Sheet
CS3A 100 P00	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy hall effect current tranducer primary busbar 13.5x10.0mm based on PCB mount type more... Products Data Sheet
CS3A 100 P01	100	±160	±12...15	±100...160mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 100 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High sensitivity, supply voltage ±12V ±15V best current sensor modules for hobbyist electronics projects more... Products Data Sheet
CS3A 125 P00	125	±200	±12...15	±125...200mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 125 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High bandwidth current sensor and low offset drift over temperature PCB installation more... Products Data Sheet
CR1A 200 H00	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Magnetic current sensors suppliers supply voltage: 12 - 15V output100 mA more... Products Data Sheet
CR1A 200 H01	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 200 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 200A hall effect analog current sensor very good linearity for measurements High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect analog current sensor very good linearity for measurements more... Products Data Sheet
CM1A 200 H00	200	±420	±12...15	±100...210mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 China professional high-frequency current transducers factory more... Products Data Sheet
CR1A 300 H00	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 300 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low voltage high accuracy wide input range 100A-300A through hole type current transducer more... Products Data Sheet
CR1A 300 H01	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 300 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accurate hall effect AC/DC power supply ±12 V ~ ±15V through-hole type current sensor more... Products Data Sheet
CR1A 300 H02	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 300 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect sensors analog circuit design measure Current Using Current Sensors more... Products Data Sheet
CM2A 300 H00	300	±500	±12...20	±150...250mA	±0.3	100	-40~85	Ø20		Molex 6410
CM2A 300 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current transducersupply voltage ±12 ±20V input 300A CT more... Products Data Sheet
CR2A 400 H00	400	±600	±15...24	±100...150mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 400 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Measuring range 300A-500A ±15V ±24Vcurrent transducer more... Products Data Sheet
CR2A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 500 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Low voltage high accuracy current measurement device 500A closed-loop current sensors more... Products Data Sheet
CM3A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		Molex 6410
CM3A 500 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor CT measures direct current flow using the hall effect renewable energy, electric vehicles, and power monitoring more... Products Data Sheet
CM3A 500 H01	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		JST B3P VH
CM3A 500 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall current measurement device 500A low current consumption more... Products Data Sheet
CM4A 1000 H00	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Closed-loop current transducers supplier low voltage measuring 1000A more... Products Data Sheet
CM4A 1000 H03	1200	±1800	±24	±300...450mA	±0.4	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H03 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High accuracy wide applications fileds closed-loop hall effect current sensor 1000A supply voltage ±24 more... Products Data Sheet
CM4A 1000 H05	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H05 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Professional current transducer supplier for rail transit system more... Products Data Sheet
HK1A 200 H00	200	±240	12	4...20mA	±1.0	DC	-25~85	Ø41.3		2EDGV-3.81-4P
HK1A 200 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Bidirectional easy assembly split core AC DC pulse current measuring sensor CHCS-EKF 200A for battery management system BMS SMPS UPS more... Products Data Sheet
CM5A 2000 H20	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		JST B3P VH
CM5A 2000 H20 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect DC current measurement device high accuracy reliable current transducer more... Products Data Sheet
HS1V 50 H00	50	±150	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 50 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial current transducer products high accuracystability top performance and effective cost more... Products Data Sheet
HS1V 50 H05	50	±150	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 50 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Excellent accuracy easy use, high reliability output ±4V 50A, 100A, 200A, 300A, 400A, 500A, 600A current sensor more... Products Data Sheet
HR1V 50 H01	50	±100	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 50 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 DC Current transducer using precision constant current technology DC current general-purpose, strong overload capacity and high isolation. more... Products Data Sheet
HS1V 100 H05	100	±300	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 100 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors measuring electric current for protection of electrical equipment more... Products Data Sheet
HR1V 100 H01	100	±200	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 100 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensors rely on open-loop hall effect technology more... Products Data Sheet
FR1C 700 H2152A	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H2152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
HS1V 200 H00	200	±600	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Factory sale open loop capacitive sensor for electronic measurement of current supply voltage ± 12V ± 15V more... Products Data Sheet
HS1V 200 H05	200	±600	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 200 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open-loop easy mounting small size and saves space hall current sensor more... Products Data Sheet
HS2V 200 H05	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 200 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Easy mounting small size open-loop Hall effect technology for industrial scenarios more... Products Data Sheet
HR1V 200 H01	200	±400	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current transducers for monitoring and control. more... Products Data Sheet
FR1C 500 H2152A	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
HS1V 300 H00	300	±900	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 300 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect principle supply voltage ±12V ±15V measures electrical currentfor battery management more... Products Data Sheet
HS1V 300 H05	300	±900	±12...15	±4V	±1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 300 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect current sensor in EVs, inverters, and industrial controls for safety and accuracy more... Products Data Sheet
HR1V 300 H01	300	±600	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 300 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall sensor offering higher accuracy and dynamic range more... Products Data Sheet
FR1C 300 H2152A	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
HS1V 400 H00	400	±900	±12...15	±4V	+1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 400 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Direct factory Hall effect current sensor open loop series for welding applications more... Products Data Sheet
HR1V 400 H01	400	±800	±12...15	±5V	±1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 400 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 New and original customizable 50A 100A 200A 300A 400A 500A Hall open loop current sensor more... Products Data Sheet
FR1C 500 H1152A	500	±530	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H1152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
HS2V 500 H05	500	±1500A	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 500 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Different types current sensors Detection range 200A-1500A, working voltage ±15V more... Products Data Sheet
HR1V 500 H01	500	±900	±12...15	±5V	+1.0	20	-40~85	Ø20		JK2EDG-5.08-4P
HR1V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High precision and low drift hall current sensor more... Products Data Sheet
FR1C 700 H1152A	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
HS1V 600 H00	600	±900	±12...15	±4V	+1.0	50	-40~105	20x10 mm		MOLEX 5045-04A
HS1V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor used detects and measuresensure safety, efficiency, and proper operation of electrical systems more... Products Data Sheet
HS2V 600 H05	600	±1800	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 600 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Wide frequency cost-effective open-loop high accuracy current sensor more... Products Data Sheet
HS3V 800 H00	800	+2400	±15	±4V	+1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor detects electric current enabling monitoring and control more... Products Data Sheet
HS2V 1000 H05	1000	±2500	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 1000 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Analog output voltage current sensor for New market HVDC more... Products Data Sheet
HS2V 1500 H05	1500	±2500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 1500 H05 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor for motor control and telecommunication rectifiers more... Products Data Sheet
HS3V 1500 H00	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 1500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High voltage 500-3000A current measurement sensor more... Products Data Sheet
HS3V 2000 H00	2000	±5500	±15	±4V	±1	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 2000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect open-loop technology current sensor for industrial applications more... Products Data Sheet
HS3V 3000 H00	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 3000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor Measurement of 500A 600A 800A 1000A 1500A 2000A 2500A 3000A 15V power supply 4V more... Products Data Sheet
AN5V 30 PB00	30	±90	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 30 PB00 30A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Small size current sensors employed in solar inverters and battery management systems more... Products Data Sheet
AN5V 10 PB00	10	±30	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 10 PB00 10A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 AC and DC currents sensor in automotive and industrial applications more... Products Data Sheet
AN3V 10 PB50	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Very low power consumption open loop current sensors more... Products Data Sheet
AN5V 15 PB00	15	±45	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 15 PB00 15A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Easy to use and simpler design ASIC current sensor more... Products Data Sheet
AN3V 16 PB50	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V Electrical Measuring Analog Module Small AC Current Transducer 10A 16A 20A 32A 40A 50A more... Products Data Sheet
AN5V 20 PB00	20	±60	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 20 PB00 20A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 High-performance transducers for track motor control more... Products Data Sheet
AN3V 20 PB50	20	±50	5	2.5±2V	±1	250	-40~105	NA	+
AN3V 20 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 ASIC current sensors for HVDC application area more... Products Data Sheet
AN5V 25 PB00	25	±75	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 25 PB00 25A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Low sensitivity error ASIC sensors more... Products Data Sheet
AS1V 30 H05	30	±30	5	2.5±0.625V	+1	50	-40~105	20.5x10.5 mm		RVVP 3×0.3mm×0.3mm-1000
AS1V 30 H05 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor with primary nominal rms current ±30A,Supply voltage 5V more... Products Data Sheet
AN3V 32 PB50	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size PCB mounting open loop current sensor more... Products Data Sheet
AN3V 40 PB50	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Electronic components hall effect current sensor more... Products Data Sheet
AN5V 50 PB00	50	±150	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 50 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Hall effect sensor working principle and applications more... Products Data Sheet
AN1V 50 PB511	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect sensors series current sensor manufactured by factory for battery management more... Products Data Sheet
AN1V 50 PB512	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor for both AC and DC current detection DC-DC converter control more... Products Data Sheet
AN1V 50 PB501	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors for uninterruptible power supply more... Products Data Sheet
AN1V 50 PB502	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors designed for EV traction and auxiliary inverters, DC-DC converters, on-board chargers, solar inverters more... Products Data Sheet
AN1V 50 PB311	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Small size open loop current sensor unidirectional power supply voltage 3.3V for PCB mounting more... Products Data Sheet
AN1V 50 PB312	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High quality open loop current sensor with respect to applicable standards for wide applications in industry more... Products Data Sheet
AN3V 50 PB30	50	±125	3.3	1.65±1.15V	+1.0	250	-40~150	NA	+
AN3V 50 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect current sensor for new energy industrial automation more... Products Data Sheet
AN3V 50 PB50	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V current sensor for Servo Motor more... Products Data Sheet
AS1V 50 H00	50	±50	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High performance current sensor for EV HEV BMS more... Products Data Sheet
AS1V 50 H01	50	±150	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Industrial grade bidirectional current sensor for AI data center industrial internet more... Products Data Sheet
AN3V 80 PB55	80	±200	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 80 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor for renewable energy systems more... Products Data Sheet
AN1V 100 PB511	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors for various applications more... Products Data Sheet
AN1V 100 PB512	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Durable high power DC/AC current sensor for industrial electronic devices more... Products Data Sheet
AN1V 100 PB501	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial grade current sensor with high sensitivity real-time monitoring for hybrid electric vehicle more... Products Data Sheet
AN1V 100 PB502	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 50A-300A High precision current sensor for fast detection, current monitoring and protection more... Products Data Sheet
AN1V 100 PB311	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 3.3V high sensitivity current sensor for PCB board mounting battery powered more... Products Data Sheet
AN1V 100 PB312	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 high frequency Supply voltage 3.3V open loop current sensor for AC variable speed more... Products Data Sheet
AN3V 100 PB55	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect current sensor supply voltage 5V high sensitivity low noise for combining manifolds Electronic Equipment more... Products Data Sheet
AS1V 100 H00	100	±100A	5	2.5±2	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Battery powered 5V portable industrial grade current sensor wide measurement range for Industrial application fields more... Products Data Sheet
AS1V 100 H01	100	±300	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor for industrial environment more... Products Data Sheet
AS1V 100 H07	100	±100	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		RVVP 3 x 0.3mmx 0.3mm -600
AS1V 100 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensors for various applications more... Products Data Sheet

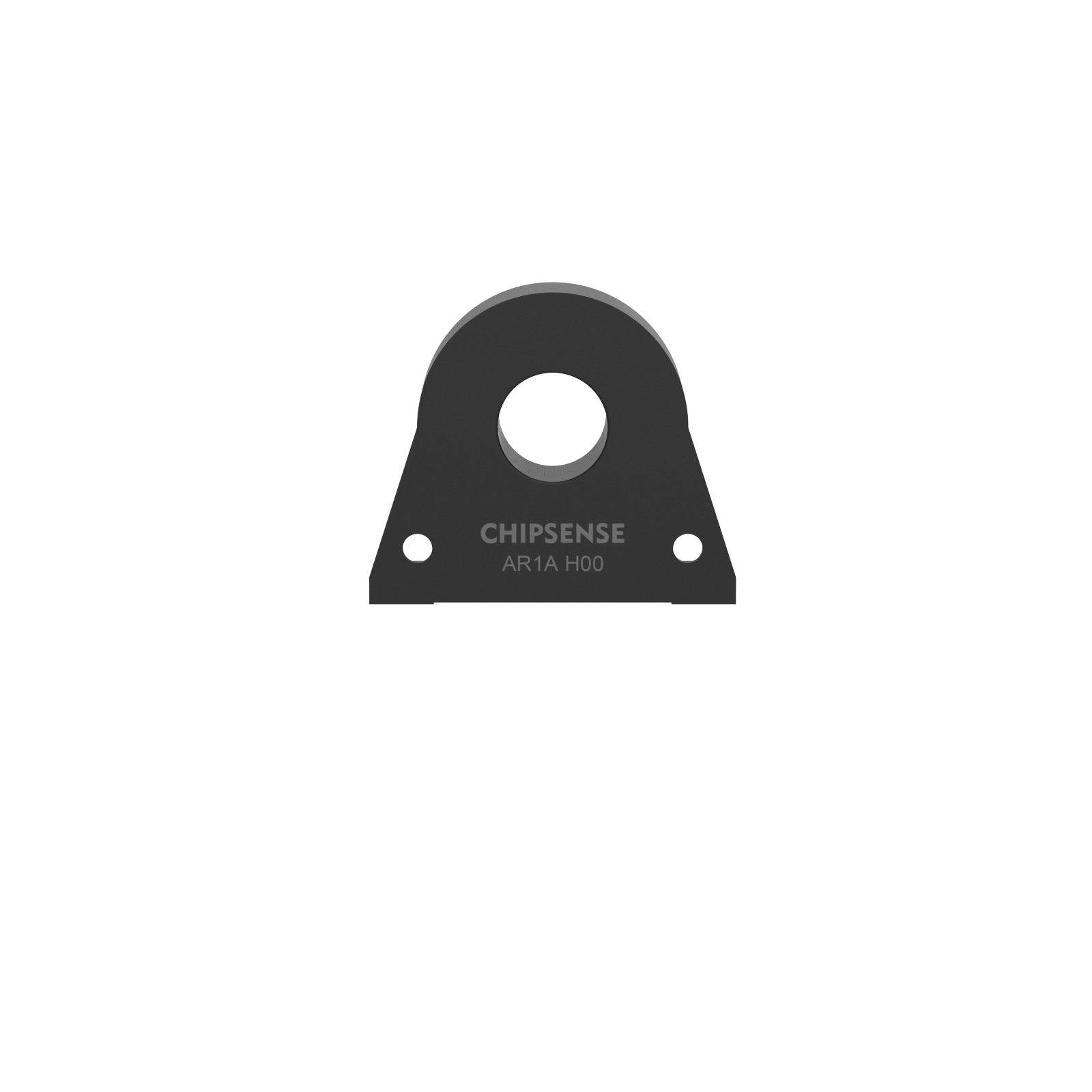

AR1A 100 H00	100	±100	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010100A Current transducer for Testing and measuring equipment more... Products Data Sheet
AR1A 100 H01	100	±100	±12...15	±100mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor measured current for smart grids, electric vehicles more... Products Data Sheet
AN3V 120 PB55	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor for monitoring, control, or protection. more... Products Data Sheet
AN1V 150 PB511	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How to use ACS758 Current Sensor with arduino for 50A to 200A more... Products Data Sheet
AN1V 150 PB512	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors in power supplies more... Products Data Sheet
AN1V 150 PB501	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect current transducer more... Products Data Sheet
AN1V 150 PB502	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy hall effect current sensors more... Products Data Sheet
AN1V 150 PB311	150	±150	3.3	1.65±1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Widely used Current transducers for industrial automotive more... Products Data Sheet
AN1V 150 PB312	150	±150	3.3	1.65+1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Bidirectional proportional output ASIC technology current sensor more... Products Data Sheet
AN1V 200 PB511	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 200A High sensitivity current transducer for Hybrid electric vehicle more... Products Data Sheet
AN1V 200 PB512	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Small size sensors low noise for motor control more... Products Data Sheet
AN1V 200 PB501	200	200	5	0.55...4.55V	±1.0	250	-40~85	NA	+
AN1V 200 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High frequency high reliability current sensor for smart electronic systems and fast detection more... Products Data Sheet
AN1V 200 PB502	200	0-200	5	0.55+4V	±1.0	250	-40~85	NA	+
AN1V 200 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 50A~300A current sensor for current monitoring and protection more... Products Data Sheet
AN1V 200 PB311	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop current sensor supply voltage 3.3V wide measurement PCB mouting more... Products Data Sheet
AN1V 200 PB312	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Multifunctional high-linearity resistant current sensor for for home appliance more... Products Data Sheet
AS1V 200 H00	200	±200	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 How the current sensor works in robotics more... Products Data Sheet
AS1V 200 H01	200	±600	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Electric current sneosr current sensing circuit diagram more... Products Data Sheet
AS1V 200 H07	200	±200	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		RVVP 3 x 0.3mm x 0.3mm -600
AS1V 200 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High accuracy current sensor core electronic component for Battery Management System more... Products Data Sheet
AR1A 200 H00	200	±200	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 200 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High precision AC DC current transducer for welding equipment more... Products Data Sheet
AR1A 200 H01	200	±200	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 200 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Wide bandwidth current sensor for laser welding machine more... Products Data Sheet
AS1V 300 H00	300	±300	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Welding power supply current sampling hall sensor more... Products Data Sheet
AS1V 300 H01	300	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Open-loop current sensor for electric vehicle charging station more... Products Data Sheet
AS1V 400 H00	400	±400	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall effect DC and AC current transducer for overcurrent protection circuit more... Products Data Sheet
AS1V 400 H01	400	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor component for industrial control more... Products Data Sheet
AS1V 500 H00	500	±500	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor for monitor the operating conditions of the motors more... Products Data Sheet
AS1V 500 H01	500	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Primary hole type currrent sensor with fast response, supply voltage+5V, real-time monitoring more... Products Data Sheet
AS1V 600 H00	600	±600	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Lightweight low loss motor control open loop high precision current sensor for AC variable speed more... Products Data Sheet
AS1V 600 H01	600	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Panel mounted current sensors more... Products Data Sheet
AS1V 700 H00	700	±700	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 700 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor HASS 700-S +5V more... Products Data Sheet
AS1V 800 H00	800	±800	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 800 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall effect sensor for electric scooter motor uninterruptible power supplies more... Products Data Sheet
TR1V 0.01 H00	10mA	15mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.01 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Board‑Mount Leakage Current Sensors more... Products Data Sheet
TR1V 0.02 H00	20mA	30mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.02 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Fast Response time high frequency AC current monitoring sensor more... Products Data Sheet
TR1V 0.05 H00	50mA	75mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.05 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Through hole hall current sensor for Industrial control more... Products Data Sheet
TR1V 0.1 H00	100mA	150mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.1 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor use residual current in electrical systems more... Products Data Sheet
TR1V 0.2 H00	200mA	250mA	±12...15	5V	±1.0	50	-10~70	Ø20.0		JK2EDG-5.08-4P
TR1V 0.2 H00 Ac current sensor based on transformer technology DC voltage output Insulating plastic case recognized according to UL 94-V0（Blue） High accuracy Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 An energy and leakage current monitoring current sensor for abnormality detection more... Products Data Sheet
FR7V 0.005 H00	0.005	±0.007	±15	±5V	±1.0	DC	-10~70	Ø12		KF2EDG 3.81MM 4P
FR7V 0.005 H00 Current sensor based on fluxgate technology Output voltage Insulating plastic case recognized according to UL 94-V0（Blue） High linearity Very low zero temperature drift Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor fluxgate technology for residual current measurement more... Products Data Sheet
FR2V 0.01 H00	0.01	±0.015	±12...15	±5V	+1.0	DC	-10~70	Ø20.0		JK2EDG-5.08-4P
FR2V 0.01 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL 94-V0.（Black） High linearity Very low zero temperature drift Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Good quality fluxgate current sensor more... Products Data Sheet
FR5V 0.01 H00	0.01	±0.015	±12...15	±5V	±1.0	DC	-10~70	Ø40.5		JK2EDG-5.08-4P
FR5V 0.01 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL94-V0（Black） High linearity Very low zero temperature drift Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High measurement accuracy DC leakage current sensor more... Products Data Sheet
FR2V 0.02 H00	0.02	±0.03	±12...15	±5V	±1.0	DC	-10~70	Ø20.0		JK2EDG-5.08-4P
FR2V 0.02 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL 94-V0.（Black） High linearity Very low zero temperature drift Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 DC leakage current sensor designed for electrical safety protection panel mount more... Products Data Sheet
FR5V 0.02 H00	0.02	±0.03	±12...15	±5V	±1.0	DC	-10~70	Ø40.5		JK2EDG-5.08-4P
FR5V 0.02 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL94-V0（Black） High linearity Very low zero temperature drift Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High-Accuracy portable fluxgate technology leakage current sensor more... Products Data Sheet
FR2V 0.05 H00	0.05	±0.075	±12...15	±5V	±1.0	DC	-10~70	Ø20.0		JK2EDG-5.08-4P
FR2V 0.05 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL 94-V0.（Black） High linearity Very low zero temperature drift Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 DC leakage current sensor for PV leakage current measurement more... Products Data Sheet
FR5V 0.05 H00	0.05	±0.075	±12...15	±5V	±1.0	DC	-10~70	Ø40.5		JK2EDG-5.08-4P
FR5V 0.05 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL94-V0（Black） High linearity Very low zero temperature drift Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Good quality fluxgate current sensor more... Products Data Sheet
FR2V 0.1 H00	0.1	±0.15	±12...15	±5V	±1.0	DC	-10~70	Ø20.0		JK2EDG-5.08-4P
FR2V 0.1 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL 94-V0.（Black） High linearity Very low zero temperature drift Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC and DC leakage current detection current sensor more... Products Data Sheet
FR5V 0.1 H00	0.1	±0.15	±12...15	±5V	±1.0	DC	-10~70	Ø40.5		JK2EDG-5.08-4P
FR5V 0.1 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL94-V0（Black） High linearity Very low zero temperature drift Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Leakage current sensor for industrial automation more... Products Data Sheet
FR2V 0.3 H00	0.3	±0.36	±12...15	±5V	±1.0	DC	-10~70	Ø20.0		JK2EDG-5.08-4P
FR2V 0.3 H00 Current sensor based on fluxgate technology Output Voltage Insulating plastic case recognized according to UL 94-V0.（Black） High linearity Very low zero temperature drift Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Leakage current sensor for AI data center power supply and HPC systems more... Products Data Sheet
VN2A 25 P01	5mA	7mA	24	±25mA	±0.8		-40~85	NA	+
VN2A 25 P01 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Single power supply:+24V No insertion loss Small size High accuracy Very good linearity Very low offset drift over temperature High output frequency bandwidth Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor with good temperature stability more... Products Data Sheet
VN2A 25 P00	10mA	±14mA	±15	±25mA	±0.6		-40~85	NA	+
VN2A 25 P00 Closed loop (compensated) voltage sensor using the Hall Effect. Insulating plastic case recognized according to UL94-V0. No insertion loss. Small size. High accuracy. Very good linearity. Very low offset drift over temperature. High output frequency bandwidth. Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Isolated voltage sensor for welding machine power control more... Products Data Sheet
VN2A 25 P02	10mA	±14mA	24	±25mA	±0.8		-40~85	NA	+
VN2A 25 P02 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 No insertion loss Small size High accuracy Very good linearity Very low offset drift over temperature High output frequency bandwidth Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Compact small size closed loop voltage sensor for PCB mount more... Products Data Sheet
VN2A 400 PB02	400V	±400V	±12	±5V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 400 PB02 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Supply voltage +12V Very good linearity Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor factory wholesale for power electronics more... Products Data Sheet
VN2A 800 PB00	800V	±1400V	±12...15	±25mA	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 800 PB00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor ±12V ±15V ±0.6% accuracy closed loop hall effect for Industrial drives more... Products Data Sheet
VN2A 800 PB01	800V	±1400V	24	4V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 800 PB01 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Supply voltage +24V Very good linearity Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Wide range voltage sensor for power monitoring more... Products Data Sheet
VN2A 1100 PB00	1100V	±1500V	±12...15	±25mA	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 1100 PB00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Replacement voltage sensor same pin to pin for energy storage PCS more... Products Data Sheet
VN2A 1100 PB03	1100V	±1500V	±15	±4V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 1100 PB03 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL 94-V0 Small size High accuracy Supply voltage:±15V Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor circuit diagram more... Products Data Sheet
VN2A 1100 PB20	1100V	±1100V	±12	±4V	±0.6		-40~85	NA		XH-3A
VN2A 1100 PB20 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Industrial voltage sensor for power supply monitoring system more... Products Data Sheet
FR1C 300 H2252A	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
HK1V 200 H00	200	±400	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 200 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High voltage power distribution 200A current transducer more... Products Data Sheet
HK1V 400 H00	400	±800	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 400 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial current sensor for power supply monitoring system more... Products Data Sheet
HK1V 600 H00	600	±1200	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 600 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Wide range open loop split core current sensor suitable for energy storage more... Products Data Sheet
HK1V 800 H00	800	±1600	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 800 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 No power-off installation split core current sensor more... Products Data Sheet
HK1V 1000 H00	1000	±2000	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 1000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Factory price open loop hall effect current sensor for distribution cabinet more... Products Data Sheet
HK1V 2000 H00	2000	±4000	±12...15	±4V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 2000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC current measurement, 0-5V / 4-20mA output available split core current sensor more... Products Data Sheet
HK1V 200 H01	200	±400	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 200 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 China open loop current sensor manufacturer more... Products Data Sheet
HK1V 400 H01	400	±800	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 400 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compact small size current sensor more... Products Data Sheet
HK1V 600 H01	600	±1200	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 600 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Split structure current sensor for energy storage PCS more... Products Data Sheet
HK1V 800 H01	800	±1600	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 800 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low drift voltage transducer IEC61010 CE RoHS more... Products Data Sheet
HK1V 1000 H01	1000	±2000	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 1000 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measure AC/DC split core Hall current sensor 200A 400A 500A 600A 800A 1000A 2000A linearity and accuracy ±1 % more... Products Data Sheet
HK1V 2000 H01	2000	±4000	±12...15	±5V	±1.0	10	-40~85	Ø40.5		15EDGVC-3.5-04P
HK1V 2000 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hot selling open type wide range current transducer supplier more... Products Data Sheet
HK3V 50 H20	±50	±100	±12...15	±4V	±1.0	DC	-25~85	Ø21.6		KF2EDGV-3.81-4P
HK3V 50 H20 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double hall effect design Open mounting Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Split core type current transformer design, operation, & applications more... Products Data Sheet
HS1V 50 H02	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 50 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Electronically measuring DC, AC, various industrial applications current transducer more... Products Data Sheet
HS1V 50 H03	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 50 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low temperature drift closed loop current sensor more... Products Data Sheet
HS1V 50 H04	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 50 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low temperature drift closed loop current sensor more... Products Data Sheet
HS1V 50 H06	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 50 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open-loop vs Closed-loop current sensor comparison more... Products Data Sheet
HS1V 50 H08	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 50 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low zero drift, customized service current sensor for PCS more... Products Data Sheet
HS1V 50 H09	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 50 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy current sensors stable performance over full temperature range more... Products Data Sheet
HS1V 100 H00	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 100 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 China's open-loop current sensor for welding machine more... Products Data Sheet
HS1V 100 H02	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 100 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Wide range AC DC measurement more... Products Data Sheet
HS1V 100 H03	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 100 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor used in HVDC application more... Products Data Sheet
HS1V 100 H04	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 100 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall-effect sensors (isolated, non-contact) and resistive shunt sensors (direct measurement) more... Products Data Sheet
HS1V 100 H06	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 100 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 DC current measuring device more... Products Data Sheet
HS1V 100 H08	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 100 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Types of Hall Effect DC Current Sensors in automotive, industrial, and power systems more... Products Data Sheet
HS1V 100 H09	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 100 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy current sensors used for measuring current with cable 700mm primary hole 20.4mm×10.4mm more... Products Data Sheet
HS1V 200 H02	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 What are the main types of current sensors? more... Products Data Sheet
HS1V 200 H03	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 200 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 How electric current sensor technology works? more... Products Data Sheet
HS1V 200 H04	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 200 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 3μs Fast response ±12V ±15V hall current sensor 50kHz bandwidth low drift hall current sensor for industrial application more... Products Data Sheet
HS1V 200 H06	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 200 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 ±1% Accuracy supply voltage ±12V ±15V current sensor -40℃ to 105℃ , 6.6kV impulse withstand current sensor more... Products Data Sheet
HS1V 200 H08	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 200 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Easy install compact current sensor output wire length 700±20mm for energy storage system more... Products Data Sheet
HS1V 200 H09	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 200 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 OEM current sensor with wire from professional hall current sensor supplier more... Products Data Sheet
HS2V 200 H01	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop current sensor supply voltage+4V,output line length 150m for Static converters for DC motor drives more... Products Data Sheet
HS2V 200 H02	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary hole 40.5mm×32.5mm current transformer used for charge integration and condition monitoring of rechargeable batteries more... Products Data Sheet
HS1V 300 H02	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 300 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 The type of output used by a current sensor depends on the desired application and operating environment more... Products Data Sheet
HS1V 300 H03	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 300 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Types of Current Sensors and Their Advantages and Disadvantages more... Products Data Sheet
HS1V 300 H04	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 300 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measurement Range 50A to 600A compact design for panel mounting and integration into existing systems. more... Products Data Sheet
HS1V 300 H06	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 300 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 ±150A to ±900A primary current measuring range12V 15V supply voltage (±5%) ±4V analog output voltage current transformer more... Products Data Sheet
HS1V 300 H08	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 300 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 ±4V output open loop Hall effect current sensor 50A to 600A bidirectional measurement more... Products Data Sheet
HS1V 300 H09	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 300 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Fast response RoHS CE compliant current sensor for welding power supply and SMPS,output voltage is proportional to the supply voltage more... Products Data Sheet
HS1V 400 H02	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 400 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Types and Characteristics of Current Sensors more... Products Data Sheet
HS1V 400 H03	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 400 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current measurement methods more... Products Data Sheet
HS1V 400 H04	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 400 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High precision current transducer high reliability current sensor Φ4.5 mm through hole for harsh environment -40℃ to 105℃ more... Products Data Sheet
HS1V 400 H05	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 400 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Reinforced insulation current sensor miniature current sensor Φ4.5 mm through-hole for space‑constrained power module more... Products Data Sheet
HS1V 400 H06	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 400 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Power Supply current sensor ±12V ±15V supply reliable and precise solution for industrial current measurement more... Products Data Sheet
HS1V 400 H08	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 400 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Wholesale open loop current sensor China manufacturers, suppliers, factory more... Products Data Sheet
HS1V 400 H09	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 400 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Power Supply current sensor ±12V ±15V supply reliable and precise solution for industrial current measurement more... Products Data Sheet
HS2V 400 H00	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 400 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Wholesale open loop current sensor China manufacturers, suppliers, factory more... Products Data Sheet
HS2V 400 H01	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 400 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compact current transducers AC and DC currents ranging from 200 A to 1500 A more... Products Data Sheet
HS2V 400 H02	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 400 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current transducer measurement range 200A to 1500A Easy installation bipolar power supply ±15V for Power supplies for welding applications more... Products Data Sheet
HS1V 500 H00	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low temperature drift ±4V output analog current sensor for BMS UPS SMPS more... Products Data Sheet
HS1V 500 H02	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Molex connector 50kHz bandwidth current sensor for AC DC pulsed current for easy PCB installation more... Products Data Sheet
HS1V 500 H03	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 500 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 How to choose a current sensor for EV inverter and custom current sensor solution more... Products Data Sheet
HS1V 500 H04	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 500 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compatible alternative open cloop 500A current sensor isolated for EV, solar inverter and industrial automation more... Products Data Sheet
HS1V 500 H05	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 500 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop hall effect current sensor 50A~600A with galvanic isolation for EV, BESS & solar inverterapplications more... Products Data Sheet
HS1V 500 H06	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 500 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy hall current sensor module 500A analog output ±4V for battery energy storage systems (BESS) more... Products Data Sheet
HS1V 500 H08	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 500 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed loop and open loop hall effect current sensor more... Products Data Sheet
HS1V 500 H09	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 500 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 CHIPSENSE Open loop hall sensor factory AC/DC 500A current input 4V output for meters more... Products Data Sheet
HS2V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 DC 4V hall current detection sensor 500A more... Products Data Sheet
HS2V 500 H02	500	±1500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Solar panel battery charge controller using current sensor more... Products Data Sheet
HS3V 500 H00	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect open loop current sensor manufacturer for high efficiency power electronics more... Products Data Sheet
HS3V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial current transducer supplier for energy storage PCS，BMS more... Products Data Sheet
HS1V 600 H02	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 600 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop current sensor 600a hall effect linear use case for multi-phase inverters more... Products Data Sheet
AN3V 10 PB30	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High permeability Hall effect transducer measure AC/DC current for EV charging pile more... Products Data Sheet
AN3V 10 PB31	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 HLSR current transducer in power electronics, motor drives, and renewable energy systems. more... Products Data Sheet
AN3V 10 PB51	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 SMD PCB mount current sensor for industrial more... Products Data Sheet
AN3V 16 PB30	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Professional hall effect current sensor manufacturer for fast switching applications more... Products Data Sheet
AN3V 16 PB31	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size renewable energy current transducer 10A-120A for high efficiency SMPS more... Products Data Sheet
AN3V 16 PB51	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Industrial current transducer alternative supplier current transducer for VFD systems more... Products Data Sheet
AN3V 20 PB30	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Cost effective Hall effect current sensor for AI server PSU more... Products Data Sheet
AN3V 20 PB31	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current Sensor 20A 3.3V 2.5us PCB HLSR-P more... Products Data Sheet
AN3V 20 PB51	20	±50	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 20 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 HLSR Industrial Current Sensors more... Products Data Sheet
AN3V 32 PB30	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 The different types of available current sensors and their typical use cases more... Products Data Sheet
AN3V 32 PB31	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor selection guide for motor control applications and how to test current sensor more... Products Data Sheet
AN3V 32 PB51	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect sensor ensure for battery efficiency and protecting against current overloads more... Products Data Sheet
AN3V 40 PB30	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How to replace a hall effect transducer for current measurement more... Products Data Sheet
AN3V 40 PB31	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size open cloop supply voltage 3.3V linearity ±0.5 for 250khz for industrial applications more... Products Data Sheet
AN3V 40 PB51	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Electronic components PCB board mounting open cloop hall current sensor for SMPS and UPS more... Products Data Sheet
AN3V 50 PB31	50	±125	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 50 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage+3.3V open loop current sensor based on Hall effect PCB installation more... Products Data Sheet
AN3V 50 PB51	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Good Iinear variable differential current sensor active speed sensor wide measure range10A 16A 20A 32A 40A 50A 80A 100A 120A more... Products Data Sheet
AN3V 80 PB35	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How integrated current sensors can open new perspectives for system more... Products Data Sheet
AN3V 80 PB31	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 UPS power HLSR current sensor price more... Products Data Sheet
AN3V 80 PB51	80	±200	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 80 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size height 8.7mm open loop 250kHz bandwidth supply voltage+5V for MPPT more... Products Data Sheet
AN3V 100 PB35	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 3.3V hall effect current sensor for combining manifolds more... Products Data Sheet
AN3V 100 PB31	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High precision magnetic sensor interfacing ASIC more... Products Data Sheet
AN3V 100 PB51	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How integrated current sensors can open new perspectives for system design. more... Products Data Sheet
AN3V 120 PB35	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor 80-200A AC/DC Input/output suitable for industrial power supply with an aperture of ±0.3 mm more... Products Data Sheet
AN3V 120 PB31	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor 3.3V AC/DC 10A 16A 20A 32A 40A 50A 80A 100A 120A electrical Current Transducer analog output more... Products Data Sheet
AN3V 120 PB51	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current transducer sensor 120A range 80mV/A sensitivity PCB mount for motor drives UPS more... Products Data Sheet
HS1V 600 H08	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm + HC-VH-T
HS1V 600 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC frequency transducer capacitive open loop hall busbar sensor more... Products Data Sheet
HS1V 600 H06	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH-4A
HS1V 600 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High precision open loop linear variable differential transformer current sensor ±1% more... Products Data Sheet
HS1V 600 H05	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		MOLEX 5045-04A
HS1V 600 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 How to use a current sensor? more... Products Data Sheet
HS1V 600 H03	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 500mm
HS1V 600 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Electronic components current sensor 600A 1 channel hall effect open loop bidirectional For AC/DC through hole 20.4mm×10.4mm more... Products Data Sheet
HS1V 600 H04	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		XH2.54-4P
HS1V 600 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 How electric current senso works? more... Products Data Sheet
HS1V 600 H09	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm		RVV40.2mm0.2mm - 700mm
HS1V 600 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High efficiency 600A current sensor for solar wind hybrid inverter more... Products Data Sheet
HS2V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Smart grid 600A hall effect current transducer for renewable energy more... Products Data Sheet
HS2V 600 H02	600	±1800	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 600 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Automation and controls sensors and switches for automation current sensors more... Products Data Sheet
HS3V 600 H00	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hybrid Battery Pack Current Sensing DC4V Hall Effect Current Sensor more... Products Data Sheet
HS3V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC current sensor factory price 600A output current sensor from China current sensor supplier more... Products Data Sheet
HS2V 800 H00	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Customizable high reliability compliant industrial output analog 800A current sensor for industrial applications more... Products Data Sheet
HS2V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 800-S Hall effect open loop current sensor ±15V 20mA Bidirectional chassis mount more... Products Data Sheet
HS2V 800 H02	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 800 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Replacement HAT 800-S HAT series current transformer, 800A input, 40.5mm×32.5mm, 15 V for wind energy inverter more... Products Data Sheet
HS3V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High-performance open loop Hall effect current sensors designed for industrial power electronics and renewable energy systems more... Products Data Sheet
HS2V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Wide current range 200-1500A core components of power conversion equipment more... Products Data Sheet
HS2V 1000 H02	1000	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 1000 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary nominal rms current 1000 A ±15 V supply ±4 V output −40 °C to +105 °C CT current transformer more... Products Data Sheet
HS3V 1000 H00	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 1000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High resistance 500 A to 3000 A primary hole 64mm×21mm ±4 V output 1000A current sensor more... Products Data Sheet
HS3V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Professional current sensors supplier more... Products Data Sheet
HS2V 1200 H00	1200	±2500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		MOLEX 5045-04A
HS2V 1200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Buy reliable current sensors. compact design, high accuracy, wide application in power supply, inverter and industrial fields. factory direct wholesale. more... Products Data Sheet
HS2V 1200 H01	1200	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 1200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial AC DC pulse current sensor 200A to 1500A IEC standard current transducer RVVP 4×0.3mm² shielded wire more... Products Data Sheet
HS2V 1200 H02	1200	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 1200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop 200A-1500A current sensor secondary connection XH-4A cost-effective alternative to HAT-S series more... Products Data Sheet
HS2V 1500 H01	1500	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		RVVP 40.3mm0.3mm- 1500mm
HS2V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial grade easy installation current sensor AC DC current transducer output line length 1500 ±20mm more... Products Data Sheet
HS2V 1500 H02	1500	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm		XH-4A
HS2V 1500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compact current sensor module precise current transducer 200A -1500A for renewable energy systems more... Products Data Sheet
HS3V 1500 H01	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 In solar and wind power generation systems, current sensors are used to optimize energy conversion and ensure system safety. more... Products Data Sheet
HS3V 2000 H01	2000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 2000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Original factory agent of current sensor offers domestic alternative design solution services. more... Products Data Sheet
HS3V 2500 H00	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		MOLEX 5045-04A
HS3V 2500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 What are major types of current sensors more... Products Data Sheet
HS3V 2500 H01	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 2500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC/DC current transducer more... Products Data Sheet
HS3V 3000 H01	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 3000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 3000A current sensor for large-scale energy storage projects and industrial power systems more... Products Data Sheet
CS1V 200 P00	200	±450	5	2.5±0.625V	<1.1	>200	-40~85	NA	+
CS1V 200 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 150 P00	150	±270	5	2.5±0.625V	<1	>200	-40~85	NA	+
CS1V 150 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 100 P00	100	±270	5	2.5±0.625V	<1	>200	-40~85	NA	+
CS1V 100 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 80 P00	80	±270	5	0.25...4.75V	<1	>200	-40~85	NA	+
CS1V 80 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CR1V 6 PB02	6	±12	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 6 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Reliable data output voltage current sensor to ensure accurate system status monitoring and stable operation more... Products Data Sheet
CR1V 6 PB03	6	±12	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 6 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 IEC 60664-1 certified current transducer PCB mount current sensor for industrial test equipment more... Products Data Sheet
CR1V 6 PB04	6	±20	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 6 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 CAT III reinforced insulation current transducer compact PCB mount isolated current sensor for BMS manufacturer more... Products Data Sheet
CR1V 15 PB02	15	±30	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 15 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Factory direct high precision measurement CTs more... Products Data Sheet
CR1V 15 PB03	15	±30	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 15 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Current sensor CL 15A AC/DC compact design, easy to install PCB for servo motor drives more... Products Data Sheet
CR1V 15 PB04	15	±51	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 15 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 China supplier single power supply 5V hall effect DC/AC 6-50A current sensor for welding machine power supply more... Products Data Sheet
CR1V 25 PB02	25	±50	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 25 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 China factory price hall effect current measurement 500A closed loop DC AC hallcurrent sensor manufacturer more... Products Data Sheet
HK1A 400 H00	400	±480	12	4...20mA	±1.0	DC	-25~85	Ø41.3		2EDGV-3.81-4P
HK1A 400 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Clamp-on current transformer more... Products Data Sheet
HK3A 50 H20	±50	±50	12	4...20mA	±1.0	DC	-25~85	Ø21.6		KF2EDGV-3.81-4P
HK3A 50 H20 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Output 12±8mA 12V（DC）Power supply Proportional output Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 50A current transducer clamp type for battery pack current detection HVAC more... Products Data Sheet
CR1V 25 PB04	25	±85	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 25 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 High precision hall effect current sensor for new energy combiner box measurement more... Products Data Sheet
CR1V 50 PB03	50	±100	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 50 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current transducer PCB type for EV Charger PV Solar Motor UPS PLC DSP more... Products Data Sheet
CR1V 50 PB04	50	±150	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 50 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Understanding basics current sensing circuits more... Products Data Sheet
CR1V 75 PB05	75	±180	5	2.5V	±1.0	200	-40~105	NA	+
CR1V 75 PB05 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Current sensor circuit diagram more... Products Data Sheet
CN1A 25 PB01	25	±36	±12	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Alternative supplier for current transducers LA 25-np series more... Products Data Sheet
AR1A 50 H00	50	±50	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 50 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor module connection current transformer in single line diagram more... Products Data Sheet
AR1A 50 H01	50	±50	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 50 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor circuit for microcontroller current sensor 50A working principle current sensor pinout more... Products Data Sheet
AN1V 300 PB501	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 New original Hall sensor available in stock replace ACS758 current sensor more... Products Data Sheet
AN1V 300 PB502	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Bidirectional AC/DC +/-300 amp isolated current sensor module ACS758 +/-300A more... Products Data Sheet
CS3A 200 P21	200	±300	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 200 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Professional manufacturer equivalent to S25P150D15Y board mount closed-loop hall effectcurrent sensor for AI data center and power electronics more... Products Data Sheet
CN2A 25 PB02	25	±55	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 25 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Main application fields of closed loop current snesor for UPS, BMS, servo, wind inverter more... Products Data Sheet
CN2A 40 PB02	40	±90	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 40 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 PCB mount hall sensor equivalent to LAH-P high linearity hall transducer for battery management system BMS fast response 0.5μs more... Products Data Sheet
CN2A 50 PB02	50	±90	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 50 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Panel mounted EV battery BMS tester current sensor more... Products Data Sheet
CR1A 50 H00	50	±70	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 50 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC DC current transducer for inverter more... Products Data Sheet
CR1A 100 H02	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 100 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Isolated hall effect current sensor primary current 100A for new energy vehicle more... Products Data Sheet
CR1A 100 H04	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 100 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Special through-core current transformer for frequency converter more... Products Data Sheet
CR1A 200 H02	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Domestic high precision current transducer 300±20mm RVV cable current transducer alternative to LT x08-S7 series more... Products Data Sheet
CR1A 200 H04	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 200 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Molex connector closed loop hall current sensor ±200A fast response 0.5μs for industrial converter more... Products Data Sheet
CR1A 300 H04	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 300 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compact mountable 300A hall current sensor with molex connector swapable LT x08-S7 series more... Products Data Sheet
CM1A 100 H01	100	±200	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 100 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary busbar through hole alternative LF 205/210-Series 100A current sensor easy installation more... Products Data Sheet
CM1A 200 H02	200	±420	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex Minifit 5566
CM1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary hole Φ15.6 mm global leader in current measurement solutions more... Products Data Sheet
CM4A 1000 H06	1000	±2700	±15...24	±200...540mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H06 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Choosing the right current sensor type depends on the application’s requirements for accuracy, range, installation method, and integration needs more... Products Data Sheet
CM5A 2000 H01	2000	±3850	±15...24	±400...770mA	±0.3	150	-40~85	Ø57.5		5566-4A
CM5A 2000 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low thermal drift compatible LF 2005/2010-series hall effect current sensor 100kHz bandwidth SMPS application ±2000A 6kV isolation 150kHz bandwidth more... Products Data Sheet
CM5A 2000 H21	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		2EDGV-5.08-3P
CM5A 2000 H21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Drop-in replacement LF 2005/2010-series hall effect transducers for MW UPS & large scale energy storage more... Products Data Sheet
FR7V 0.01 H00	0.01	±0.017	±15	±5V	±1.0	DC	-10~70	Ø12		KF2EDG 3.81MM 4P
FR7V 0.01 H00 Current sensor based on fluxgate technology Output voltage Insulating plastic case recognized according to UL 94-V0（Blue） High linearity Very low zero temperature drift Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Very low offset drift over temperature photovoltaic inverter (no transformer type) leakage current measurement current transducer more... Products Data Sheet
CS3A 50 P00	50	±90	±12...15	±50...90mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Electrical parameter table accuracy ±0.3% 150kHz bandwidth response time 0.5μs mechanical dimension drawing primary busbar 13.5x10mm outline size more... Products Data Sheet
CS3A 50 P21	50	±100	±12...15	±25...37.5mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor dimension diagram secondary pin layout recommended PCB hole Φ1.0mm mounted on energy storage PCS DC busbar current detection more... Products Data Sheet
CS3A 100 P21	100	±150	±12...15	±50...75mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Recommended PCB hole high accuracy primary nominal rms current ±100A for battery management frequency bandwidth 150 kHz for power supplies for welding applications more... Products Data Sheet
CS3A 100 P51	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current transducer components in stock more... Products Data Sheet
CS1V 100 PB00	100	±270	5	2.5±0.625	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 100 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 150 PB00	150	±270	5	2.5±0.625	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 150 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 200 PB00	200	±450	5	2.5±0.625V	<1.1	>200	-40~85	4 x φ5.2 mm	+
CS1V 200 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
AN3V 150 PB55	150	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 150 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary current direction marking diagram open loop bidirectional current sensor for general power electronics more... Products Data Sheet
AN3V 180 PB55	180	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 180 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Customized current automotive grade current sensor for circuit breaker more... Products Data Sheet
AN3V 200 PB55	200	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 200 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop current sensor transducer 200A more... Products Data Sheet
AN3V 150 PB35	150	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 150 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Industrial combining manifold current measurement hall sensor alternative to LA17P S05 open loop current transducer for industrial converters more... Products Data Sheet
AN3V 180 PB35	180	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 180 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 250kHz bandwidth 2.5µs fast response time current transducer alternative HLSR more... Products Data Sheet
AN3V 200 PB35	200	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 200 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 200A Ultra thin HLSR 8.7mm height galvanic isolated current detector -40 to 105℃ wide temperature more... Products Data Sheet
HK5V 1000 H20	±1000	±1500	±12...15	±4V	±1.0	20	-25~85	16mm×64mm		2EDG-4P-3.81
HK5V 1000 H20 Open loop sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Double Hall design Open installation Battery pack current detection Smart power grid Standards: IEC 60664-1:2020 IEC 62109-1:2010 IEC 61800-5-1:2022 Fast response 5μs analog output current sensor for wind energy inverter more... Products Data Sheet
VN4A 500 M15	500V	±750V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 500 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 Good linearity ±0.5% voltage transducer for single phase industrial inverter monitoring more... Products Data Sheet
VN4A 750 M15	750V	±1125V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 750 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 No insertion loss primary busbar ±12V ±24V current sensor for battery management system more... Products Data Sheet
VN4A 1500 M15	1500V	±2250V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 1500 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 Optimized delay time high precision voltage sensor for battery chargers more... Products Data Sheet
VN4A 2000 M15	2000V	±3000V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 2000 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 Supply voltage 15V 24V wide frequency bandwidth voltage transducer more... Products Data Sheet
AT4V 50 H00	50	±150	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 50 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 75 H00	75	±225	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 75 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 100 H00	100	±300	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 100 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 150 H00	150	±450	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 150 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 200 H00	200	±600	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 200 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CS1V 250 P00	250	±380	5	2.5±0.625V	<1.1	>200	-40~85	21x11.5 mm	+
CS1V 250 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 300 P00	300	±600	5	2.5±0.9375V	<0.8	>200	-40~85	21x11.5 mm	+
CS1V 300 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 80 PB00	80	±270	5	2.5±0.625V	<1	200	-40~85	NA	+
CS1V 80 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
FR1C 300 H1252A	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H1252A	500	±600	12	CAN	±0.3~0.5		-40~85	Φ24.4mm		TE 1473672-1
FR1C 500 H1252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H1152A	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
CM9A 1500 H00	1500	±2250	±15...24	±300mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 1500 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 700 H2252A	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4mm		TE 1473672-1
FR1C 700 H2252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
CM9A 3500 H00	3500	±4500	±15...24	±700mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 3500 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 5000 H00	5000	±5500	±24	±1000mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 5000 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 5000 H01	5000	±5500	±24	±1000mA	±0.1	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 5000 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 500 M00	500	±750	±15...24	±100mA	±0.3	100	-45~85	Ø120		M6
CR8A 500 M00 High accuracy 500A closed loop HALL current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 1000 M00	1000	±1500	±15...24	±200mA	±0.3	100	-45~85	Ø120		M6
CR8A 1000 M00 High accuracy 1000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 2000 M00	2000	±3000	±15...24	±400mA	±0.3	100	-45~85	Ø120		M6
CR8A 2000 M00 High accuracy 2000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 4000 M00	4000	±6000	±15...24	±800mA	±0.3	100	-45~85	Ø120		M6
CR8A 4000 M00 High accuracy 4000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 5000 M00	5000	±6000	±24	±1000mA	±0.3	100	-45~85	Ø120		M6
CR8A 5000 M00 High accuracy 5000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 60 PB00	60	±180	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 60 PB00 60A open loop current sensor using the Hall Effect Supply voltage ±12...±15V Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 500 H1352A	500	±530	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H1352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H1352A	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
CM5A 2000 H41	2000	±3500	±15...24	±400mA	±0.5	100	-40~85	Φ57.5mm or 61mm◊21mm		M6
CM5A 2000 H41 2000A high accuracy current sensor Closed loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM8A 1000 H01	1000	±2400	±15...24	±200mA	±0.4	DC...100	-40~85	Φ42mm		M6
CM8A 1000 H01 Closed loop（compensated）current sensor using theHall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 500 H2252A	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
AN6V 20 PB50	20	±50	5	±2V	±0.8	250	-40~105	NA	+
AN6V 20 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 32 PB50	32	±80	5	±2V	±0.8	250	-40~105	NA	+
AN6V 32 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 40 PB50	40	±100	5	±2V	±0.8	250	-40~105	NA	+
AN6V 40 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 50 PB50	50	±125	5	±2V	±0.8	250	-40~105	NA	+
AN6V 50 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.005 P01	5mA	8mA	±12...15V	3.3V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.005 P01 AC current sensor based on transformer technology DC voltage output 3.3V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.01 P01	10mA	15mA	±12...15V	3.3V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.01 P01 AC current sensor based on transformer technology DC voltage output 3.3V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.05 P01	50mA	75mA	±12...15	3.3V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.05 P01 AC current sensor based on transformer technology DC voltage output 3.3V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.005 P02	5mA	8mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.005 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.01 P02	10mA	15mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.01 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.05 P02	50mA	80mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.05 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
TR3V 0.20 P02	200mA	250mA	±12...15	5V	±0.5	50	-40~85	Φ12mm	+
TR3V 0.20 P02 AC current sensor based on transformer technology DC voltage output 5V Insulating plastic case recognized according to UL94-V0 High Accuracy Very low offset drift over temperature Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 700 H1252A	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
AR4V 200 P00	200	±300	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Φ 22	+
AR4V 200 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR4V 400 P00	400	±600	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Φ 22	+
AR4V 400 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR4V 600 P00	600	±900	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Ø22	+
AR4V 600 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR4V 800 P00	800	±1200	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Ø22	+
AR4V 800 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS3V 1200 H01	1200	±3600	±15	±4V	±1.0	25	-40~85	64 x 21 mm		XH-4A
HS3V 1200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 In solar and wind power generation systems, current sensors are used to optimize energy conversion and ensure system safety. more... Products Data Sheet
FR1C 700 H1352A	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H1352B	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1352B Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H1352B	500	±530	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H1352B Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H1352B	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1352B Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H2352A	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H2352A	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H2352A	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H2352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H2322C	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2322C Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 250 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H2322C	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2322C Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 250 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H2322C	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H2322C Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 250 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
