Voltage sensors

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth(kHz)	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
VN2A 1100 PB00	1100V	±1500V	±12...15	±25mA	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 1100 PB00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Supply voltage 12V 15V Primary nominal rms voltage 800V 1100V voltage sensor more... Products Data Sheet
VN2A 1100 PB03	1100V	±1500V	±15	±4V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 1100 PB03 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL 94-V0 Small size High accuracy Supply voltage:±15V Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
VN2A 1100 PB20	1100V	±1100V	±12	±4V	±0.6		-40~85	NA		XH-3A
VN2A 1100 PB20 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Industrial voltage sensor for power supply monitoring system more... Products Data Sheet

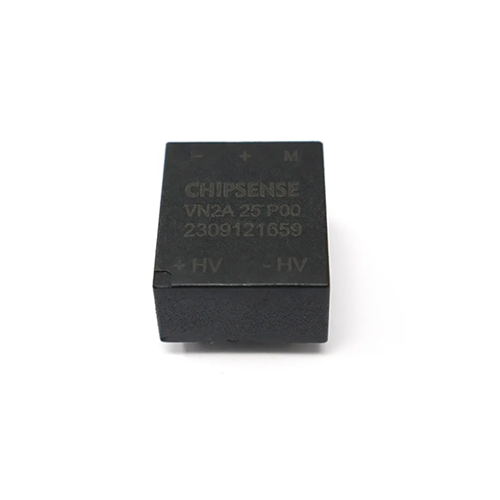

VN2A 25 P00	10mA	±14mA	±15	±25mA	±0.6		-40~85	NA	+
VN2A 25 P00 Closed loop (compensated) voltage sensor using the Hall Effect. Insulating plastic case recognized according to UL94-V0. No insertion loss. Small size. High accuracy. Very good linearity. Very low offset drift over temperature. High output frequency bandwidth. Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Voltage sensor measures and monitors voltage levels within an object, detecting either AC or DC voltage. It inputs voltage and outputs various forms such as switches, analog voltage signals, current signals, or audible signals. more... Products Data Sheet
VN2A 25 P01	5mA	7mA	24	±25mA	±0.8		-40~85	NA	+
VN2A 25 P01 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Single power supply:+24V No insertion loss Small size High accuracy Very good linearity Very low offset drift over temperature High output frequency bandwidth Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor is a device used for detecting and measuring voltage. It converts the measured voltage into a manageable signal, enabling monitoring, control and protection functions. more... Products Data Sheet
VN2A 25 P02	10mA	±14mA	24	±25mA	±0.8		-40~85	NA	+
VN2A 25 P02 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 No insertion loss Small size High accuracy Very good linearity Very low offset drift over temperature High output frequency bandwidth Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor used for measuring and monitoring the voltage level in an object. The voltage sensor can determine the level of either alternating current voltage or direct current voltage. more... Products Data Sheet
VN2A 400 PB02	400V	±400V	±12	±5V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 400 PB02 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Supply voltage +12V Very good linearity Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Measure the level of alternating current and/or the level of direct current voltage PCB hole Φ1.2 Output nominal rms current 25mA more... Products Data Sheet
VN2A 800 PB00	800V	±1400V	±12...15	±25mA	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 800 PB00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Very good linearity Very low offset drift over temperature Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor ±12V ±15V ±0.6% accuracy closed loop hall effect for Industrial drives more... Products Data Sheet
VN2A 800 PB01	800V	±1400V	24	4V	±0.6		-40~85	NA		3 Faston 6.3 x 0.8mm
VN2A 800 PB01 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL94-V0 Small size High accuracy Supply voltage +24V Very good linearity Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High quality new and original automobile current sensor voltage sensor more... Products Data Sheet
VN3A 6400 M00	6400V	±9600V	±15...24	±80mA	±1.0		-20~70	NA		M5 threaded bolts
VN3A 6400 M00 Closed loop (compensated) voltage sensor using the Hall Effect Insulating plastic case recognized according to UL 94-V0 Mutual shielding between the primary and secondary Primary side resistance R1 integrated into the sensor High accuracy Good linearity Very low offset drift over temperature Resistant to strong external interference Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Voltage sensor used for monitoring voltage levels in electrical grids and substations more... Products Data Sheet
VN4A 1500 M15	1500V	±2250V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 1500 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
VN4A 2000 M15	2000V	±3000V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 2000 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
VN4A 500 M15	500V	±750V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 500 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
VN4A 750 M15	750V	±1125V	±15...24	50mA	±1.0	14	-40~85	NA		M5 thread screw
VN4A 750 M15 Closed loop (compensated) voltage sensor using the Hall Effect. Galvanic insulation between the primary and secondary Insulating plastic case recognized according to UL 94-V0 Good linearity Very low offset drift over temperature Resistant to strong external interference Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 EN 50155:2017 more... Products Data Sheet
