C Series Closed loop HALL sensor

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth(kHz)	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
CM1A 100 H01	100	±200	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 100 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary busbar through hole alternative LF 205/210-Series 100A current sensor easy installation more... Products Data Sheet
CM1A 200 H00	200	±420	±12...15	±100...210mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Professional Frequency Broadband 200kHz Response time 0.5µs High-Frequency Transducers Primary hole Φ23.0mm Connection of secondary MOLEX 5045-04A more... Products Data Sheet
CM1A 200 H02	200	±420	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex Minifit 5566
CM1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary hole Φ15.6 mm global leader in current measurement solutions more... Products Data Sheet
CM2A 300 H00	300	±500	±12...20	±150...250mA	±0.3	100	-40~85	Ø20		Molex 6410
CM2A 300 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall Effect Current transducer supply voltage ±12 ±20V Input 300A ct Current Transformer dc Current Sensor more... Products Data Sheet
CM3A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		Molex 6410
CM3A 500 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measures direct current flow, typically using the Hall effect (detecting magnetic fields) or a shunt resistor providing isolated, accurate readings for applications like renewable energy, electric vehicles, and power monitoring more... Products Data Sheet
CM3A 500 H01	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		JST B3P VH
CM3A 500 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall Current Measurement Device 500A Low Current Consumption Ambient Operating Temperature -40℃~85℃ Connection of Secondary JST B3P VH more... Products Data Sheet
CM4A 1000 H00	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current Transducers Supplier high Voltage Measuring Range 1000A Closed-loop Current Sensors Primary Hole Φ38mm Comprehensive monitoring and control of the rail transit system have been achieved, providing data support for the application of intelligent driving. more... Products Data Sheet
CM4A 1000 H03	1200	±1800	±24	±300...450mA	±0.4	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H03 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High Accuracy Wide Applications Fileds Closed-loop Hall Effect Current Sensor 1000A Supply Voltage ±24 Fast Response Time 0.5 µs Monitor the health condition of the track and detect cracks, wear and deformation more... Products Data Sheet
CM4A 1000 H05	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H05 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Professional High-Frequency Transducer Supplier Supply Voltage ±15V ±24V High Linearity ±0.1 Good Accuracy ±0.3 Primary Though Hole Φ38mm Improve the operational efficiency, safety and maintainability of the rail transit system more... Products Data Sheet
CM4A 1000 H06	1000	±2700	±15...24	±200...540mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H06 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Choosing the right current sensor type depends on the application’s requirements for accuracy, range, installation method, and integration needs more... Products Data Sheet
CM5A 2000 H01	2000	±3850	±15...24	±400...770mA	±0.3	150	-40~85	Ø57.5		5566-4A
CM5A 2000 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low thermal drift compatible LF 2005/2010-series hall effect current sensor 100kHz bandwidth SMPS application ±2000A 6kV isolation 150kHz bandwidth more... Products Data Sheet
CM5A 2000 H20	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		JST B3P VH
CM5A 2000 H20 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall Effect DC Current Measurement Device Current Transducer, 2000A input, 400 output,±15 ±24VDC supply, 57.5mm Aperture Up To 0.3% Accuracy Reliable more... Products Data Sheet
CM5A 2000 H21	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		2EDGV-5.08-3P
CM5A 2000 H21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Drop-in replacement LF 2005/2010-series hall effect transducers for MW UPS & large scale energy storage more... Products Data Sheet
CM5A 2000 H41	2000	±3500	±15...24	±400mA	±0.5	100	-40~85	Φ57.5mm or 61mm◊21mm		M6
CM5A 2000 H41 2000A high accuracy current sensor Closed loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

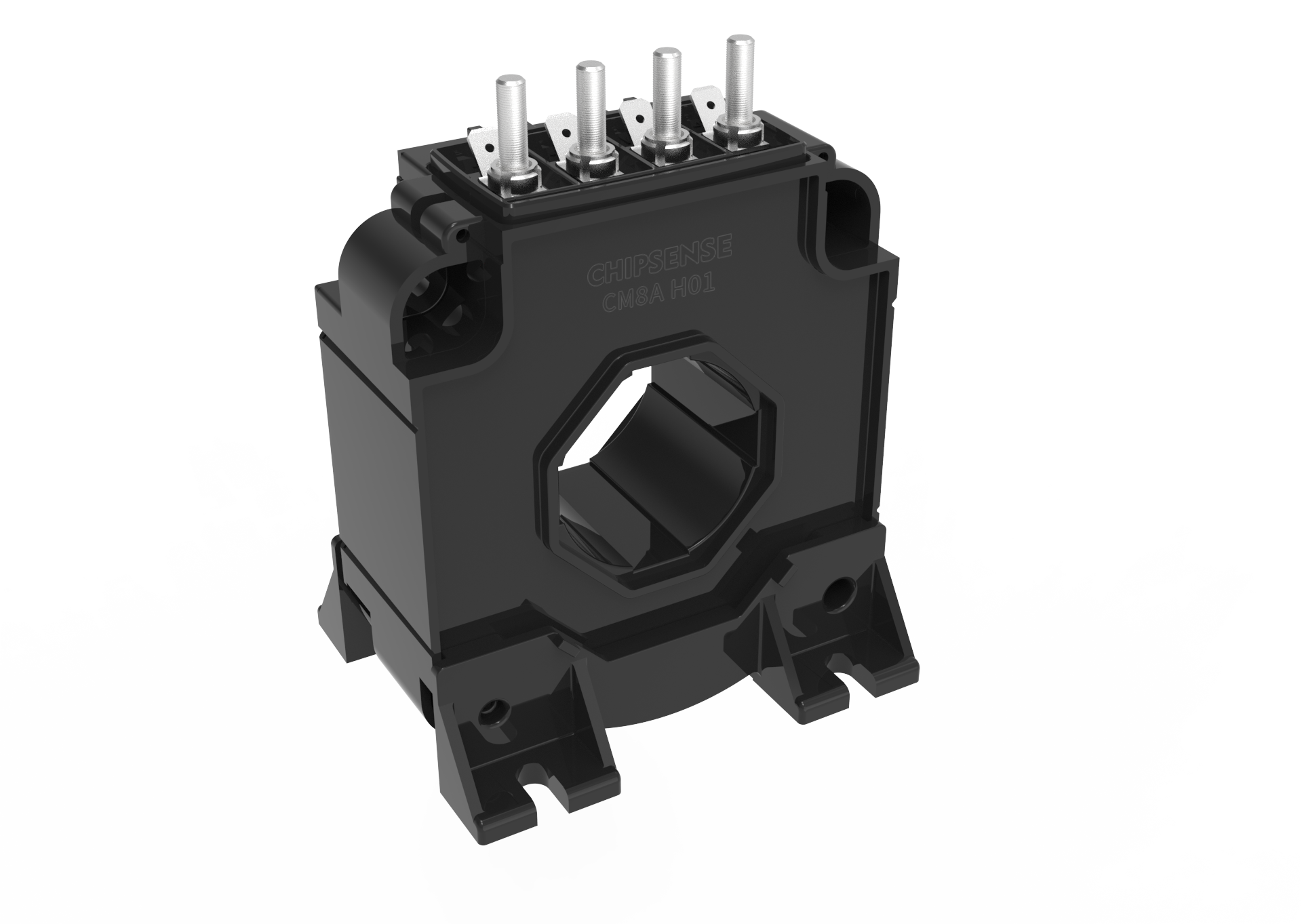

CM8A 1000 H01	1000	±2400	±15...24	±200mA	±0.4	DC...100	-40~85	Φ42mm		M6
CM8A 1000 H01 Closed loop（compensated）current sensor using theHall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 1500 H00	1500	±2250	±15...24	±300mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 1500 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 3500 H00	3500	±4500	±15...24	±700mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 3500 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

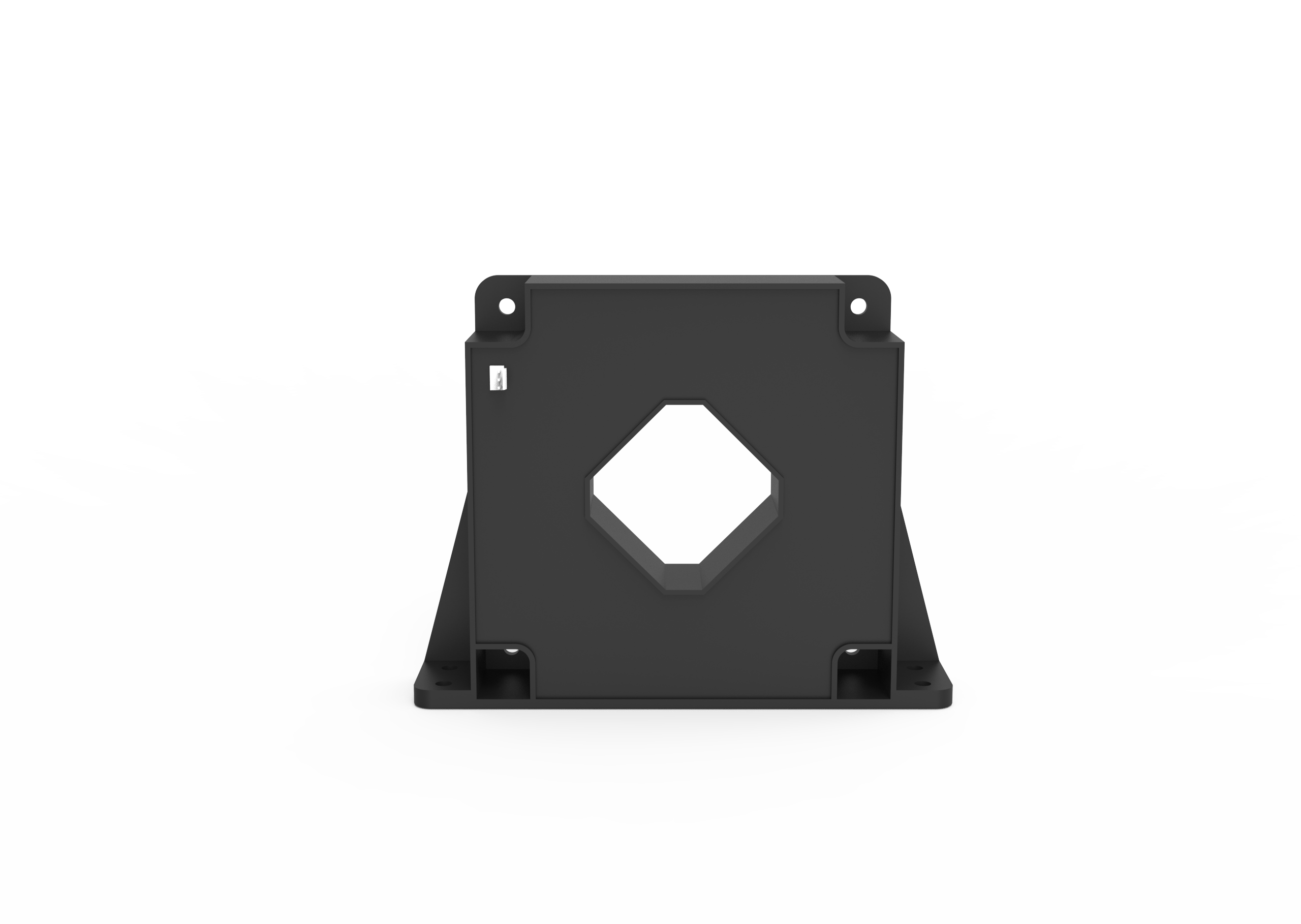

CM9A 5000 H00	5000	±5500	±24	±1000mA	±0.3	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 5000 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CM9A 5000 H01	5000	±5500	±24	±1000mA	±0.1	100	-40~85	Φ94mm or 95mm×25mm		JST-B3PS-VH
CM9A 5000 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic Insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CN1A 25 PB00	25	±36	±15	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial Hall effect current sensors for UPS more... Products Data Sheet
CN1A 25 PB01	25	±36	±12	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 100 PB01	100	±160	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 100 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 A Hall current sensor measures electrical current indirectly by detecting the magnetic field it generates, using the Hall effect: current flows through a conductor (often a lead frame), creating a proportional magnetic field that a Hall element senses and converts into an isolated voltage output, providing non-intrusive measurement ideal for high currents and electrical isolation in applications like electric vehicles and industrial machines. more... Products Data Sheet
CN2A 25 PB02	25	±55	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 25 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Main application fields of closed loop current snesor for UPS, BMS, servo, wind inverter more... Products Data Sheet
CN2A 40 PB01	40	±110	±12...15	±20mA	±0.5	200	-40~85	NA	+
CN2A 40 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020  IEC 61800-5-1:2022  IEC 62109-1:2010 Premium Made in China dc hall effect current tranducer more... Products Data Sheet
CN2A 40 PB02	40	±90	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 40 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 PCB mount hall sensor equivalent to LAH-P high linearity hall transducer for battery management system BMS fast response 0.5μs more... Products Data Sheet
CN2A 50 PB01	50	±110	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 50 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measurement:Current Nominal Value:50A Measuring Range:110A Supply voltage range:12-15V Accuracy:0.5% Technology:Closed loop Hall effect Mounting:PCB In the field of industrial applications, power electronic devices are essential for driving and control. As electrical systems become more complex, the requirements for precise coordination among power semiconductors, system controllers, mechanical components, and feedback units increase. Sensors can then obtain the necessary information from the load and provide it to the system to achieve this function more... Products Data Sheet
CN2A 50 PB02	50	±90	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 50 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Panel mounted EV battery BMS tester current sensor more... Products Data Sheet
CN2A 80 PB01	80	±160	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 80 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed-loop current sensors perform exceptionally well in applications requiring high-precision measurement, wide bandwidth and fast response times, and are suitable for industries such as manufacturing, energy and rail transit. more... Products Data Sheet

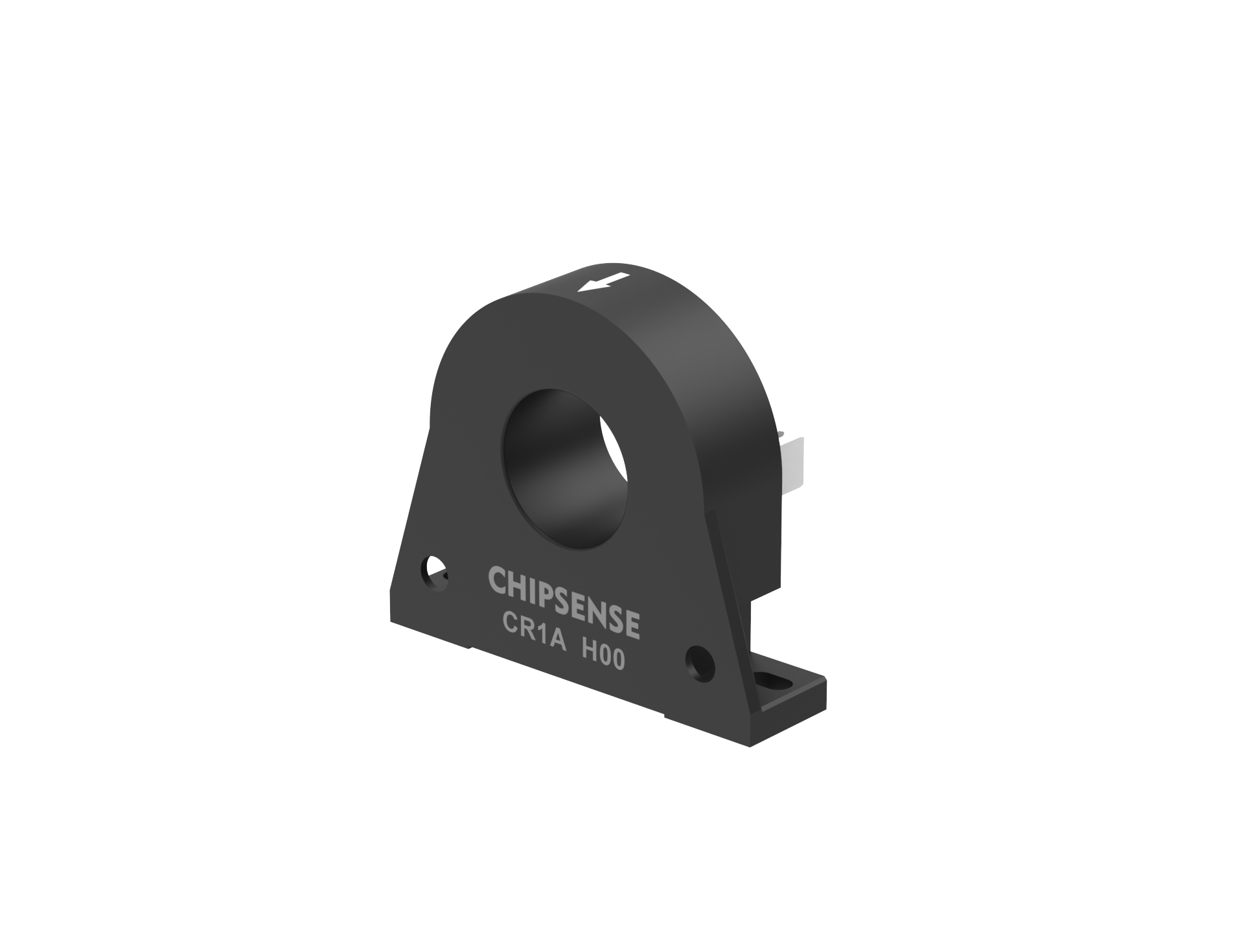

CR1A 100 H00	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 100 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 High Accurate Hall Effect AC/DC Current Sensor Output: 50 mA - 250 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: Ø 23 mm, Connector: Screw Hall effect current sensors are mainly used in industrial automation, telecommunications, public utilities, as well as in medical, aerospace, defense, consumer electronics, automotive, and railway industries for current monitoring, overcurrent fault detection, and power measurement. It features no insertion loss, low power consumption, compact package size, single/dual power supply, high precision, high sensitivity, electrical isolation and fast response time. more... Products Data Sheet
CR1A 100 H01	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 100 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Supply voltage ±12V ±15V JK126-500-3P connection more... Products Data Sheet

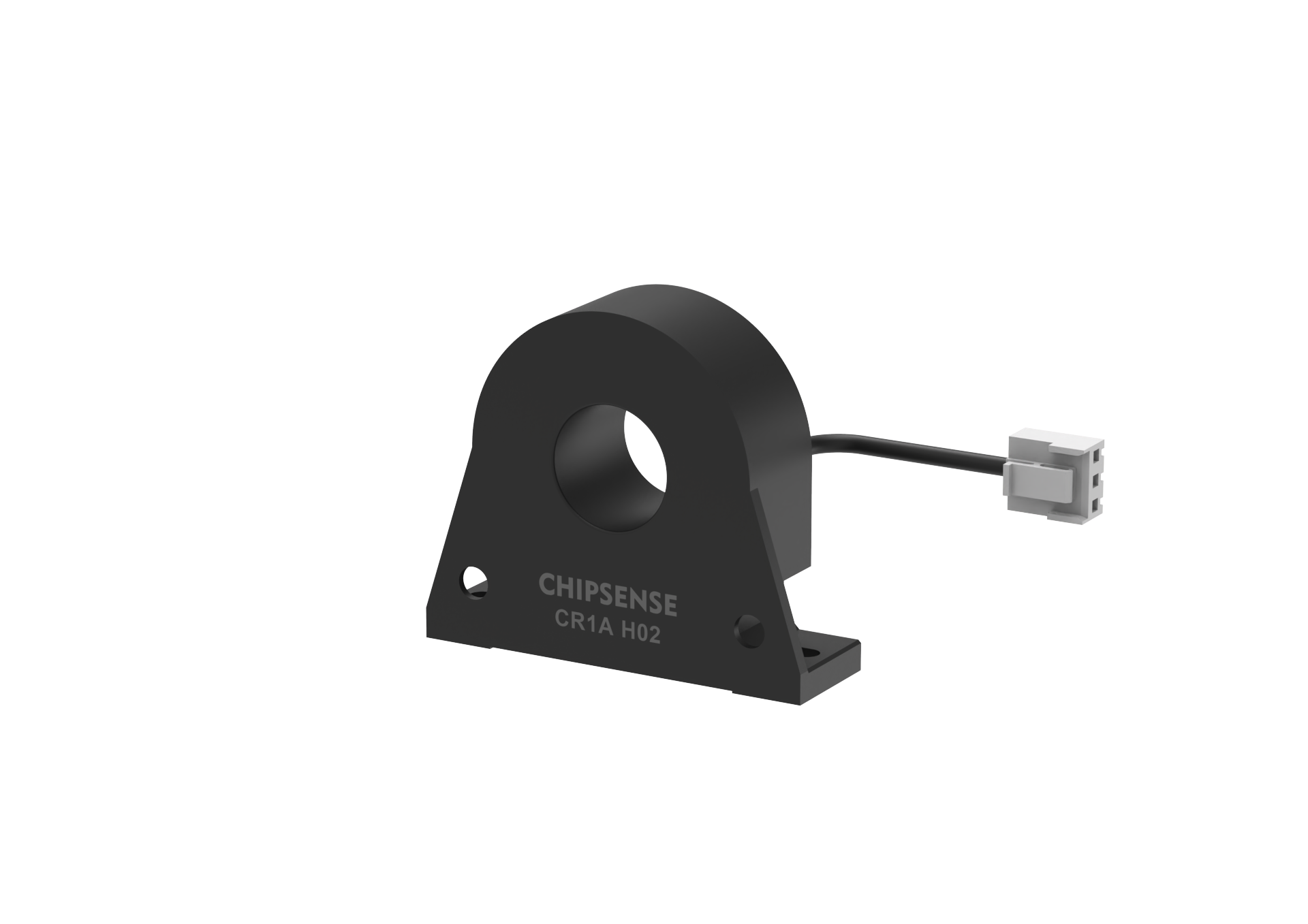

CR1A 100 H02	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 100 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Isolated hall effect current sensor primary current 100A for new energy vehicle more... Products Data Sheet
CR1A 100 H04	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 100 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Special through-core current transformer for frequency converter more... Products Data Sheet
CR1A 200 H00	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Magnetic Current sensors Suppliers Standard measured values: 200A Accuracy: 0.5% Measuring Range: 70A-500A Supply Voltage: 12 - 15V Secondary Signal : 100 mA more... Products Data Sheet
CR1A 200 H01	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 200 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 200A hall effect analog current sensor very good linearity for measurements High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H02	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Domestic high precision current transducer 300±20mm RVV cable current transducer alternative to LT x08-S7 series more... Products Data Sheet
CR1A 200 H04	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 200 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Molex connector closed loop hall current sensor ±200A fast response 0.5μs for industrial converter more... Products Data Sheet
CR1A 300 H00	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 300 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low Voltage Converter Low Current consumption High Accuracy Wide Input Output Range 100A-300A Current Transducer Primary hole Φ23.0mm Connection of secondary JK126-500-3P more... Products Data Sheet
CR1A 300 H01	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 300 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High Accurate Hall Effect AC/DC through-hole type Current Sensor, Output: ±150 mA AC/DC, Power Supply: ±12 V ~ ±15 V DC, Window: Ø23 mm, Connector: Molex 5045-04A more... Products Data Sheet
CR1A 300 H02	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 300 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect sensors analog circuit design measure Current Using Current Sensors more... Products Data Sheet
CR1A 300 H04	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 300 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compact mountable 300A hall current sensor with molex connector swapable LT x08-S7 series more... Products Data Sheet
CR1A 50 H00	50	±70	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 50 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC DC current transducer for inverter more... Products Data Sheet

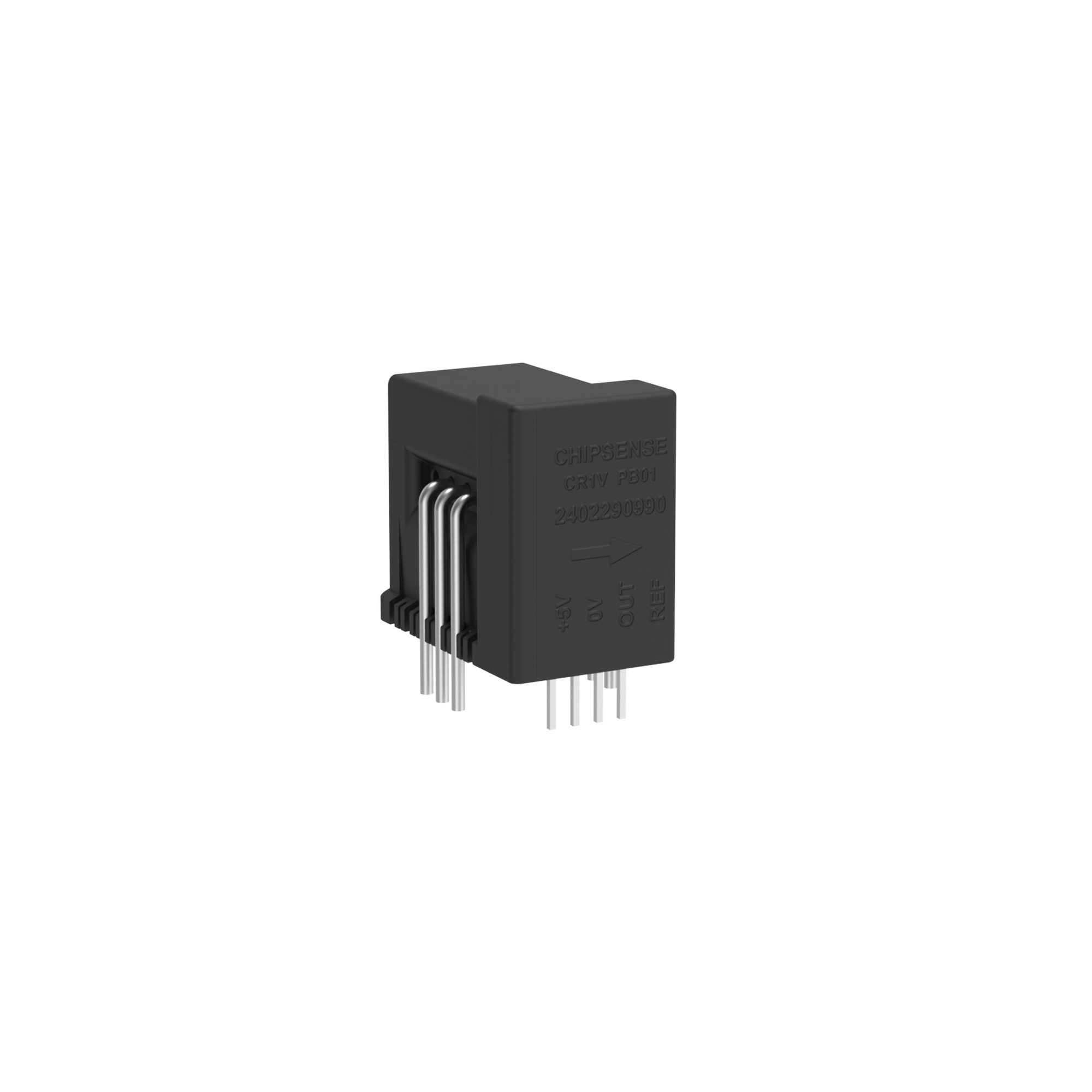

CR1V 15 PB02	15	±30	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 15 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Factory direct high precision measurement CTs more... Products Data Sheet
CR1V 15 PB03	15	±30	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 15 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Current sensor CL 15A AC/DC compact design, easy to install PCB for servo motor drives more... Products Data Sheet
CR1V 15 PB04	15	±51	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 15 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 China supplier single power supply 5V hall effect DC/AC 6-50A current sensor for welding machine power supply more... Products Data Sheet
CR1V 25 PB02	25	±50	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 25 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 China factory price hall effect current measurement 500A closed loop DC AC hallcurrent sensor manufacturer more... Products Data Sheet
CR1V 25 PB04	25	±85	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 25 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 High precision hall effect current sensor for new energy combiner box measurement more... Products Data Sheet
CR1V 50 PB03	50	±100	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 50 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current transducer PCB type for EV Charger PV Solar Motor UPS PLC DSP more... Products Data Sheet
CR1V 50 PB04	50	±150	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 50 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Understanding basics current sensing circuits more... Products Data Sheet
CR1V 6 PB02	6	±12	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 6 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Reliable data output voltage current sensor to ensure accurate system status monitoring and stable operation more... Products Data Sheet
CR1V 6 PB03	6	±12	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 6 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 IEC 60664-1 certified current transducer PCB mount current sensor for industrial test equipment more... Products Data Sheet
CR1V 6 PB04	6	±20	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 6 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 CAT III reinforced insulation current transducer compact PCB mount isolated current sensor for BMS manufacturer more... Products Data Sheet
CR1V 75 PB05	75	±180	5	2.5V	±1.0	200	-40~105	NA	+
CR1V 75 PB05 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Current sensor circuit diagram more... Products Data Sheet

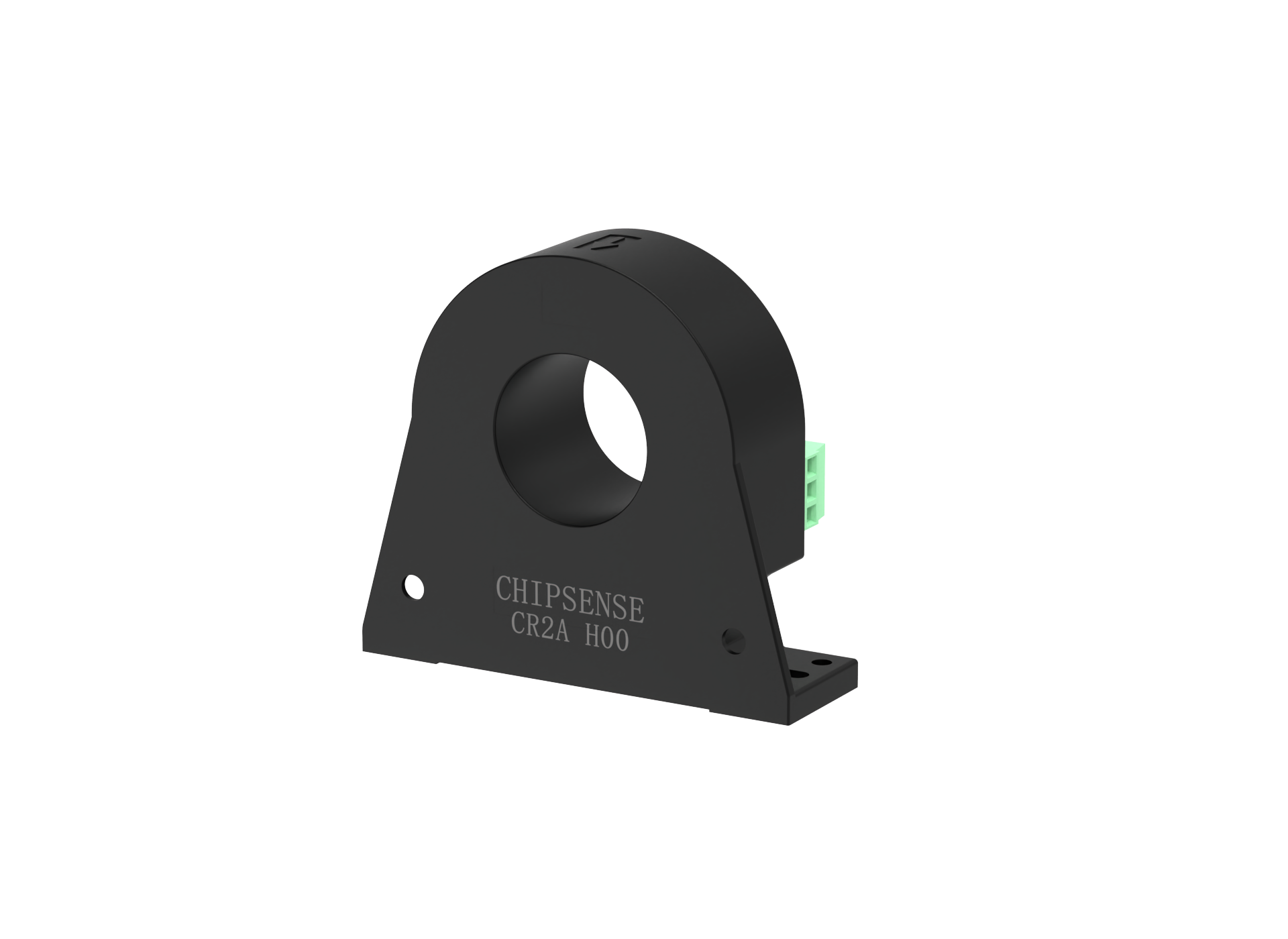

CR2A 400 H00	400	±600	±15...24	±100...150mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 400 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010Measuring Range 300A-500A Current Transducer Supplier Current Sensor Low Voltage ±15V ±24V,Response Time 0.5µs Ø35 mm more... Products Data Sheet
CR2A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 500 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Low Voltage High Accuracy Current Measurement Device 500A Closed-loop Current Sensors Connection Method JK126-500-3P more... Products Data Sheet

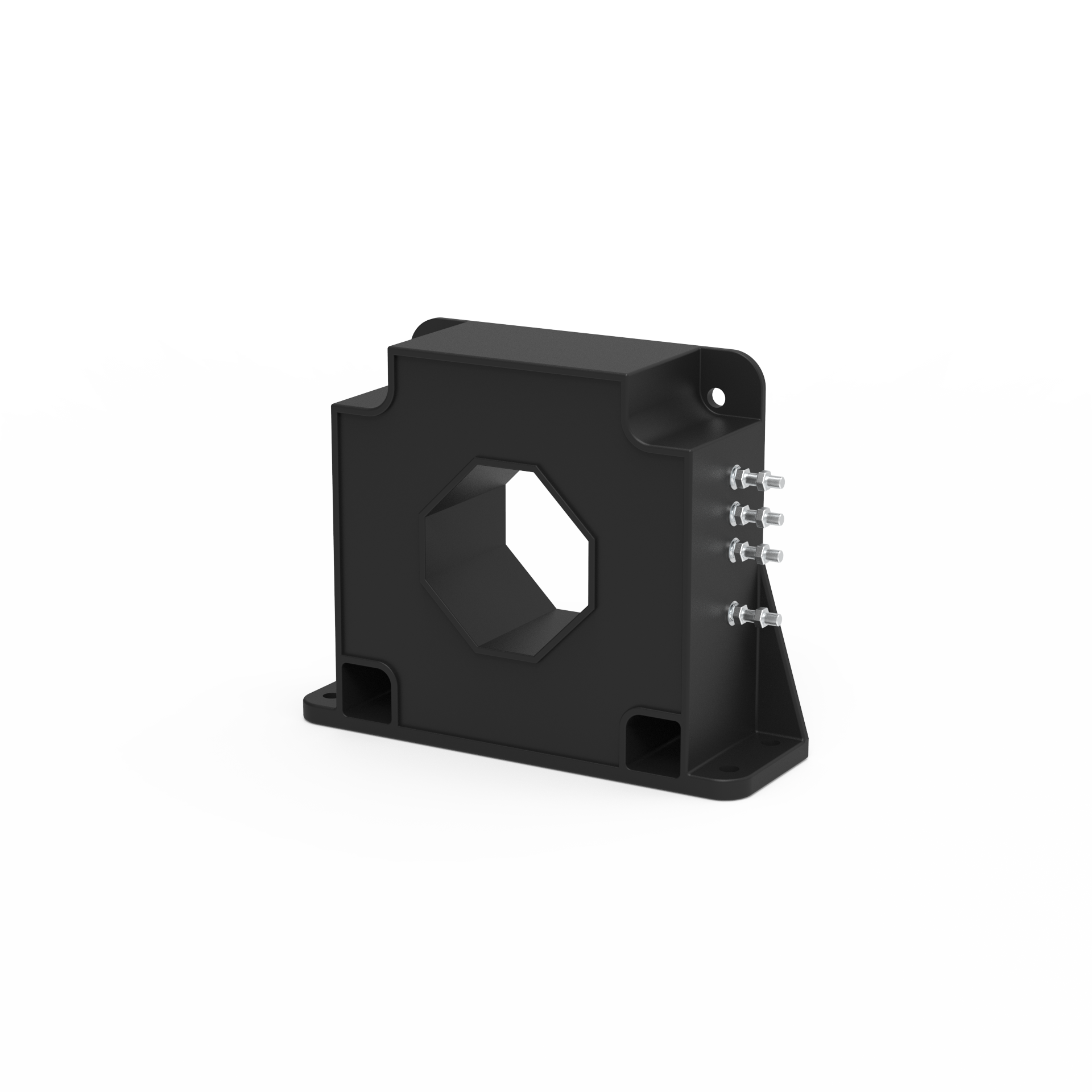

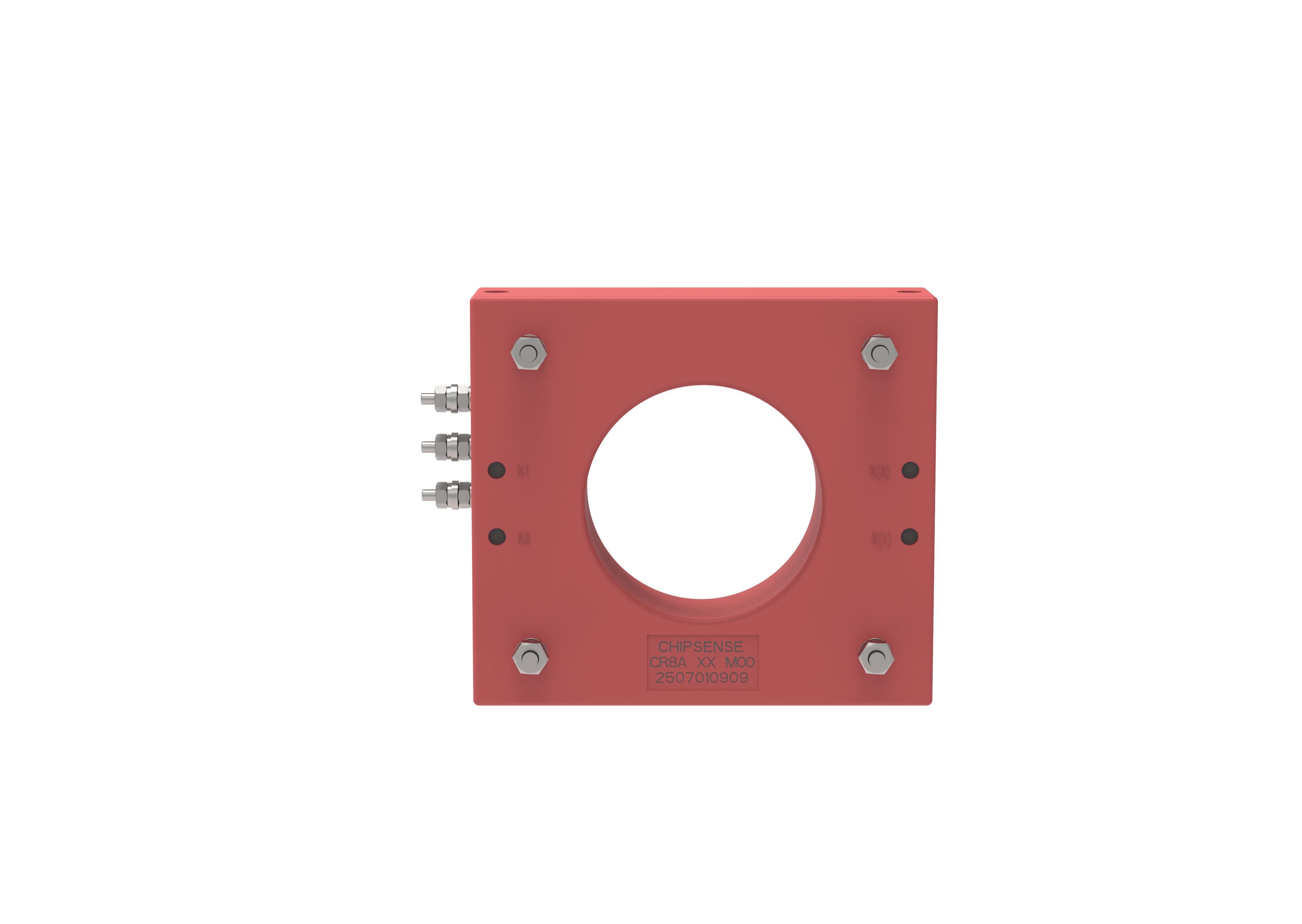

CR8A 1000 M00	1000	±1500	±15...24	±200mA	±0.3	100	-45~85	Ø120		M6
CR8A 1000 M00 High accuracy 1000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 2000 M00	2000	±3000	±15...24	±400mA	±0.3	100	-45~85	Ø120		M6
CR8A 2000 M00 High accuracy 2000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 4000 M00	4000	±6000	±15...24	±800mA	±0.3	100	-45~85	Ø120		M6
CR8A 4000 M00 High accuracy 4000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 500 M00	500	±750	±15...24	±100mA	±0.3	100	-45~85	Ø120		M6
CR8A 500 M00 High accuracy 500A closed loop HALL current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 5000 M00	5000	±6000	±24	±1000mA	±0.3	100	-45~85	Ø120		M6
CR8A 5000 M00 High accuracy 5000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

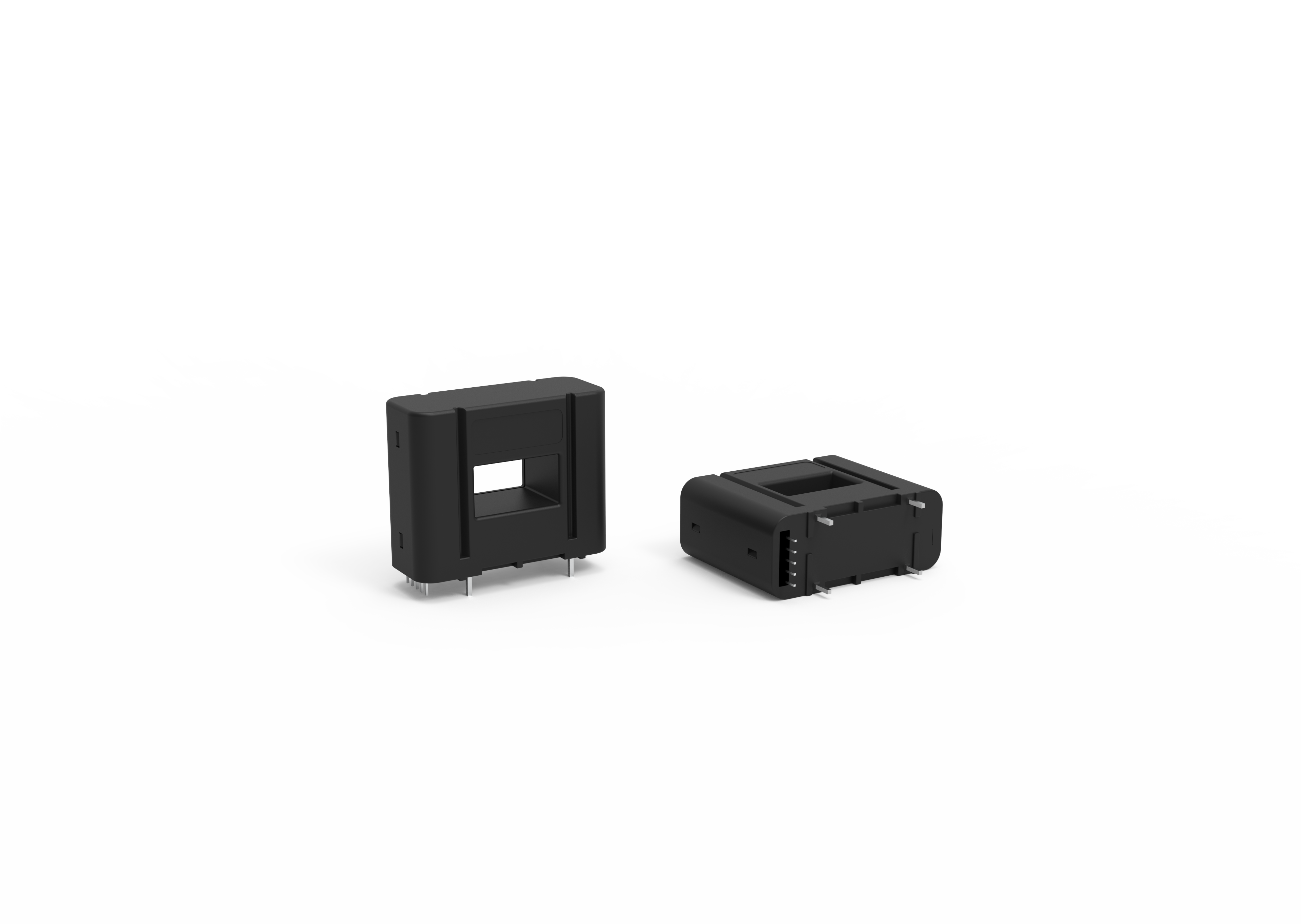

CS1V 100 P00	100	±270	5	2.5±0.625V	<1	>200	-40~85	NA	+
CS1V 100 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 100 PB00	100	±270	5	2.5±0.625	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 100 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 150 P00	150	±270	5	2.5±0.625V	<1	>200	-40~85	NA	+
CS1V 150 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 150 PB00	150	±270	5	2.5±0.625	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 150 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 200 P00	200	±450	5	2.5±0.625V	<1.1	>200	-40~85	NA	+
CS1V 200 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 200 PB00	200	±450	5	2.5±0.625V	<1.1	>200	-40~85	4 x φ5.2 mm	+
CS1V 200 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 250 P00	250	±380	5	2.5±0.625V	<1.1	>200	-40~85	21x11.5 mm	+
CS1V 250 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 300 P00	300	±600	5	2.5±0.9375V	<0.8	>200	-40~85	21x11.5 mm	+
CS1V 300 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 80 P00	80	±270	5	0.25...4.75V	<1	>200	-40~85	NA	+
CS1V 80 P00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V PCB-mount isolated current transducer for ac and dc up to 300A Aperture for primary conductor Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS1V 80 PB00	80	±270	5	2.5±0.625V	<1	200	-40~85	NA	+
CS1V 80 PB00 Closed loop (compensated) multi-range current sensor using the Hall Effect Voltage output Unipolar supply voltage 5V Integrated primary conductor for PCB soldering Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1: 2020 IEC 61800-5-1: 2022 IEC 62109-1: 2010 UL listed more... Products Data Sheet
CS3A 100 P00	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy ±0.3% hall effect current tranducer primary busbar 13.5x10.0mm based on PCB mount type more... Products Data Sheet
CS3A 100 P01	100	±160	±12...15	±100...160mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 100 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High sensitivity, supply voltage ±12V ±15V best current sensor modules for hobbyist electronics projects more... Products Data Sheet

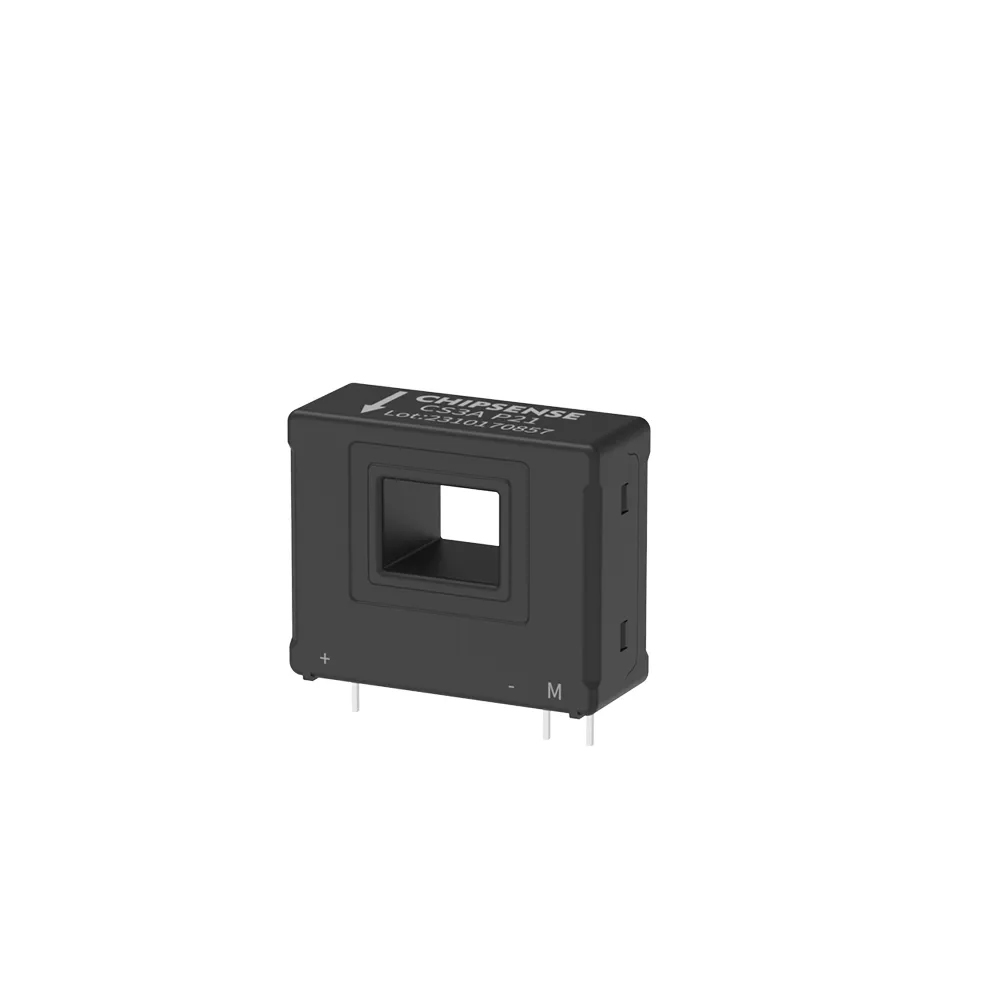

CS3A 100 P21	100	±150	±12...15	±50...75mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Recommended PCB hole high accuracy primary nominal rms current ±100A for battery management frequency bandwidth 150 kHz for power supplies for welding applications more... Products Data Sheet
CS3A 100 P51	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current transducer components in stock more... Products Data Sheet
CS3A 125 P00	125	±200	±12...15	±125...200mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 125 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High bandwidth current sensor and low offset drift over temperature with Linearity ±0.05% Accuracy ±0.3 PCB installation hole Φ1.0mm more... Products Data Sheet
CS3A 200 P21	200	±300	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 200 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P00	50	±90	±12...15	±50...90mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Electrical parameter table accuracy ±0.3% 150kHz bandwidth response time 0.5μs mechanical dimension drawing primary busbar 13.5x10mm outline size more... Products Data Sheet
CS3A 50 P01	50	±90	±12...15	±50...90mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 50 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High quality good linearity ±0.05% PCB mount type Hall current sensor more... Products Data Sheet
CS3A 50 P21	50	±100	±12...15	±25...37.5mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor dimension diagram secondary pin layout recommended PCB hole Φ1.0mm mounted on energy storage PCS DC busbar current detection more... Products Data Sheet
CS3A 50 P51	50	±90	±12...15	±50...90mA	±0.3	150	-20~75	13.5 x 10 mm	+
CS3A 50 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed loop Hall effect AC/DC current sensor Output 30+IsmA AC/DC, power supply±12 V ~ ±15 V DC, primary busbar13.5x10.0mm more... Products Data Sheet
