A Series Open loop Current Sensor

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth(kHz)	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
AN1V 100 PB311	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 3.3V high sensitivity current sensor for PCB board mounting battery powered more... Products Data Sheet
AN1V 100 PB312	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 high frequency Supply voltage 3.3V open loop current sensor for AC variable speed more... Products Data Sheet
AN1V 100 PB501	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial grade current sensor with high sensitivity real-time monitoring for hybrid electric vehicle more... Products Data Sheet
AN1V 100 PB502	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 50A-300A High precision current sensor for fast detection, current monitoring and protection more... Products Data Sheet
AN1V 100 PB511	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors for various applications more... Products Data Sheet
AN1V 100 PB512	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Durable high power DC/AC current sensor for industrial electronic devices more... Products Data Sheet
AN1V 150 PB311	150	±150	3.3	1.65±1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current transducers are widely used across industrial, automotive, energy, and renewable sectors for accurate current measurement, monitoring, and control to ensure safety, efficiency, and system reliability more... Products Data Sheet
AN1V 150 PB312	150	±150	3.3	1.65+1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current transducers are crucial in industrial automation and motor control systems. They monitor electric motor currents, providing feedback to control systems to regulate speed and torque accurately. Additionally, in manufacturing, transducers enable load balancing, fault detection, and predictive maintenance in motors, generators, and coupled machinery more... Products Data Sheet
AN1V 150 PB501	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall-effect current sensors provide high accuracy combined with low drift, enabling accurate current measurements over both time and temperature. Additionally, our Hall-effect current sensors offer high working voltage levels with different levels of isolation to help address varying use-case conditions more... Products Data Sheet
AN1V 150 PB502	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall Effect current sensors are devices that utilize the Hall Effect principle to measure current, providing high accuracy and isolation in various applications. more... Products Data Sheet
AN1V 150 PB511	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB512	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors are frequently used to measure and control the load current in power supplies, safety circuits and a variety of control circuits. In applications where controlling the current is required, such as in power supplies, accurately sensing the magnitude of the current is a fundamental requirement. more... Products Data Sheet
AN1V 200 PB311	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop 200A current sensor using the Hall effect supply voltage 3.3V wide measurement 50A 100A 150A 200A 250A 300A AC DC Current Monitoring Sensor for PCB mouting more... Products Data Sheet
AN1V 200 PB312	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Multifunctional, high-linearity, high-precision,high temperature resistant current sensor for for motor control ,home appliance, robotics,laboratory,industrial automation more... Products Data Sheet
AN1V 200 PB501	200	200	5	0.55...4.55V	±1.0	250	-40~85	NA	+
AN1V 200 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High frequency high reliability current sensor affordable hall effect current sensor integrated current sensor for smart electronic systems and fast detection more... Products Data Sheet
AN1V 200 PB502	200	0-200	5	0.55+4V	±1.0	250	-40~85	NA	+
AN1V 200 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 50A 100A 150A 200A 250A 300A Current sensor for current monitoring and protection more... Products Data Sheet
AN1V 200 PB511	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 200A High Sensitivity Real-time Monitoring for Hybrid Electric Vehicle, Powertrain, Automotive Electronics and Circuit Detection more... Products Data Sheet
AN1V 200 PB512	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Small size Low Noise for Motor Control,battery management, IoT Devices and Industrial Electronic Equipment more... Products Data Sheet
AN1V 300 PB501	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 New original Hall sensor available in stock replace ACS758 current sensor more... Products Data Sheet
AN1V 300 PB502	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Bidirectional AC/DC +/-300 amp isolated current sensor module ACS758 +/-300A more... Products Data Sheet
AN1V 50 PB311	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB311 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Small size open loop current sensor unidirectional power supply voltage 3.3V for PCB mounting more... Products Data Sheet
AN1V 50 PB312	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB312 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High quality open loop current sensor with respect to applicable standards for wide applications in industry more... Products Data Sheet
AN1V 50 PB501	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB501 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors for uninterruptible power supply more... Products Data Sheet
AN1V 50 PB502	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB502 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensors designed for EV traction and auxiliary inverters, DC-DC converters, on-board chargers, solar inverters more... Products Data Sheet
AN1V 50 PB511	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB511 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect sensors series current sensor manufactured by factory for battery management more... Products Data Sheet
AN1V 50 PB512	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB512 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor for both AC and DC current detection DC-DC converter control more... Products Data Sheet
AN3V 10 PB30	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High permeability Hall effect transducer measure AC/DC current for EV charging pile more... Products Data Sheet
AN3V 10 PB31	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 HLSR current transducer in power electronics, motor drives, and renewable energy systems. more... Products Data Sheet
AN3V 10 PB50	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Very low power consumption open loop current sensors more... Products Data Sheet
AN3V 10 PB51	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 SMD PCB mount current sensor for industrial more... Products Data Sheet
AN3V 100 PB31	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High precision magnetic sensor interfacing ASIC more... Products Data Sheet
AN3V 100 PB35	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 3.3V hall effect current sensor for combining manifolds more... Products Data Sheet
AN3V 100 PB51	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How integrated current sensors can open new perspectives for system design. more... Products Data Sheet
AN3V 100 PB55	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect current sensor supply voltage 5V high sensitivity low noise for combining manifolds for PCB board mounting Electronic Equipment more... Products Data Sheet
AN3V 120 PB31	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor 3.3V AC/DC 10A 16A 20A 32A 40A 50A 80A 100A 120A electrical Current Transducer analog output more... Products Data Sheet
AN3V 120 PB35	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor 80-200A AC/DC Input/output suitable for industrial power supply with an aperture of ±0.3 mm more... Products Data Sheet
AN3V 120 PB51	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current transducer sensor 120A range 80mV/A sensitivity PCB mount for motor drives UPS more... Products Data Sheet
AN3V 120 PB55	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor detects and measures the electric current passing through a conductor. It turns the current into a quantifiable output, such as a voltage, current, or digital signal, which may be utilised in a variety of applications for monitoring, control, or protection. more... Products Data Sheet
AN3V 150 PB35	150	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 150 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Industrial combining manifold current measurement hall sensor alternative to LA17P S05 open loop current transducer for industrial converters more... Products Data Sheet
AN3V 150 PB55	150	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 150 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary current direction marking diagram open loop bidirectional current sensor for general power electronics more... Products Data Sheet
AN3V 16 PB30	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Professional hall effect current sensor manufacturer for fast switching applications more... Products Data Sheet
AN3V 16 PB31	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size renewable energy current transducer 10A-120A for high efficiency SMPS more... Products Data Sheet
AN3V 16 PB50	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V Electrical Measuring Analog Module Small AC Current Transducer 10A 16A 20A 32A 40A 50A more... Products Data Sheet
AN3V 16 PB51	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Industrial current transducer alternative supplier current transducer for VFD systems more... Products Data Sheet
AN3V 180 PB35	180	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 180 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 250kHz bandwidth 2.5µs fast response time current transducer alternative HLSR more... Products Data Sheet
AN3V 180 PB55	180	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 180 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Customized current automotive grade current sensor for circuit breaker more... Products Data Sheet
AN3V 20 PB30	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Cost effective Hall effect current sensor for AI server PSU more... Products Data Sheet
AN3V 20 PB31	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current Sensor 20A 3.3V 2.5us PCB HLSR-P more... Products Data Sheet
AN3V 20 PB50	20	±50	5	2.5±2V	±1	250	-40~105	NA	+
AN3V 20 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 ASIC current sensors for HVDC application area more... Products Data Sheet
AN3V 20 PB51	20	±50	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 20 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 HLSR Industrial Current Sensors more... Products Data Sheet
AN3V 200 PB35	200	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 200 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 200A Ultra thin HLSR 8.7mm height galvanic isolated current detector -40 to 105℃ wide temperature more... Products Data Sheet
AN3V 200 PB55	200	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 200 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop current sensor transducer 200A more... Products Data Sheet
AN3V 32 PB30	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 The different types of available current sensors and their typical use cases more... Products Data Sheet
AN3V 32 PB31	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor selection guide for motor control applications and how to test current sensor more... Products Data Sheet
AN3V 32 PB50	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size PCB mounting open loop current sensor more... Products Data Sheet
AN3V 32 PB51	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect sensor ensure for battery efficiency and protecting against current overloads more... Products Data Sheet
AN3V 40 PB30	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How to replace a hall effect transducer for current measurement more... Products Data Sheet
AN3V 40 PB31	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size open cloop supply voltage 3.3V linearity ±0.5 for 250khz for industrial applications more... Products Data Sheet
AN3V 40 PB50	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Electronic components hall effect current sensor more... Products Data Sheet
AN3V 40 PB51	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Electronic components PCB board mounting open cloop hall current sensor for SMPS and UPS more... Products Data Sheet
AN3V 50 PB30	50	±125	3.3	1.65±1.15V	+1.0	250	-40~150	NA	+
AN3V 50 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect current sensor for new energy industrial automation more... Products Data Sheet
AN3V 50 PB31	50	±125	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 50 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage+3.3V open loop current sensor based on Hall effect PCB installation more... Products Data Sheet
AN3V 50 PB50	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V current sensor for Servo Motor more... Products Data Sheet
AN3V 50 PB51	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Good Iinear variable differential current sensor active speed sensor wide measure range10A 16A 20A 32A 40A 50A 80A 100A 120A more... Products Data Sheet
AN3V 80 PB31	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 UPS power HLSR current sensor price more... Products Data Sheet
AN3V 80 PB35	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How integrated current sensors can open new perspectives for system more... Products Data Sheet
AN3V 80 PB51	80	±200	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 80 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size height 8.7mm open loop 250kHz bandwidth supply voltage+5V for MPPT more... Products Data Sheet
AN3V 80 PB55	80	±200	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 80 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor for renewable energy systems more... Products Data Sheet
AN5V 10 PB00	10	±30	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 10 PB00 10A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 AC and DC currents sensor in automotive and industrial applications more... Products Data Sheet
AN5V 15 PB00	15	±45	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 15 PB00 15A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Easy to use and simpler design ASIC current sensor more... Products Data Sheet
AN5V 20 PB00	20	±60	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 20 PB00 20A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 High-performance transducers for track motor control more... Products Data Sheet
AN5V 25 PB00	25	±75	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 25 PB00 25A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Low sensitivity error ASIC sensors more... Products Data Sheet
AN5V 30 PB00	30	±90	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 30 PB00 30A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Small size current sensors employed in solar inverters and battery management systems more... Products Data Sheet
AN5V 50 PB00	50	±150	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 50 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Hall effect sensor working principle and applications more... Products Data Sheet
AN5V 60 PB00	60	±180	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 60 PB00 60A open loop current sensor using the Hall Effect Supply voltage ±12...±15V Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 20 PB50	20	±50	5	±2V	±0.8	250	-40~105	NA	+
AN6V 20 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 32 PB50	32	±80	5	±2V	±0.8	250	-40~105	NA	+
AN6V 32 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 40 PB50	40	±100	5	±2V	±0.8	250	-40~105	NA	+
AN6V 40 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 50 PB50	50	±125	5	±2V	±0.8	250	-40~105	NA	+
AN6V 50 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR1A 100 H00	100	±100	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensors and transducers to meet the highest standards of precision, reliability, and application-specific performance. more... Products Data Sheet
AR1A 100 H01	100	±100	±12...15	±100mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor is a detection device that can sense the information of the measured current and convert the detected information into electrical signals or other required forms of information according to certain rules, in order to meet the requirements of information transmission, processing, storage, display, recording and control. The current sensor is also known as a magnetic sensor. It is widely used in household appliances, smart grids, electric vehicles, wind power generation, etc. In our daily life, we can find many magnetic sensors, such as computer hard drives, compasses, household appliances. more... Products Data Sheet
AR1A 200 H00	200	±200	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 200 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 100A 200A Hall Open Loop Current Sensor Ambient Operating Temperature -40℃~85℃,Supply voltage±12V ±15V, Primary hole Φ20mm, Connection of secondary JK2EDG-5.08-4P more... Products Data Sheet
AR1A 200 H01	200	±200	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 200 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensors are devices that detect and measure electric current flowing through a conductor, converting it into a quantifiable output for various applications. more... Products Data Sheet
AR1A 50 H00	50	±50	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 50 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor module connection current transformer in single line diagram more... Products Data Sheet
AR1A 50 H01	50	±50	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 50 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor circuit for microcontroller current sensor 50A working principle current sensor pinout more... Products Data Sheet
AR4V 200 P00	200	±300	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Φ 22	+
AR4V 200 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR4V 400 P00	400	±600	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Φ 22	+
AR4V 400 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR4V 600 P00	600	±900	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Ø22	+
AR4V 600 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR4V 800 P00	800	±1200	5	Vref±1.25*IPN/ IPN	±1.0	240	-40~105	Ø22	+
AR4V 800 P00 Open loop（compensated）current sensor using the Hall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage ：+5V Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AS1V 100 H00	100	±100A	5	2.5±2	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Battery powered 5V current sensor portable industrial grade current sensor wide measurement range 50A 100A 200A 300A 400A 500A 600A 700A 800A high temperature resistant for Industrial application fields. more... Products Data Sheet
AS1V 100 H01	100	±300	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Supply voltage+5V range 50A 100A 200A 300A 400A 500A 600A waterproof current sensor for industrial environment through hole20.5mm×10.5mm Connection Molex 5045-04A . more... Products Data Sheet
AS1V 100 H07	100	±100	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		RVVP 3 x 0.3mmx 0.3mm -600
AS1V 100 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensors are devices that detect and measure electric current flowing through a conductor, converting it into a quantifiable output for various applications. more... Products Data Sheet
AS1V 200 H00	200	±200	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 200 H01	200	±600	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Electric current sneosr current sensing circuit diagram more... Products Data Sheet
AS1V 200 H07	200	±200	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		RVVP 3 x 0.3mm x 0.3mm -600
AS1V 200 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High accuracy low loss current sensor core electronic component supply voltage+5V ,output line length 600 ±10mm, for Battery Management System more... Products Data Sheet
AS1V 30 H05	30	±30	5	2.5±0.625V	+1	50	-40~105	20.5x10.5 mm		RVVP 3×0.3mm×0.3mm-1000
AS1V 30 H05 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor with primary nominal rms current ±30A,Supply voltage 5V more... Products Data Sheet
AS1V 300 H00	300	±300	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor ICs typically -40°C to +105°C or higher. Temperature variations cause drifts in reference voltage, offset, and sensitivity. more... Products Data Sheet
AS1V 300 H01	300	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Open-loop 50A 100A 200A 300A 400A 500A 600A current sensor installed inside an electric vehicle charging station for power monitoring more... Products Data Sheet
AS1V 400 H00	400	±400	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall effect principle for DC and AC current sensing with output voltage graph,current sensing resistor for overcurrent protection circuit more... Products Data Sheet
AS1V 400 H01	400	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor a crucial component in power electronic systems and industrial control, provides significant support for the safe and efficient operation of the system through precise current measurement and monitoring. more... Products Data Sheet
AS1V 50 H00	50	±50	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High performance current sensor for EV HEV BMS more... Products Data Sheet
AS1V 50 H01	50	±150	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Industrial grade bidirectional current sensor for AI data center industrial internet more... Products Data Sheet
AS1V 500 H00	500	±500	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Monitor the operating conditions of the motors and equipment to ensure safety and efficiency. more... Products Data Sheet
AS1V 500 H01	500	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Low noise fast response, supply voltage+5V, real-time monitoring current sensor,primary hole 20.5mm×10.5mm,connection of secondary Molex 5045-04A more... Products Data Sheet
AS1V 600 H00	600	±600	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Lightweight low loss motor control open loop high precision current sensor for AC variable speed,Static converters for DC motor drives,and battery management more... Products Data Sheet
AS1V 600 H01	600	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor and its specifications more... Products Data Sheet
AS1V 700 H00	700	±700	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 700 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Ideal for high-current and transient measurements more... Products Data Sheet
AS1V 800 H00	800	±800	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 800 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall Effect Sensor for Electric Scooter Motor Uninterruptible Power Supplies more... Products Data Sheet
AT4V 100 H00	100	±300	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ

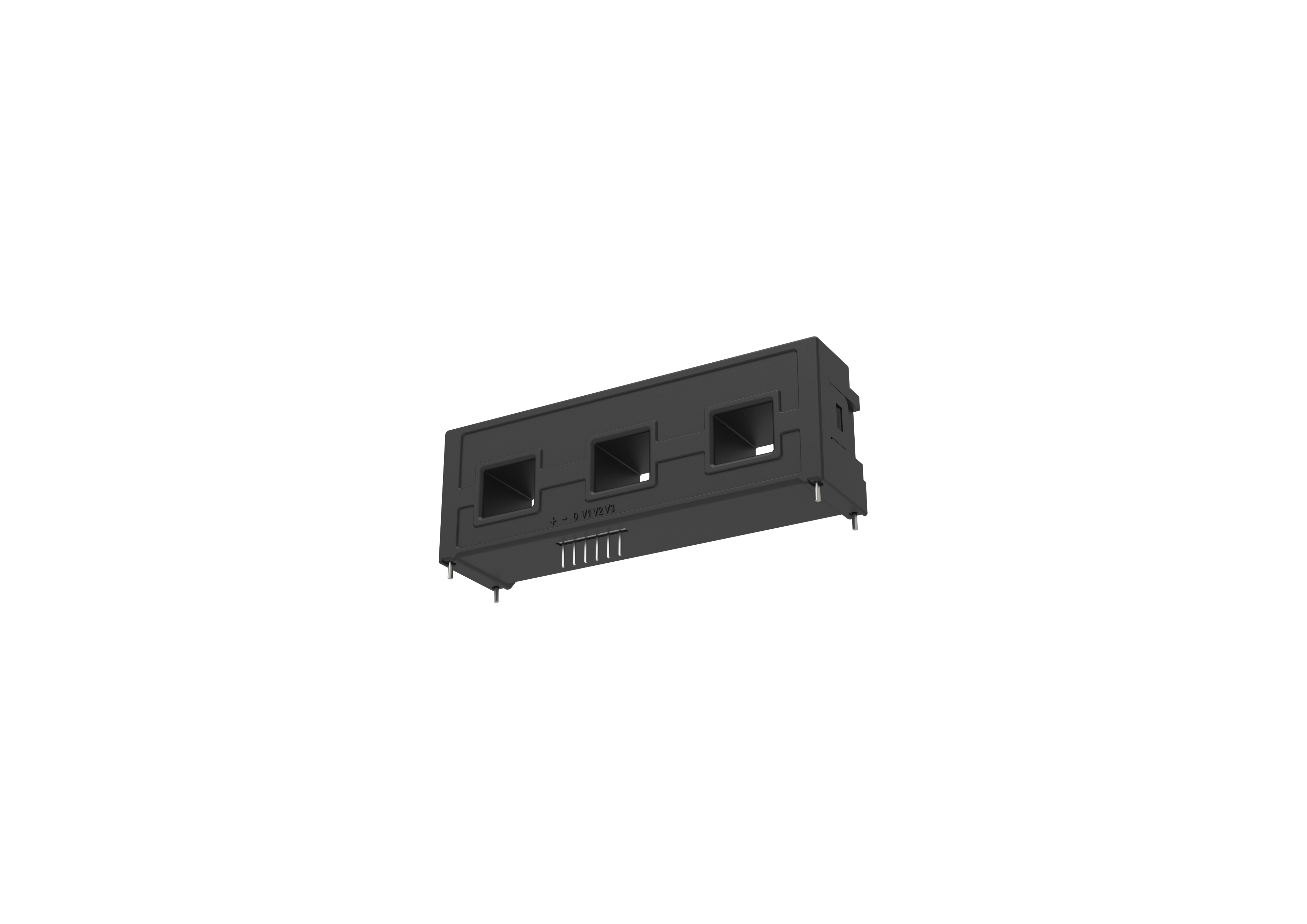

AT4V 100 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 150 H00	150	±450	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 150 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 200 H00	200	±600	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 200 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 50 H00	50	±150	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 50 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 75 H00	75	±225	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 75 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

Find Products

A Series Open loop Current Sensor

A Series Open loop Current Sensor

Get In Touch

Our Products

Quick Links

Follow Us

Newsletter
