C Series Closed loop HALL sensor

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
CR1V 6 PB00	6	±18	5	2.5±1.875V	±0.7	100	-40~85	NA	+
CR1V 6 PB00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 6 PB01	6	±20	5	2.5±1.875V	±0.8	200	-40~85	NA	+
CR1V 6 PB01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB00	15	±45	5	2.5±1.875V	±0.7	100	-40~85	NA	+
CR1V 15 PB00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB01	15	±51	5	2.5±1.875V	±0.8	200	-40~85	NA	+
CR1V 15 PB01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CN1A 25 PB00	25	±36	±15	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1V 25 PB00	25	±75	5	2.5±1.875V	±0.7	100	-40~85	NA	+
CR1V 25 PB00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 25 PB01	25	±85	5	2.5±1.875V	±0.8	200	-40~85	NA	+
CR1V 25 PB01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CN2A 40 PB01	40	±110	±12...15	±20mA	±0.5	200	-40~85	NA	+
CN2A 40 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020  IEC 61800-5-1:2022  IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P01	50	±90	±12...15	±50...90mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 50 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P51	50	±90	±12...15	±50...90mA	±0.3	150	-20~75	13.5 x 10 mm	+
CS3A 50 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 50 PB01	50	±110	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 50 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 80 PB01	80	±160	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 80 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 100 PB01	100	±160	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 100 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 100 H00	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 100 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1A 100 H01	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 100 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CS3A 100 P00	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 100 P01	100	±160	±12...15	±100...160mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 100 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 125 P00	125	±200	±12...15	±125...200mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 125 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H00	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H01	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 200 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM1A 200 H00	200	±420	±12...15	±100...210mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 300 H00	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 300 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 300 H01	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 300 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 300 H02	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 300 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM2A 300 H00	300	±500	±12...20	±150...250mA	±0.3	100	-40~85	Ø20		Molex 6410
CM2A 300 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR2A 400 H00	400	±600	±15...24	±100...150mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 400 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CR2A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 500 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CM3A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		Molex 6410
CM3A 500 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM3A 500 H01	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		JST B3P VH
CM3A 500 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM4A 1000 H00	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CM4A 1000 H03	1200	±1800	±24	±300...450mA	±0.4	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H03 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CM4A 1000 H05	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H05 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CM6A 1000 B00	1000	±2000	±24	±200...400mA	±0.4	150	-40~85	Primary copper busbar		4×M5 threaded bolts
CM6A 1000 B00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50155: 2007, UL508:2013 more... Products Data Sheet
CM5A 2000 H20	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		JST B3P VH
CM5A 2000 H20 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 200 P00	200	±450	5	0.25...4.75V	<1.1	>200	-40~85	NA	+
CS1V 200 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 150 P00	150	270	5	0.25...4.75V	<1	>200	-40~85	NA	+
CS1V 150 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 100 P00	100	270	5	0.25...4.75V	<1	>200	-40~85	NA	+
CS1V 100 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 80 P00	80	270	5	0.25...4.75V	<1	>200	-40~85	NA	+
CS1V 80 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1V 6 PB02	6	±12	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 6 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 6 PB03	6	±12	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 6 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 6 PB04	6	±20	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 6 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB02	15	±30	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 15 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB03	15	±30	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 15 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 15 PB04	15	±51	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 15 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 25 PB02	25	±50	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 25 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 25 PB03	25	±50	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 25 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 25 PB04	25	±85	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 25 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 50 PB03	50	±100	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 50 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 50 PB04	50	±150	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 50 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CR1V 75 PB05	75	±180	5	2.5V	±1.0	200	-40~105	NA	+
CR1V 75 PB05 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 more... Products Data Sheet
CN1A 25 PB01	25	±36	±12	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 200 P21	200	±300	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 200 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 25 PB02	25	±55	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 25 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 40 PB02	40	±90	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 40 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CN2A 50 PB02	50	±90	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 50 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 50 H00	50	±70	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 50 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 100 H02	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 100 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 100 H04	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 100 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H02	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 200 H04	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 200 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CR1A 300 H04	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 300 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM1A 100 H01	100	±200	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 100 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM1A 200 H02	200	±420	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex Minifit 5566
CM1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM4A 1000 H06	1000	±2700	±15...24	±200...540mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H06 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
CM5A 2000 H01	2000	±3850	±15...24	±400...770mA	±0.3	150	-40~85	Ø57.5		5566-4A
CM5A 2000 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CM5A 2000 H21	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		2EDGV-5.08-3P
CM5A 2000 H21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 20 P01	20	±30	±12	±50...90mA	±0.5	150	-40~85	13.5 x 10 mm	+
CS3A 20 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P00	50	±90	±12...15	±50...90mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 50 P21	50	±100	±12...15	±25...37.5mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 100 P21	100	±150	±12...15	±50...75mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS3A 100 P51	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 100 PB00	100	270	5	0.25...4.75V	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 100 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 150 PB00	150	270	5	0.25...4.75V	<0.95	>200	-40~85	4 x φ5.2 mm	+
CS1V 150 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
CS1V 200 PB00	200	±450	5	0.25...4.75V	<1.1	>200	-40~85	4 x φ5.2 mm	+
CS1V 200 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet

H Series Open loop Current Sensor

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	Others
HS1V 50 H00	50	±150	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 50 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H05	50	±150	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 50 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HR1V 50 H01	50	±100	±12...15	±5V	±1.0	20	-40~85	Ø20	JK2EDG-5.08-4P
HR1V 50 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HS1V 100 H05	100	±300	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 100 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HR1V 100 H01	100	±200	±12...15	±5V	±1.0	20	-40~85	Ø20	JK2EDG-5.08-4P
HR1V 100 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HR1M 100 H00	100	±600	20...50	4...20mA	±1	20~6000	-40~85	Ø35.0	WJ2EDGVC-5.08-4P-14
HR1M 100 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards:IEC 61010-1: 2000,UL 508: 2010 more... Products Data Sheet
HS1V 200 H00	200	±600	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H05	200	±600	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 200 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 200 H00	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HR1V 200 H01	200	±400	±12...15	±5V	±1.0	20	-40~85	Ø20	JK2EDG-5.08-4P
HR1V 200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HR1M 200 H00	200	±600	20...50	4...20mA	±1	20~6000	-40~85	Ø35.0	WJ2EDGVC-5.08-4P-14
HR1M 200 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards:IEC 61010-1: 2000,UL 508: 2010 more... Products Data Sheet
HS1V 300 H00	300	±900	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 300 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H05	300	±900	±12...15	±4V	±1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 300 H05 Open loop sensor using the Hall Effect Output voltage is proportional to supply voltage Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HR1V 300 H01	300	±600	±12...15	±5V	±1.0	20	-40~85	Ø20	JK2EDG-5.08-4P
HR1V 300 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HR1M 300 H00	300	±1000	20...50	4...20mA	+1	20~6000	-40~85	Ø35.0	WJ2EDGVC-5.08-4P-14
HR1M 300 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards:IEC 61010-1: 2000,UL 508: 2010 more... Products Data Sheet
HS1V 400 H00	400	±900	±12...15	±4V	+1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 400 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HR1V 400 H01	400	±800	±12...15	±5V	±1.0	20	-40~85	Ø20	JK2EDG-5.08-4P
HR1V 400 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HR1M 400 H00	400	±1000	20...50	4...20mA	+1	20~6000	-40~85	Ø35.0	WJ2EDGVC-5.08-4P-14
HR1M 400 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards: IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
HS2V 500 H00	500	±1500A	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 500 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HR1V 500 H01	500	±900	±12...15	±5V	+1.0	20	-40~85	Ø20	JK2EDG-5.08-4P
HR1V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
HR1M 500 H00	500	±1800	20...50	4...20mA	±1.0	20~6000	-40~85	Ø35.0	WJ2EDGVC-5.08-4P-14
HR1M 500 H00 True rms output 4-20mA Primary hole:Φ35mm Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very low offset drift over temperature No insertion loss Standards: IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
HS1V 600 H00	600	±900	±12...15	±4V	+1.0	50	-40~105	20x10 mm	MOLEX 5045-04A
HS1V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS2V 600 H00	600	±1800	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 600 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS3V 800 H00	800	+2400	±15	±4V	+1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS2V 1000 H00	1000	±2500	±15	±4V	+1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 1000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS2V 1500 H00	1500	±2500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 1500 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS3V 1500 H00	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 1500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS3V 2000 H00	2000	±5500	±15	±4V	±1	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 2000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS3V 3000 H00	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 3000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H02	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 50 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H03	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 50 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H04	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 50 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H06	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 50 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H08	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 50 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 50 H09	50	±150	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 50 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H00	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 100 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H02	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 100 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H03	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 100 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H04	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 100 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H06	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 100 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H08	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 100 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 100 H09	100	±300	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 100 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H02	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H03	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 200 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H04	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 200 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H06	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 200 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H08	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 200 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 200 H09	200	±600	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 200 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 200 H01	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 200 H02	200	±600	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H02	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 300 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H03	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 300 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H04	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 300 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H06	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 300 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H08	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 300 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 300 H09	300	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 300 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H02	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 400 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H03	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 400 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H04	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 400 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H05	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 400 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H06	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 400 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H08	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 400 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 400 H09	400	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 400 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 400 H00	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 400 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 400 H01	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 400 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 400 H02	400	±1200	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 400 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H00	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H02	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H03	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 500 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H04	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 500 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H05	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 500 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H06	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 500 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H08	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 500 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 500 H09	500	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 500 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 500 H02	500	±1500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 500 H00	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H02	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 600 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H08	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm + HC-VH-T
HS1V 600 H08 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H06	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH-4A
HS1V 600 H06 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H05	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	MOLEX 5045-04A
HS1V 600 H05 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H03	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 500mm
HS1V 600 H03 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H04	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	XH2.54-4P
HS1V 600 H04 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS1V 600 H09	600	±900	±12...15	±4V	±1.0	50	-40~105	20.4x10.4 mm	RVV40.2mm0.2mm - 700mm
HS1V 600 H09 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 600 H02	600	±1800	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 600 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 600 H00	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 800 H00	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 800 H02	800	±2400	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 800 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet

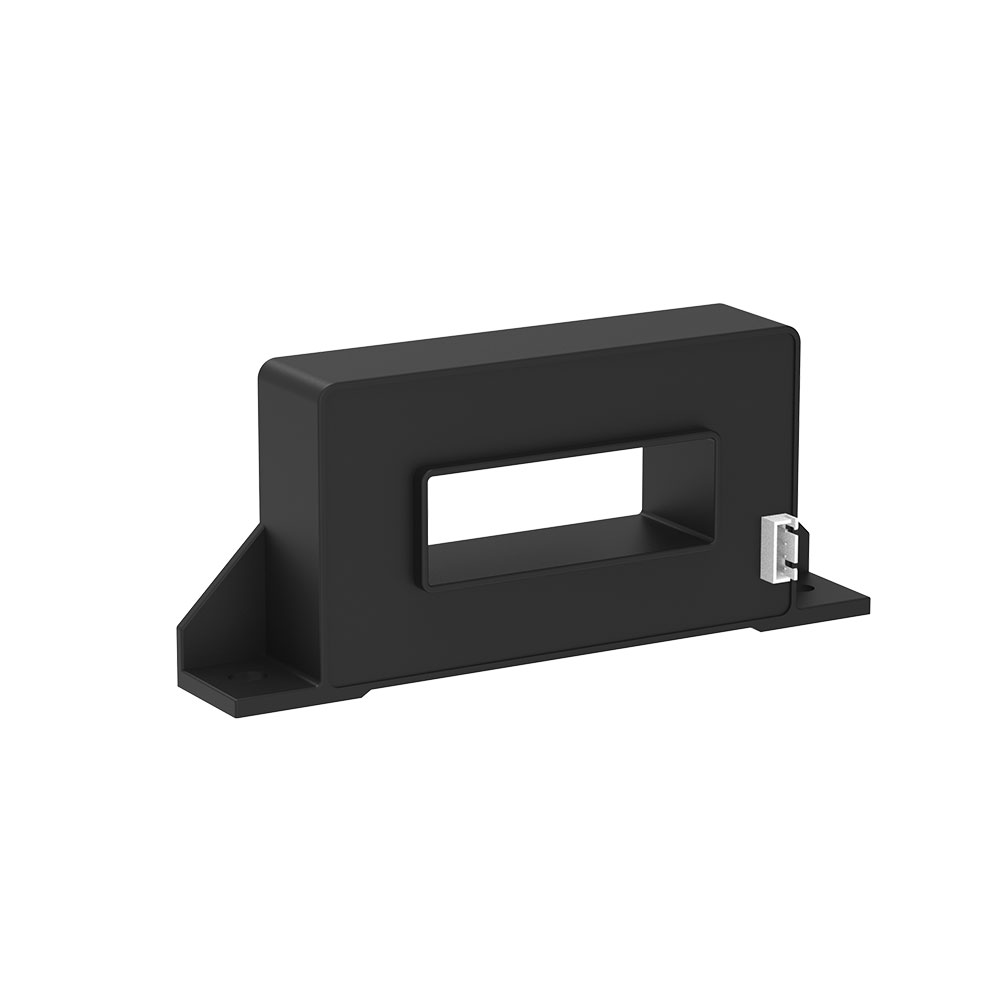

HS3V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1000 H02	1000	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 1000 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1000 H00	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 1000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1200 H00	1200	±2500	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	MOLEX 5045-04A
HS2V 1200 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1200 H01	1200	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 1200 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1200 H02	1200	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 1200 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1500 H01	1500	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	RVVP 40.3mm0.3mm- 1500mm
HS2V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS2V 1500 H02	1500	±3000	±15	±4V	±1.0	25	-40~105	40.5x32.5 mm	XH-4A
HS2V 1500 H02 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1500 H01	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2000 H01	2000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 2000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2500 H00	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 2500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2500 H01	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 2500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 3000 H01	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 3000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet

A Series Open loop Current Sensor

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
AN5V 5 PB00	5	±15	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 5 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AN5V 10 PB00	10	±30	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 10 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AN3V 10 PB50	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 15 PB00	15	±45	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 15 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AN3V 16 PB50	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 20 PB00	20	±60	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 20 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AN3V 20 PB50	20	±50	5	2.5±2V	±1	250	-40~105	NA	+
AN3V 20 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 25 PB00	25	±75	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 25 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AS1V 30 H05	30	±30	5	2.5±0.625V	+1	50	-40~105	20.5x10.5 mm		RVVP 3×0.3mm×0.3mm-1000
AS1V 30 H05 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN3V 32 PB50	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB50	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 50 PB00	50	±150	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 50 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 more... Products Data Sheet
AN1V 50 PB20	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB20 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN1V 50 PB21	50	±50	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 50 PB21 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN1V 50 PB22	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB22 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 50 PB23	50	50	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 50 PB23 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 50 PB30	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB30 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 50 PB31	50	±50	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 50 PB31 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 50 PB30	50	±125	3.3	1.65±1.15V	+1.0	250	-40~150	NA	+
AN3V 50 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

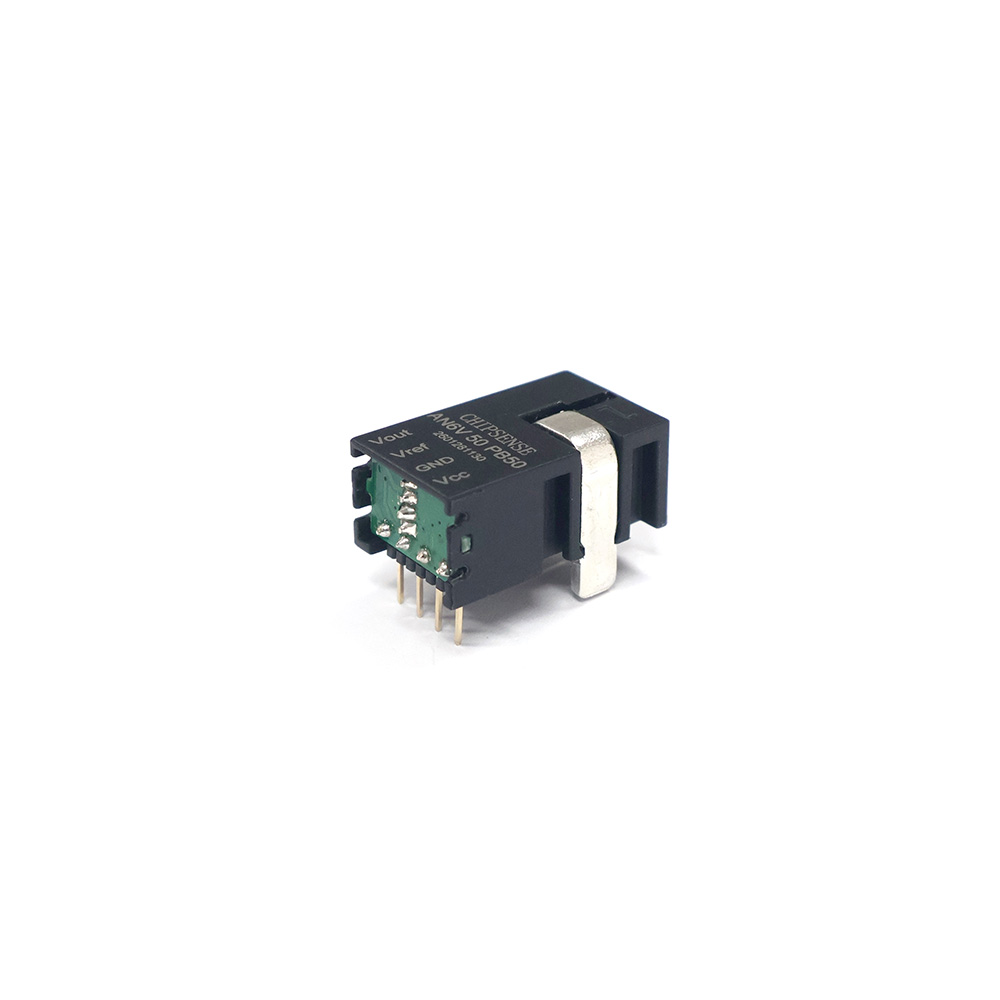

AN3V 50 PB50	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AS1V 50 H00	50	±50	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 50 H01	50	±150	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN3V 80 PB50	80	±200	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 80 PB50 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB20	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB20 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB21	100	±100	5	2.5±2V	±1.0	250	-40~150	NA	+
AN1V 100 PB21 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB22	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB22 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB23	100	100	5	0.55...4.55V	±1.0	250	-40~150	NA	+
AN1V 100 PB23 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB30	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB30 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 100 PB31	100	±100	3.3	1.65±1.32V	±1.0	250	-40~150	NA	+
AN1V 100 PB31 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB50	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AS1V 100 H00	100	±100A	5	2.5±2	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 100 H01	100	±300	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 100 H07	100	±100	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		RVVP 3 x 0.3mmx 0.3mm -600
AS1V 100 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

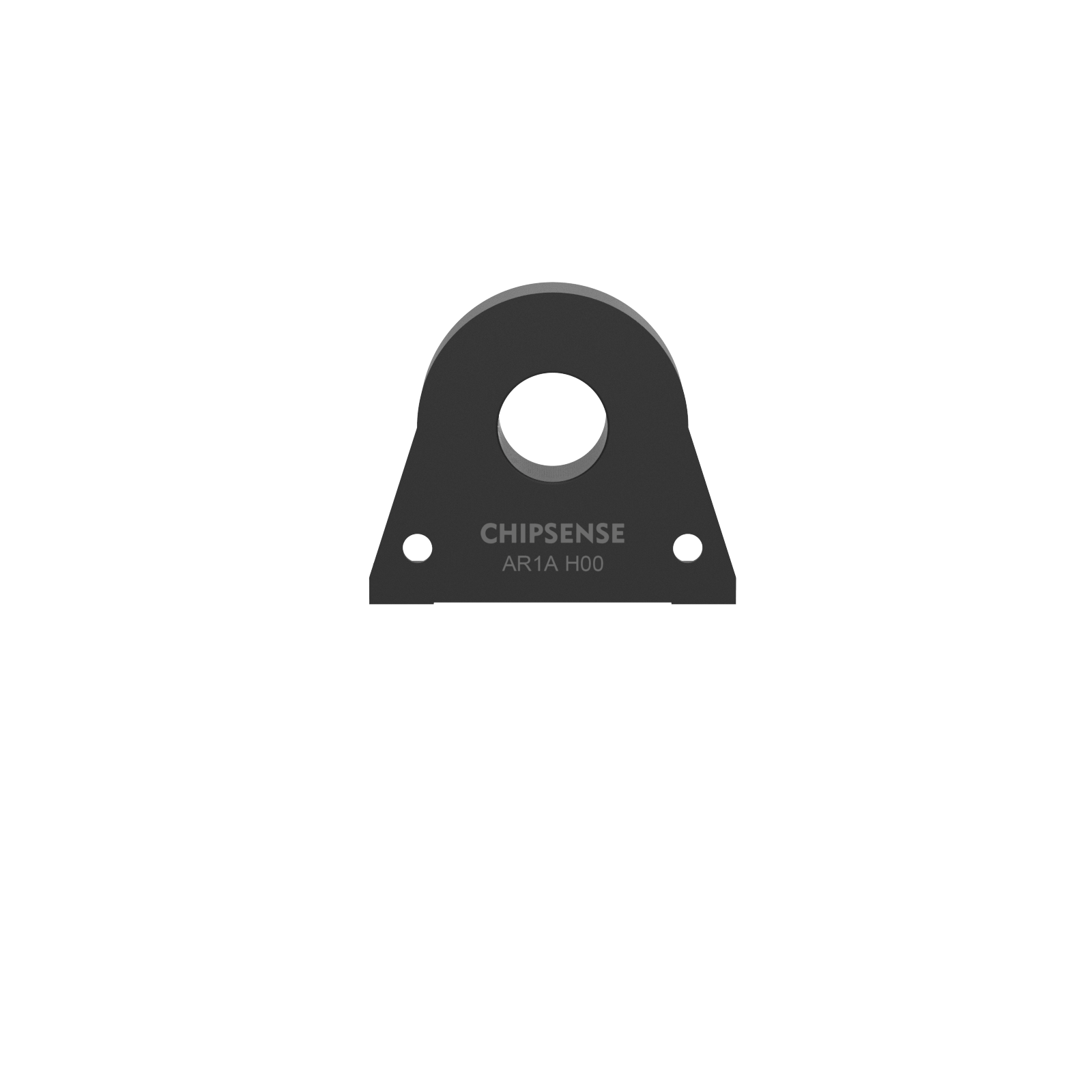

AR1A 100 H00	100	±100	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AR1A 100 H01	100	±100	±12...15	±100mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 100 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN3V 120 PB50	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB20	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB20 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB21	150	±150	5	2.5±2V	±1.0	250	-40~125	NA	+
AN1V 150 PB21 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB22	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB22 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB23	150	150	5	0.55...4.55V	±1.0	250	-40~125	NA	+
AN1V 150 PB23 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB30	150	±150	3.3	1.65±1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB30 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 150 PB31	150	±150	3.3	1.65+1.32V	±1.0	250	-40~125	NA	+
AN1V 150 PB31 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB20	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB20 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB21	200	±200	5	2.5±2V	±1.0	250	-40~85	NA	+
AN1V 200 PB21 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB22	200	200	5	0.55...4.55V	±1.0	250	-40~85	NA	+
AN1V 200 PB22 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB23	200	0-200	5	0.55+4V	±1.0	250	-40~85	NA	+
AN1V 200 PB23 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB30	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB30 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 200 PB31	200	±200	3.3	1.65±1.32V	±1.0	250	-40~85	NA	+
AN1V 200 PB31 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AS1V 200 H00	200	±200	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 200 H01	200	±600	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 200 H07	200	±200	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		RVVP 3 x 0.3mm x 0.3mm -600
AS1V 200 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR1A 200 H00	200	±200	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 200 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AR1A 200 H01	200	±200	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 200 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 300 H00	300	±300	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 300 H01	300	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 400 H00	400	±400	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 400 H01	400	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 500 H00	500	±500	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 500 H01	500	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 600 H00	600	±600	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 600 H01	600	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 700 H00	700	±700	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 700 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AS1V 800 H00	800	±800	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 800 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN3V 10 PB30	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 10 PB31	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 10 PB51	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 16 PB30	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 16 PB31	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 16 PB51	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 20 PB30	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 20 PB31	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 20 PB51	20	±50	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 20 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 32 PB30	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 32 PB31	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 32 PB51	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB30	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB31	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 40 PB51	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 50 PB31	50	±125	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 50 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 50 PB51	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 80 PB30	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 80 PB31	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 80 PB51	80	±200	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 80 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB30	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB31	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 100 PB51	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 120 PB30	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 120 PB31	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN3V 120 PB51	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AR1A 50 H00	50	±50	±12...15	±20mA	±1.0	5	-40~85	Ø20.0		JK2EDG-5.08-4P
AR1A 50 H00 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 20mA Good linearity High accuracy Very low offset drift over temperature. Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AR1A 50 H01	50	±50	±12...15	±100mA	±1.0	5	-40~85	Ø20		JK2EDG-5.08-4P
AR1A 50 H01 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Nominal output current 100mA Good linearity High accuracy Very low offset drift over temperature. Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 more... Products Data Sheet
AN1V 300 PB22	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB22 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
AN1V 300 PB23	300	±300	5	0.55-4.55V	±1.0	250	-40~85	NA	+
AN1V 300 PB23 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet

Split Core Hall Effect Current Sensor

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	Others
HK1V 200 H00	200	±400	±12...15	±4V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 200 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 400 H00	400	±800	±12...15	±4V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 400 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 600 H00	600	±1200	±12...15	±4V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 600 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 800 H00	800	±1600	±12...15	±4V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 800 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 1000 H00	1000	±2000	±12...15	±4V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 1000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 2000 H00	2000	±4000	±12...15	±4V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 2000 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 200 H01	200	±400	±12...15	±5V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 200 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 400 H01	400	±800	±12...15	±5V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 400 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 600 H01	600	±1200	±12...15	±5V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 600 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 800 H01	800	±1600	±12...15	±5V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 800 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 1000 H01	1000	±2000	±12...15	±5V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 1000 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HK1V 2000 H01	2000	±4000	±12...15	±5V	±1.0	10	-40~85	Ø40.5	15EDGVC-3.5-04P
HK1V 2000 H01 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet

Find Products

Hall Effect Current Sensors

C Series Closed loop HALL sensor

H Series Open loop Current Sensor
