A Series Open loop Current Sensor

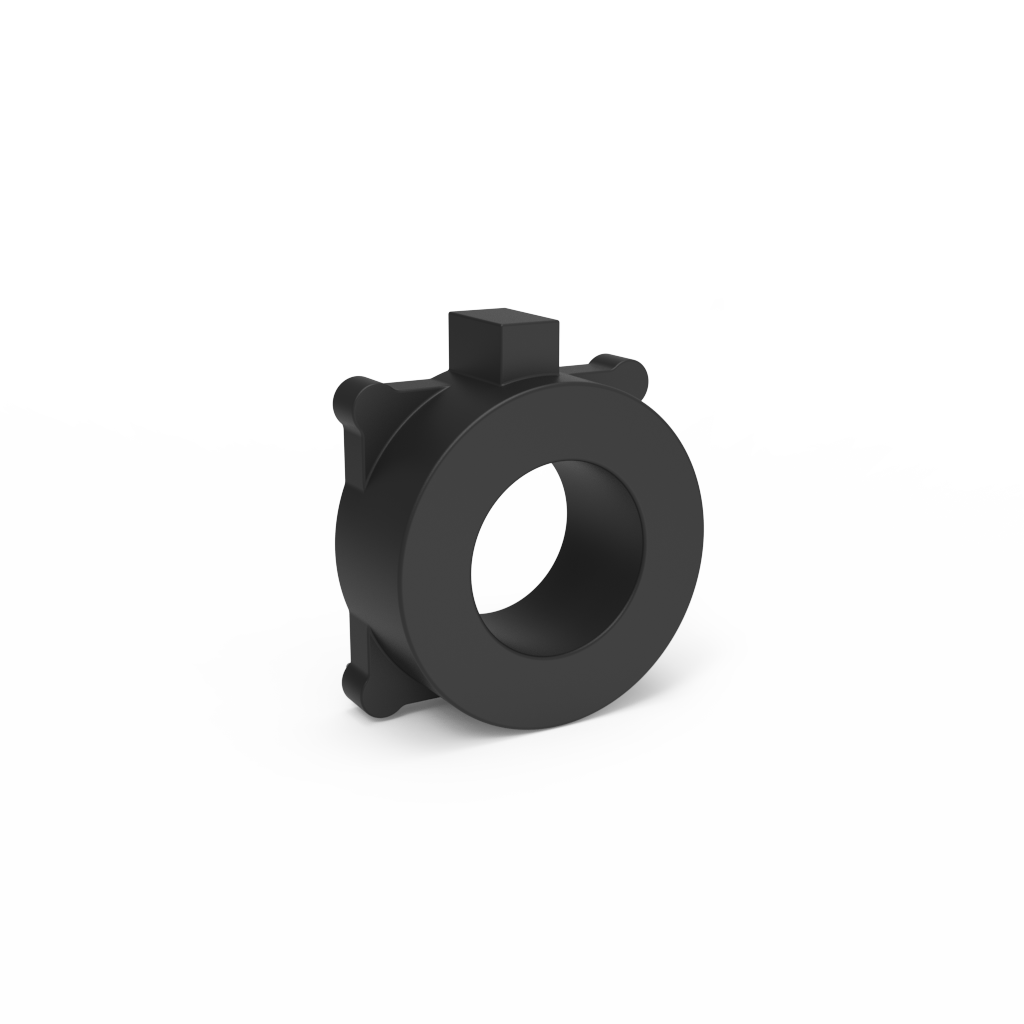

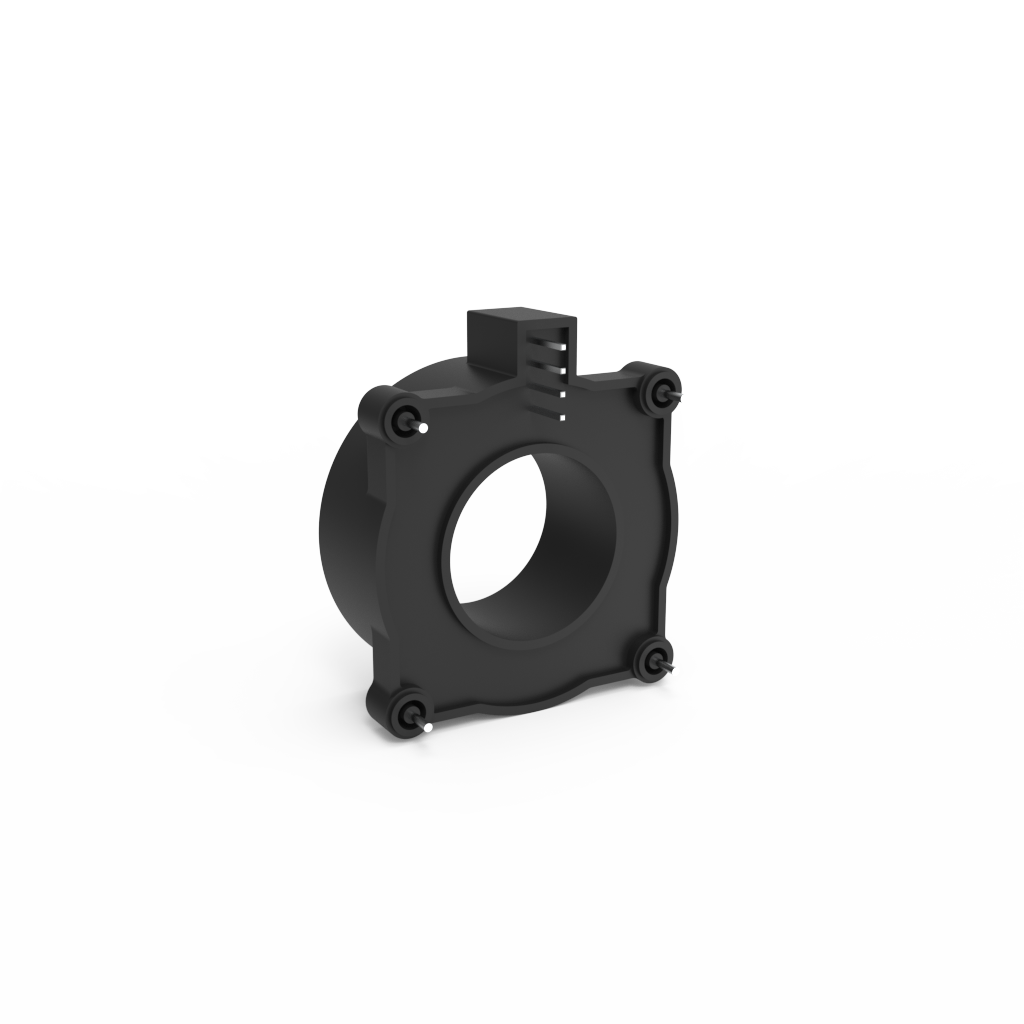

AR4V 200 P00
small size, PCB mounting 200A,400A,600A,800A HTFSP current sensor
Open loop（compensated）current sensor using the Hall effect
Galvanic insulation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Supply voltage ：+5V
Standards:
IEC 60664-1:2020
IEC 61800-5-1:2022
IEC 62109-1:2010
Related Applications
UPS
Switched Mode Power Supplies
Welding machine power supplies
Battery Management
Static Inverter Driven by DC Motor
Wind Energy Converter
AC Variable Speed Regulation (Servo Motor)
Download manual
Specification
Primary nominal RMS current (A)
200
Measuring range (A)
±300
Supply voltage (V)
5
Secondary output
Vref±1.25*IPN/ IPN
Accuracy (%)
±1.0
Output bandwidth
240
Operating temperature (°C)
-40~105
Copper busbar (mm)
Φ 22
PCB
+
Others
