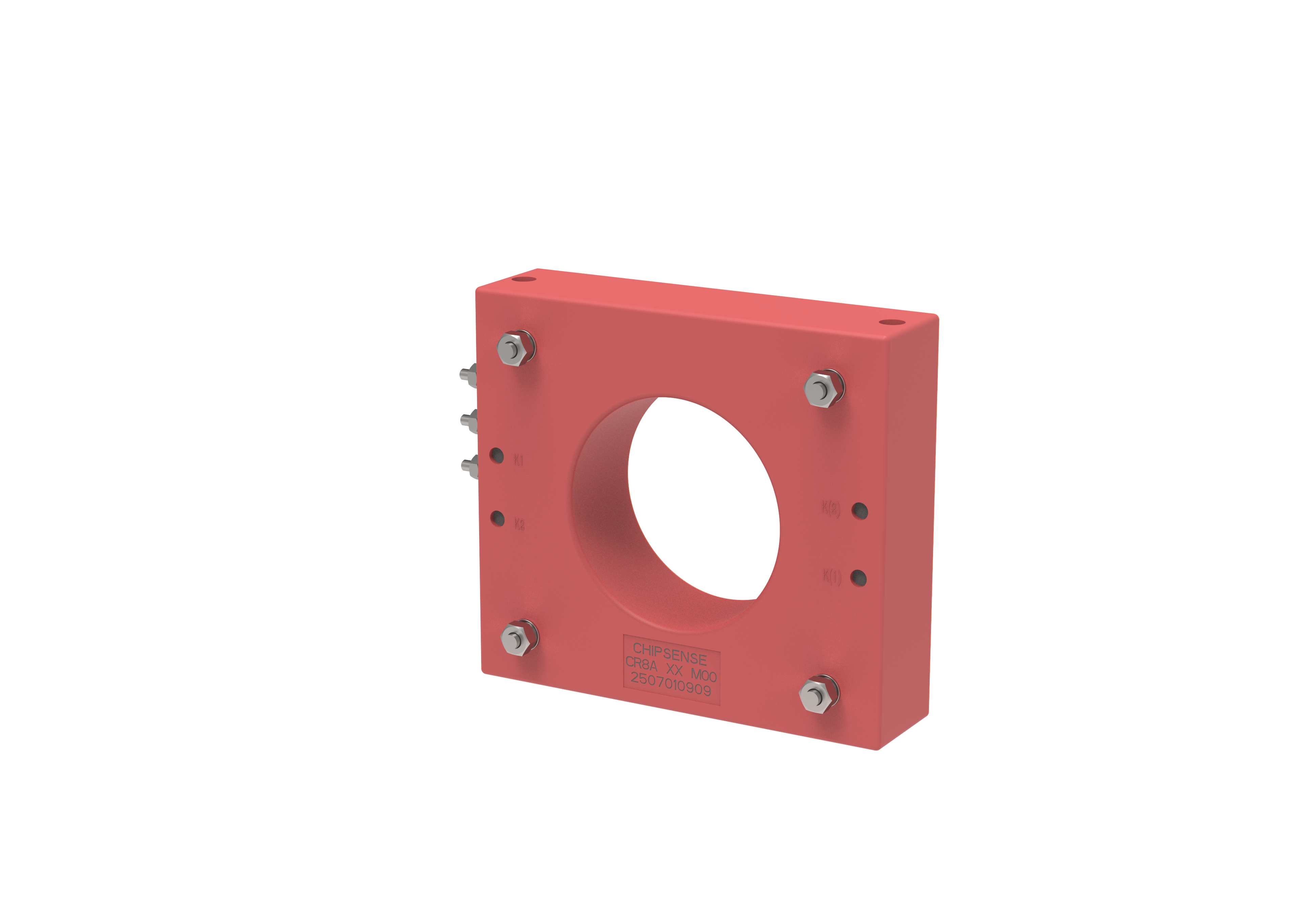

C Series Closed loop HALL sensor - CR8A 500 M00 - Image 1

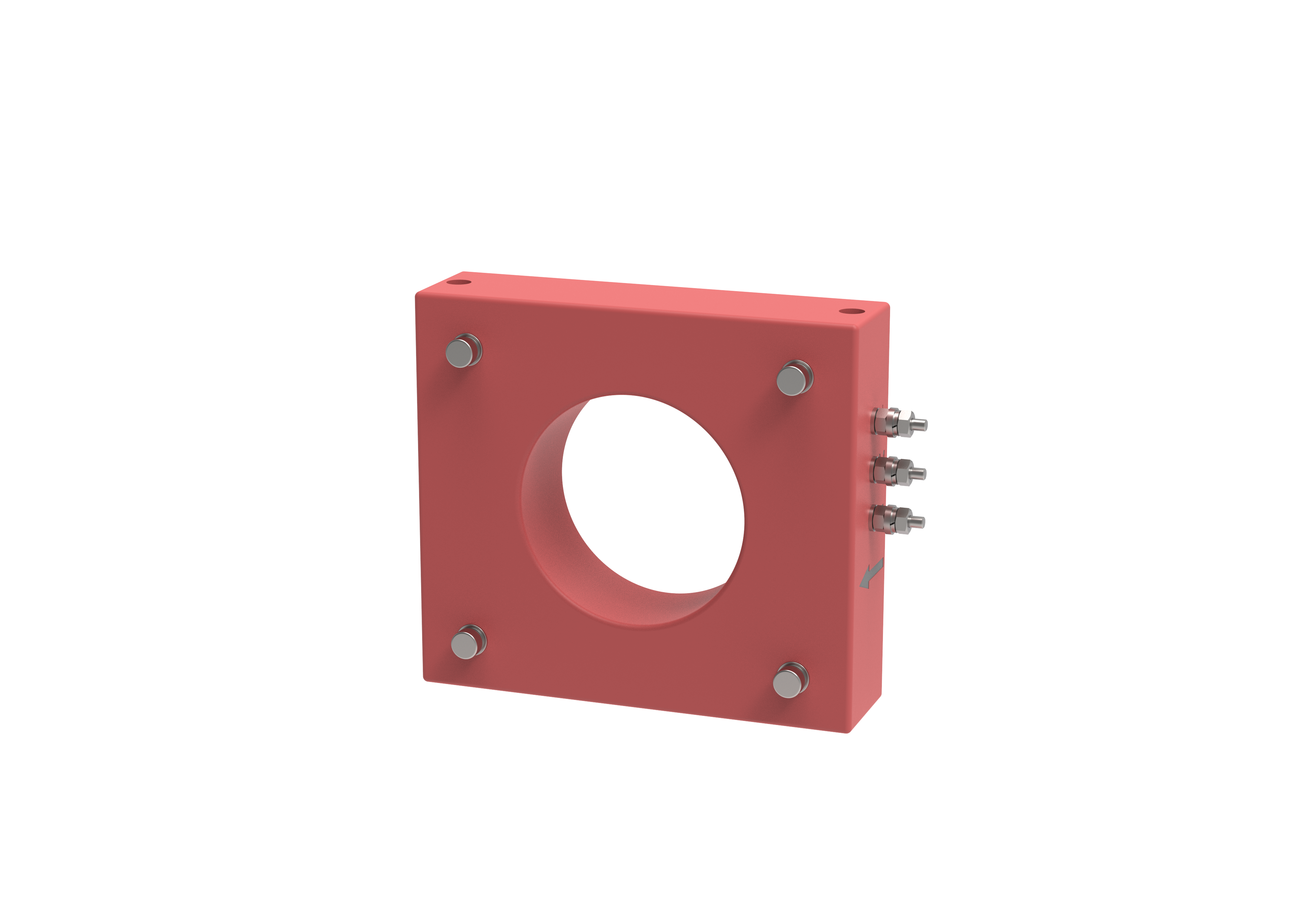

C Series Closed loop HALL sensor - CR8A 500 M00 - Image 2

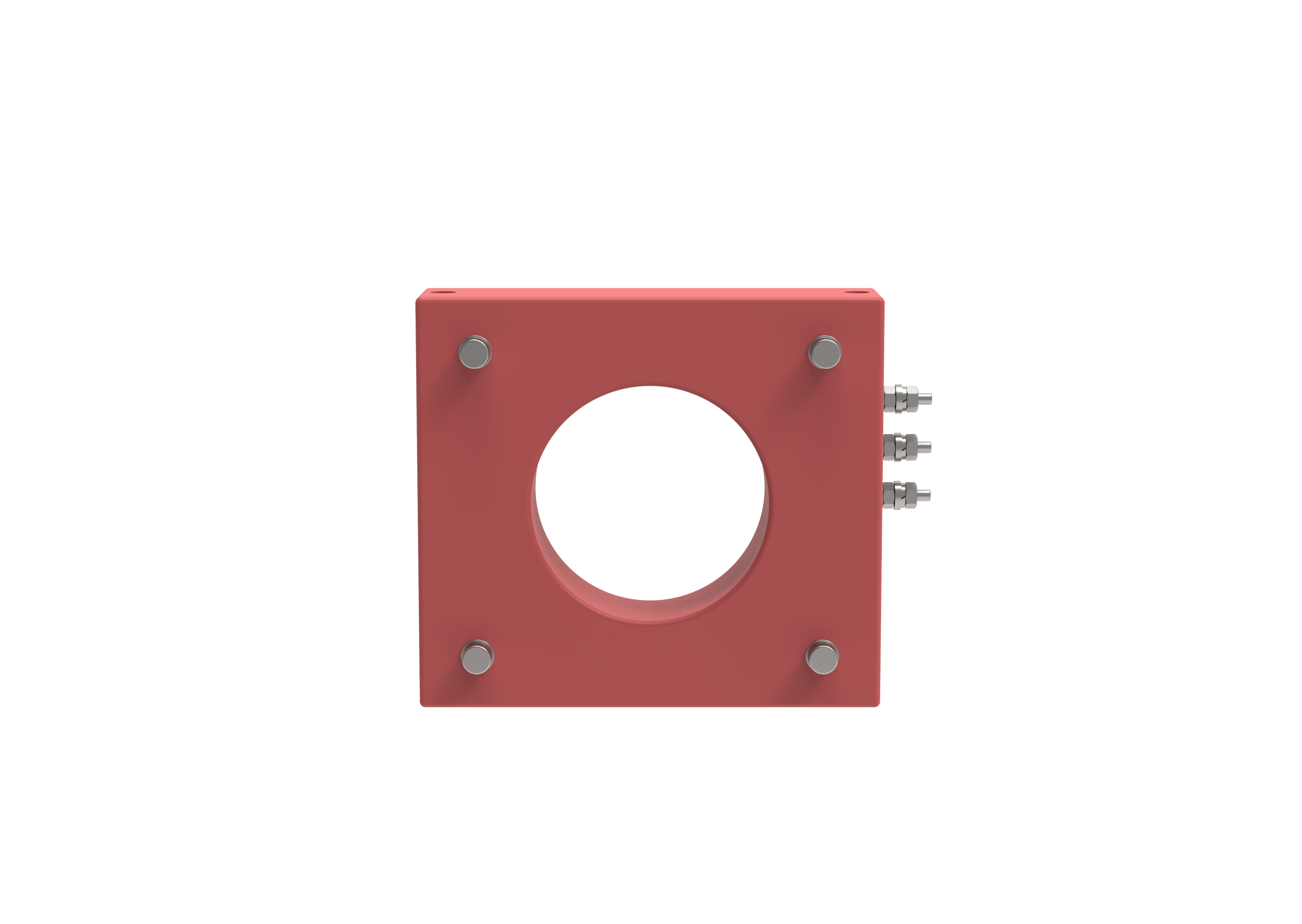

C Series Closed loop HALL sensor - CR8A 500 M00 - Image 3

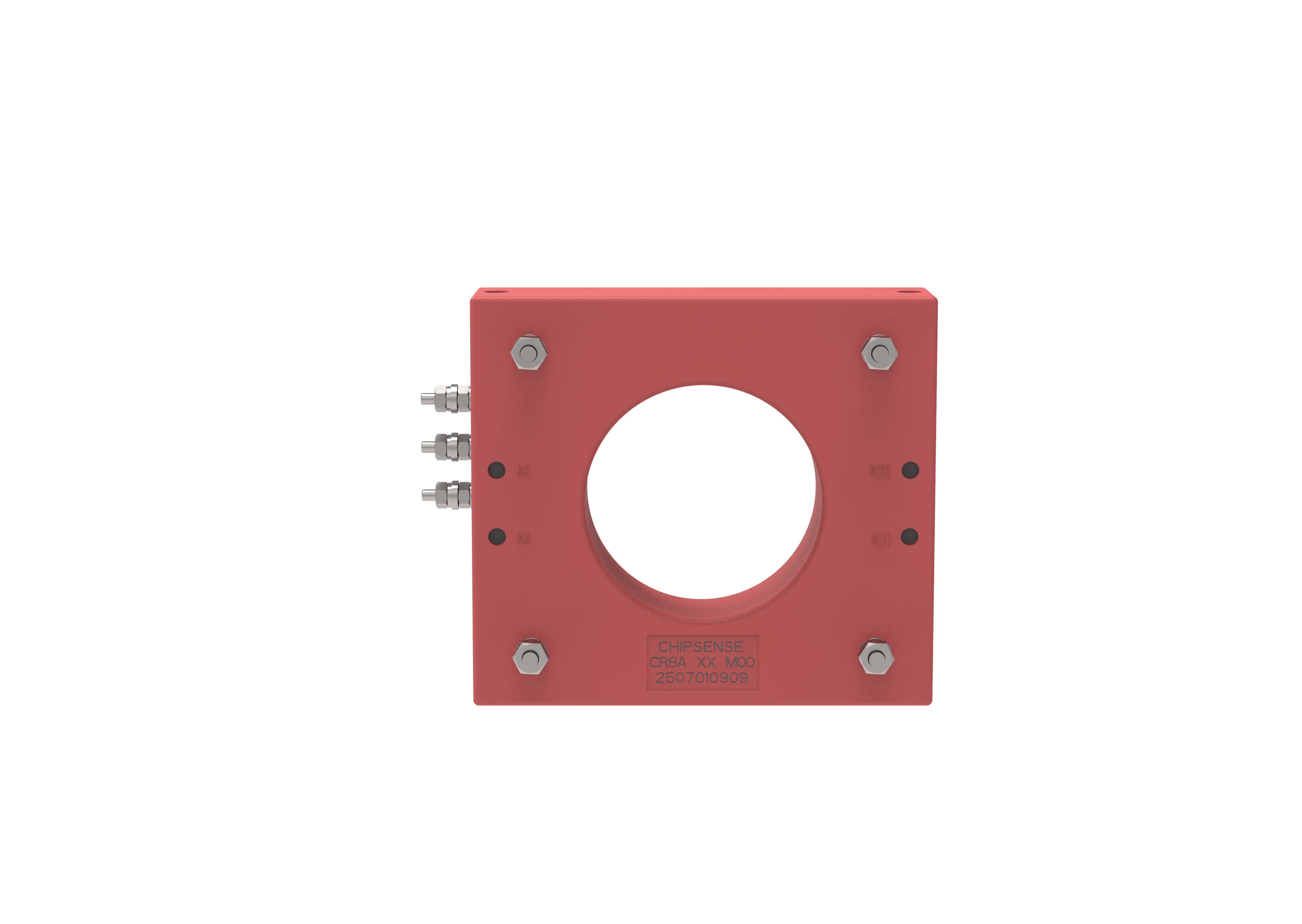

C Series Closed loop HALL sensor - CR8A 500 M00 - Image 4

120mm busbar current sensor used for energy storage

  • High accuracy 500A closed loop HALL current sensor
  • Very good linearity
  • High Frequency bandwidth
  • No insertion loss
  • Strong anti-interference ability
  • Standards:
  • IEC 60664-1:2020
  • IEC 61800-5-1:2022
  • IEC 62109-1:2010

Related Applications

Download manual

Specification

Primary nominal RMS current (A) 500
Measuring range (A) ±750
Supply voltage (V) ±15...24
Secondary output ±100mA
Accuracy (%) ±0.3
Output bandwidth 100
Operating temperature (°C) -45~85
Copper busbar (mm) Ø120
PCB
Others M6
