A Series Open loop Current Sensor

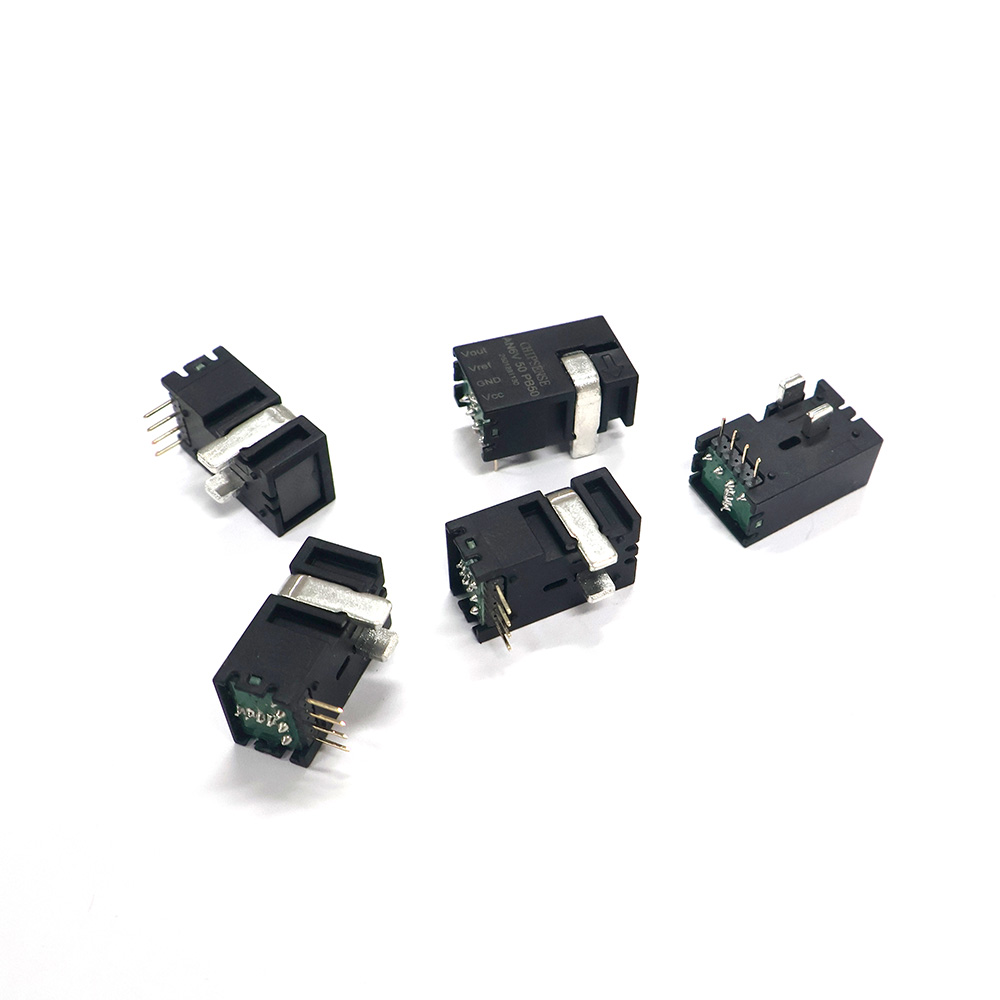

AN6V 20 PB50
Smart & Small Asic current sensor
Open loop current sensor using the Hall Effect
Galvanic insulation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Supply voltage: +5V
Height h=10.15mm
Standards:
IEC 60664-1:2020
IEC 61800-5-1:2022
IEC 62109-1:2010
Related Applications
UPS
Servo Driver
Switched Mode Power Supplies
Module Power Supplies
DC Motor Driver
AC Variable Speed Regulation (Servo Motor)
Combiner Box
MPPT
Download manual
Specification
Primary nominal RMS current (A)
20
Measuring range (A)
±50
Supply voltage (V)
5
Secondary output
±2V
Accuracy (%)
±0.8
Output bandwidth
250
Operating temperature (°C)
-40~105
Copper busbar (mm)
NA
PCB
+
