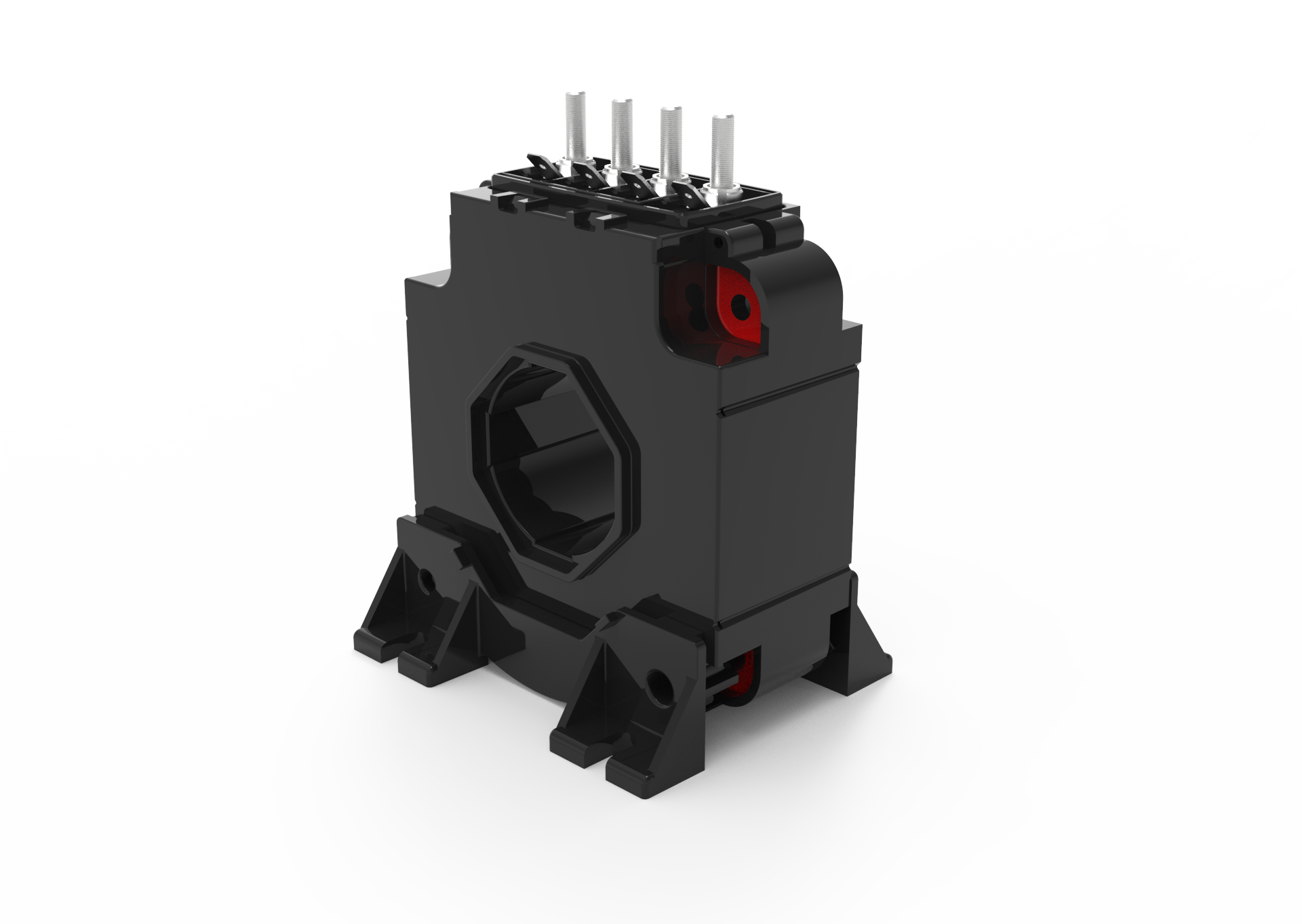

C Series Closed loop HALL sensor - CM8A 1000 H01 - Image 1
C Series Closed loop HALL sensor - CM8A 1000 H01 - Image 2

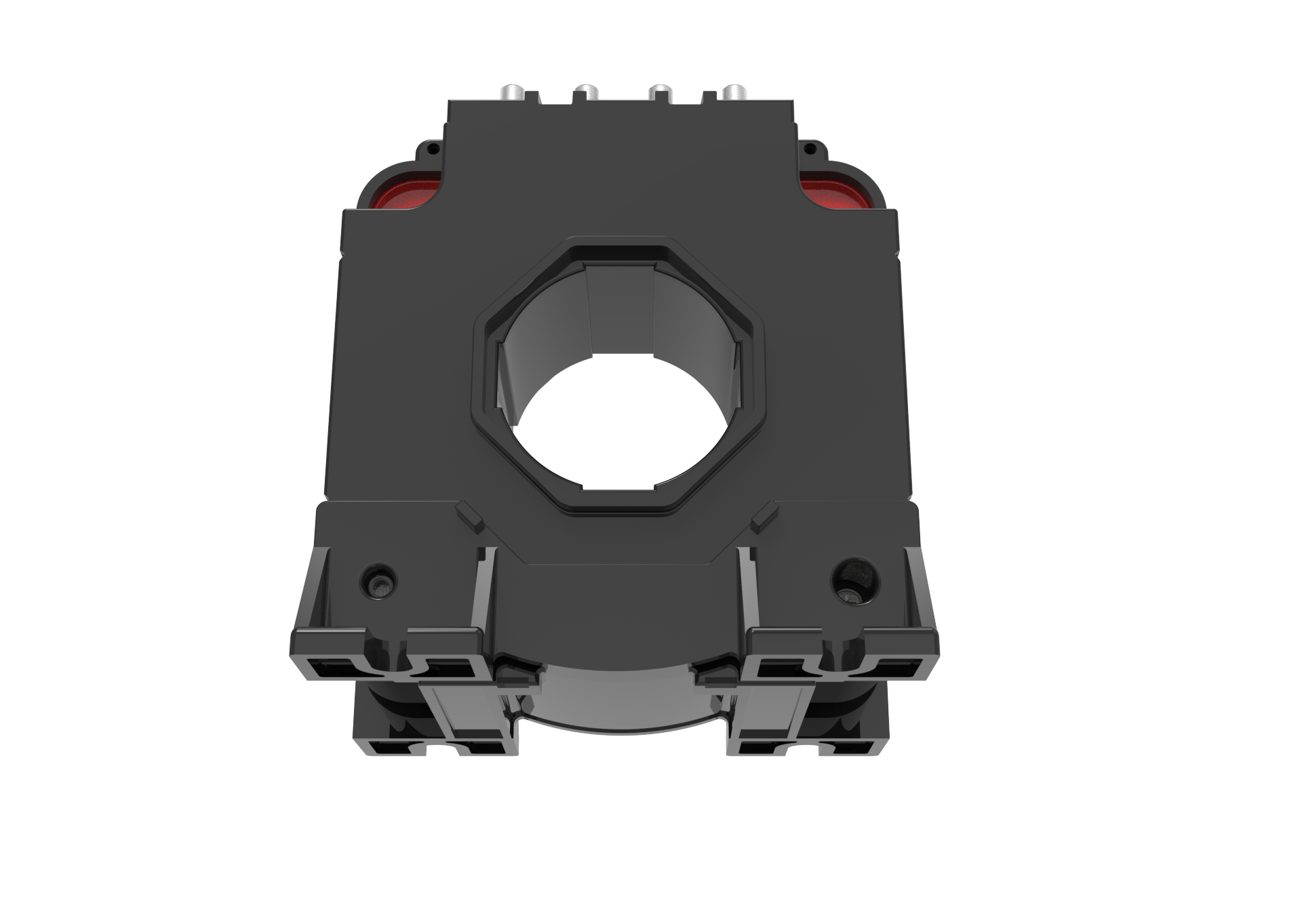

C Series Closed loop HALL sensor - CM8A 1000 H01 - Image 3
C Series Closed loop HALL sensor - CM8A 1000 H01 - Image 4

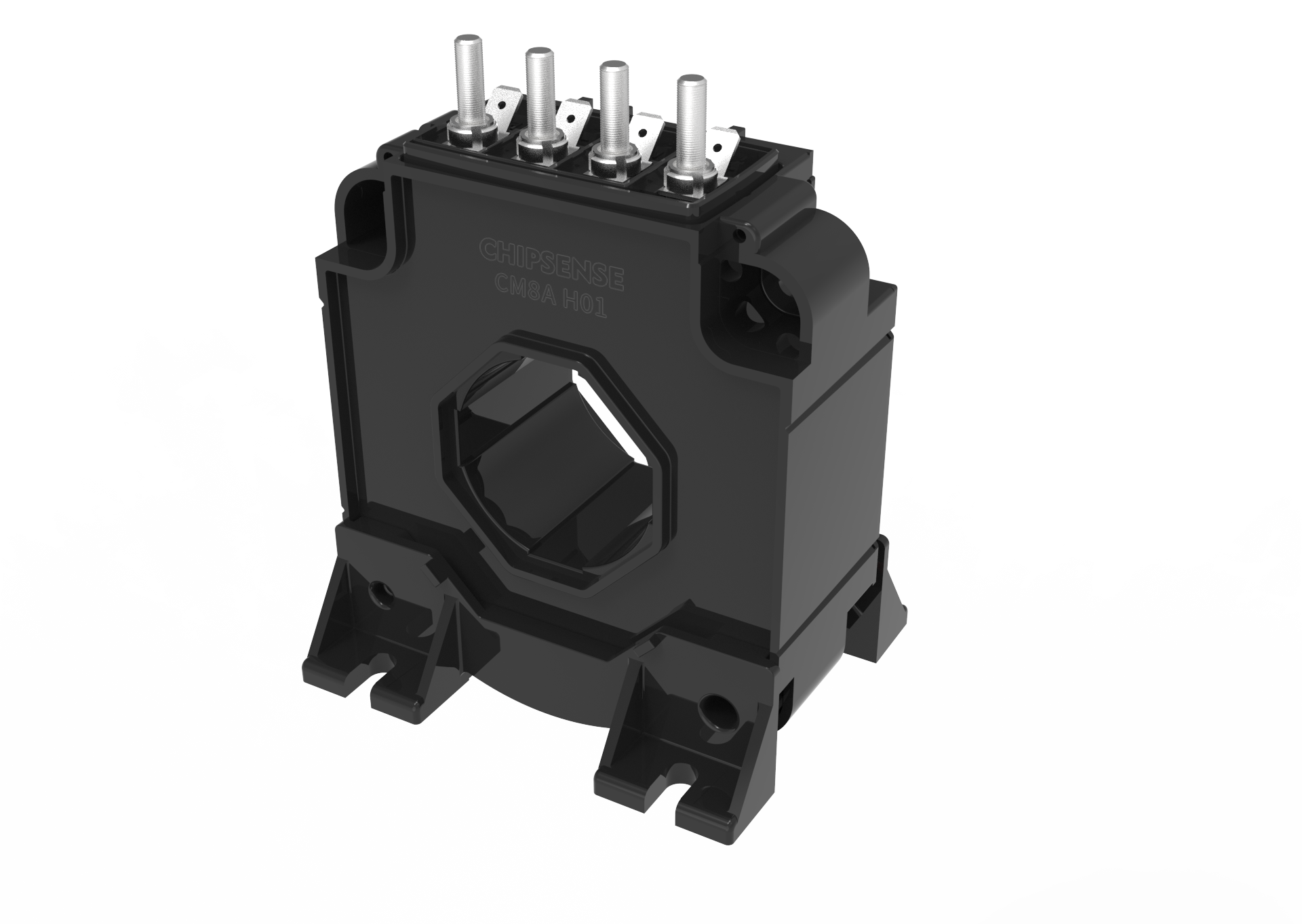

C Series Closed loop HALL sensor - CM8A 1000 H01 - Image 5

Closed loop Hall effect current sensor 1000A

  • Closed loop（compensated）current sensor using theHall effect
  • Galvanic insulation between primary and secondary
  • Insulating plastic case recognized according to UL94-V0
  • Very good linearity
  • Very low offset drift over temperature
  • No insertion loss
  • Standards:
  •  IEC 60664-1:2020
  • IEC 61800-5-1:2022
  • IEC 62109-1:2010

Related Applications

Download manual

Specification

Primary nominal RMS current (A) 1000
Measuring range (A) ±2400
Supply voltage (V) ±15...24
Secondary output ±200mA
Accuracy (%) ±0.4
Output bandwidth DC...100
Operating temperature (°C) -40~85
Copper busbar (mm) Φ42mm
PCB
Others M6
