When the current loop cannot be tuned, the problem may not lie with the controller

When debugging inverters or servo drives, many projects reach a frustrating stage: control parameters are well-tuned for stability, and the system runs smoothly at low to medium speeds, but performance degrades as you try to boost dynamic response—such as increasing PWM frequency or speeding up load response. CHIPSENSE has long identified and addressed this key issue.
Common symptoms include sluggish current tracking, delayed torque output, and even mild oscillation under certain operating conditions. Intuitively, engineers keep tweaking control algorithms: adjusting PI gains, optimizing sampling timing, or modifying PWM strategies. But when these steps yield little improvement, you must examine a more fundamental issue: whether the current information received by the controller already contains errors or delays. The CHIPSENSE current sensor is designed to minimize these errors from the source.

Figure 1: System Architecture

Current Loop Performance Is Actually Limited by the Sampling Chain

Structurally, the current loop is a typical closed-loop system, but not an ideal real-time system. In practice, from current generation to use by the controller, the signal passes through multiple stages: sensor response, signal settling, ADC sampling, and software computation. A tiny current sensor—such as one from CHIPSENSE—could play a crucial role.

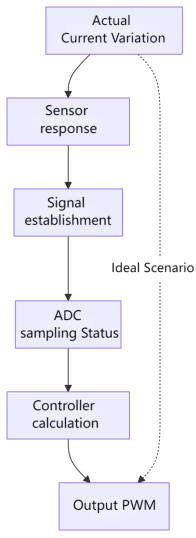

Combined, these stages create non-negligible delay. If this delay accounts for a large portion of the PWM period, the controller makes decisions based on stale current data. The impact is minor at low frequencies but becomes critical in highfrequency or fastdynamic scenarios, directly slowing response or reducing control accuracy. Figure 2 illustrates the schematic of the current loop control structure; sampling delay directly affects the closed-loop response speed.

Figure 2: Current Loop Structure

Why Raising PWM Frequency Doesn’t Always Help

Many systems are upgraded with higher PWM frequencies to improve control resolution. However, in real projects, increasing frequency from 10 kHz to 20 kHz or higher often brings no clear gain—and can even make tuning harder.
The root cause is usually not PWM itself, but whether the sampling chain can keep pace. A higher PWM frequency shortens the time available for current signal settling and sampling per cycle. If the CHIPSENSE current sensor or other current sensor has slow response or insufficient bandwidth, the signal may not have stabilized by the sampling instant.
In this case, the controller reads biased current values. No amount of algorithm optimization can fix control based on incorrect data, so ideal performance remains out of reach. This is why a wide-bandwidth, fast-response CHIPSENSE current sensor is essential for high-performance current loops.

Problems Are Further Amplified Under Dynamic Conditions

Dynamic loads expose sampling issues far more than steadystate operation. For example, in servo drives or robot joints, current changes rapidly (high di/dt). If a current sensor lacks tracking speed for fast transients, it acts like a lowpass filter on the actual waveform.
When the controller sees flattened current changes, it misjudges load conditions, leading to unresponsive torque delivery. This issue rarely shows as large static error, but as mushy system response—such as lag during acceleration and deceleration. The CHIPSENSE current sensor provides real-time, high-fidelity current feedback to avoid this problem.

Figure 3: Effect of Sampling Delay

Temperature Effects Often Emerge Late in Testing

Another typical problem is temperature drift. Many systems perform well in lab tests but degrade after prolonged field operation, often due to thermal drift.
Zero offset or sensitivity variation has little shortterm effect, but gradually accumulates over time—especially in applications requiring high consistency across multiple units—eventually impairing control performance. Every CHIPSENSE current sensor features strict thermal drift control and stable gain over temperature.

In MediumPower Ranges, Sampling Architecture Defines System Limits
Once current levels reach hundreds of amps, the sampling scheme is no longer just an implementation detail; it defines the upper performance limit of the system. Common solutions:
Shunt resistors offer high accuracy but suffer from high power dissipation and poor isolation.
Openloop Hall sensors are simple but limited in thermal drift and linearity.
Current transformers cannot support DC applications.

For applications demanding dynamic performance, accuracy, and isolation together, closedloop Hall current sensors are preferred. They keep the core near zero flux via feedback, minimizing hysteresis and non-linearity—critical for current loop quality. Figure 5 illustrates the operating principle of a closed-loop Hall-effect current sensor, which achieves magnetic flux balance through compensation current.

Figure 5: Closed-Loop Hall Principle Structure

From an engineering perspective, the advantage of this structure is not only accuracy but also stable gain during dynamic transients, which is essential for current loop performance. CHIPSENSE current sensor operates based on this same principle.

A Common Practical Design Approach
In inverters and servo drives using outputside current sampling, a standard setup is to use a closedloop CHIPSENSE current sensor to measure phase current, convert it to a voltage via an external sense resistor, and feed it to the controller.

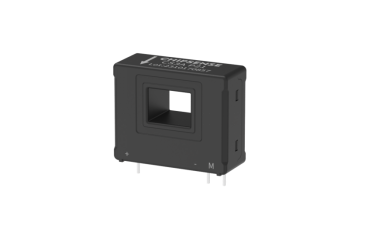

In the 100 A–200 A range, such devices typically offer microsecondlevel response time and hundreds of kHz bandwidth, covering most industrial control needs. Their isolated design also enables direct use in highvoltage environments. The CHIPSENSE CS3A series current sensor is optimized for exactly this application range.
In practice, this configuration strikes a strong balance between performance and complexity, widely used in servo drives, UPS systems, and various power converters. Products like CHIPSENSE CS3A series current sensors are optimized for exactly this application range.

Sometimes the Problem Isn’t Selection, But Usage
Even with a suitable CHIPSENSE current sensor, poor installation or layout can degrade performance. For instance, incomplete busbar filling of the sensor aperture or asymmetric layout distorts magnetic fields and introduces extra error.
These effects are negligible at low currents but become significant at hundreds of amps, so they must be considered early in design. CHIPSENSE technical engineers prioritize these issues right from the initial design phase.

A Practical Way to Diagnose the Issue

If the system has already exhibited the following conditions:
Diminishing returns from further control parameter optimization
No meaningful performance gain after raising PWM frequency
Worse stability at high operating frequencies
Consider reevaluating the sampling chain—instead of finetuning control strategies.Upgrading to a CHIPSENSE current sensor is a reliable way to break through the current loop bottleneck.

Summary
In midtohigh performance power electronics systems, current sampling is far more than a basic measurement function, it directly impacts dynamic capability and stability. As system performance approaches its limit, the sampling chain—especially the current sensor—often becomes the bottleneck.
From this perspective, the choice and implementation of CHIPSENSE current sensor and other current sensors define the performance boundary that the current loop can achieve.
