In the hot summer, all kinds of air conditioners, lighting, computers and other electrical equipment are fully turned on, and the power pressure is high, which can easily cause power instability. As a "life infra" to ensure the continuous power supply of key equipment, the stability and reliability of uninterruptible power supply (UPS) are particularly important. Among many factors that affect the performance of UPS, leakage current detection and control is a key part to ensure its safe and efficient operation. Today, let's talk about how CHIPSENSE FR2V H00 series DC leakage current sensors escort the stable operation of UPS during the peak power consumption period in summer.

Summer power consumption peaks, challenges facing UPS

In summer, due to rising temperatures and the widespread use of high-power appliances such as air conditioners, the load on the power grid increases significantly, resulting in frequent problems such as voltage fluctuations and frequency instability. For UPS, this not only means that they need to withstand greater load pressure, but also may cause internal components to perform poorly due to external disturbances, or even cause failures. Especially in high humidity environments, the insulation performance inside the equipment may be affected, further exacerbating the risk of leakage currents. CHIPSENSE will rise to the challenge.

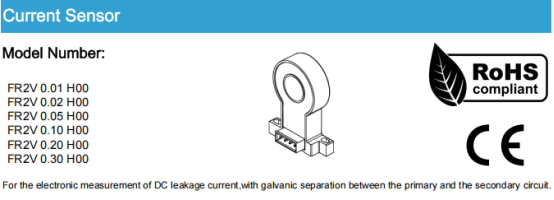

CHIPSENSE FR2V H00: A Sharp Tool for Accurate Leakage Current Detection

CHIPSENSE FR2V H00 DC leakage current sensor, as a leakage current detection device specially designed for DC systems, plays an important role in UPS systems with its characteristics of high precision, wide measurement range, and fast response.

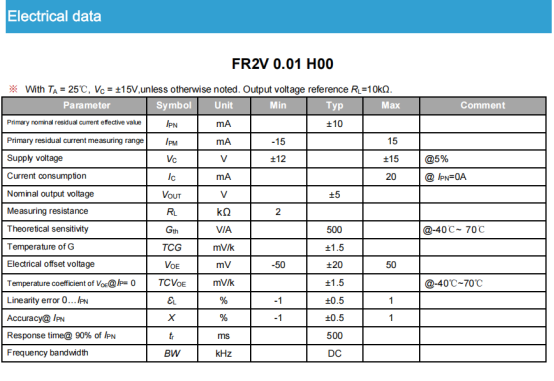

1.High-precision measurement: Using advanced fluxgate technology, CHIPSENSE FR2V H00 current sensor can achieve accurate measurement of DC leakage current with small errors and high reliability. This high-precision measurement capability is particularly important during the peak electricity consumption period in summer, because it can detect and deal with small leakage current changes in a timely manner to prevent equipment damage or safety hazards caused by leakage current accumulation.

2.Wide measurement range: CHIPSENSE FR2V H00 current sensor has a measurement range of 0.01A to 0.3A, which can meet the leakage current detection needs of different UPS systems. Whether it is a small household UPS or a large industrial UPS, accurate leakage current monitoring can be achieved through CHIPSENSE FR2V H00 current sensor.
3.Fast response: With a response speed of up to 500ms, CHIPSENSE FR2V H00 current sensor can accurately capture the change of leakage current in a short time, providing a strong guarantee for real-time monitoring and rapid response of the UPS system. This rapid response capability is particularly important during the peak summer power consumption period, because it can quickly detect and deal with abnormal leakage current and prevent the failure from expanding.
4.Good stability: Whether it is in harsh environments such as high temperature, low temperature or high humidity, CHIPSENSE FR2V H00 current sensor can maintain stable performance and ensure the accuracy of measurement. This is essential for UPS systems during peak summer power consumption, as it ensures that the UPS system can still operate stably in extreme weather conditions.

Application Scenario of CHIPSENSE FR2V H00 current sensor in UPS System
1.Residual current measurement: In UPS systems, CHIPSENSE FR2V H00 current sensor can be used to measure residual current, detect and deal with leakage current problems caused by insulation aging, damage, etc., and prevent equipment damage or safety hazards caused by leakage current accumulation.
2.Photovoltaic inverter leakage current detection: For UPS systems equipped with photovoltaic inverters, CHIPSENSE FR2V H00 can be used to detect the leakage current at the output of the inverter to ensure the safe and stable operation of the photovoltaic power generation system.
3.Leakage detection of stacked DC power supplies: In a UPS system composed of multiple stacked DC power supplies, CHIPSENSE FR2V H00 current sensor can be used to detect leakage current between power modules to prevent damage or performance degradation caused by leakage current.

Conclusion
During the peak power consumption period in summer, the stability and reliability of the UPS system are crucial to ensure the continuous power supply of key equipment. CHIPSENSE FR2V H00 current snesor DC leakage current sensor plays an irreplaceable role in the UPS system due to its high precision, wide measurement range, and fast response. Through accurate leakage current detection and control, CHIPSENSE FR2V H00 current sensor can effectively improve the safety and stability of the UPS system, providing strong support for power security during the peak power consumption period in summer.

CHIPSENSE is a national high-tech enterprise that focuses on the research and development, production, and application of high-end current and voltage sensors, as well as forward research on sensor chips and cutting-edge sensor technologies. CHIPSENSE is committed to providing customers with independently developed sensors, as well as diversified customized products and solutions.

“CHIPSENSE, sensing a better world!
