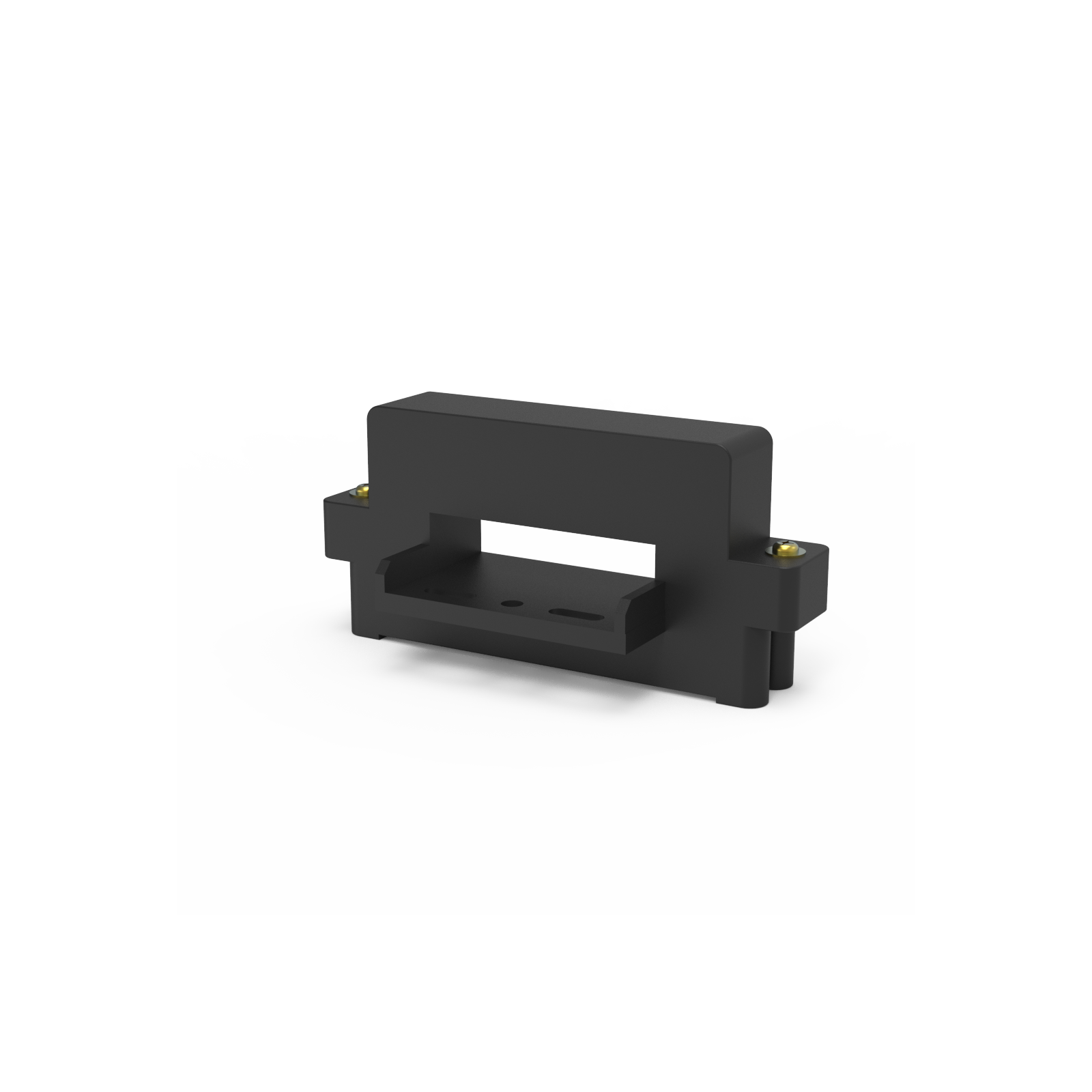

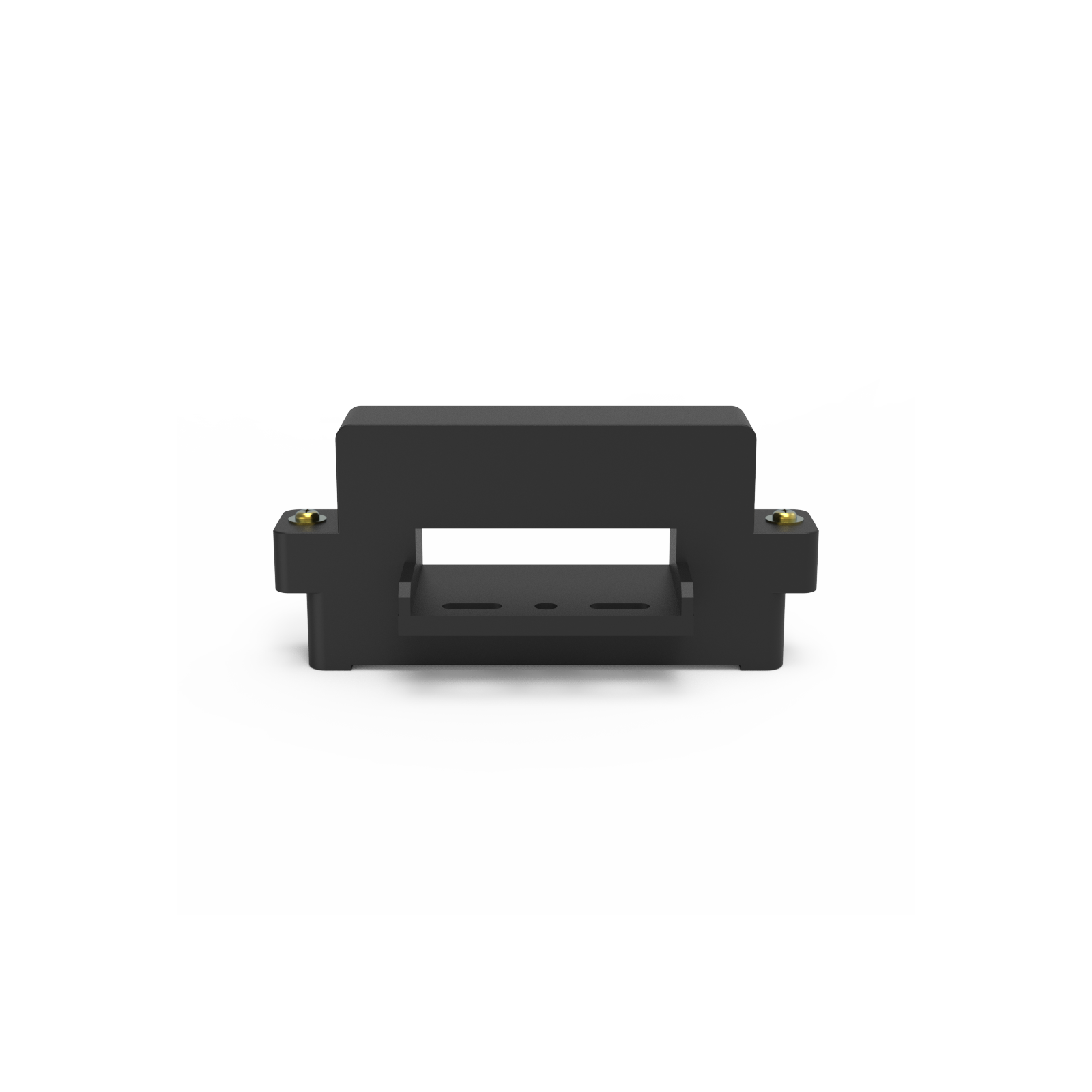

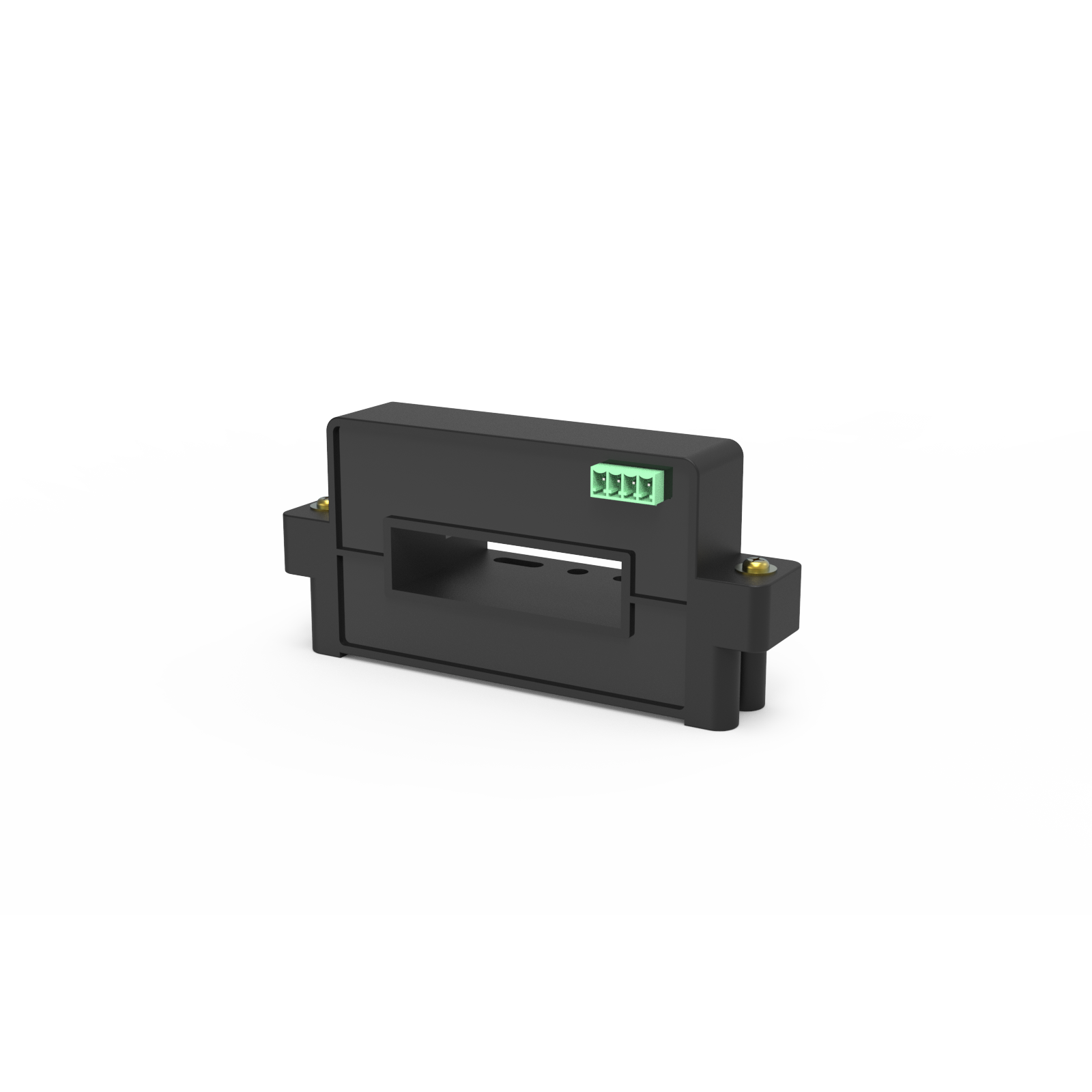

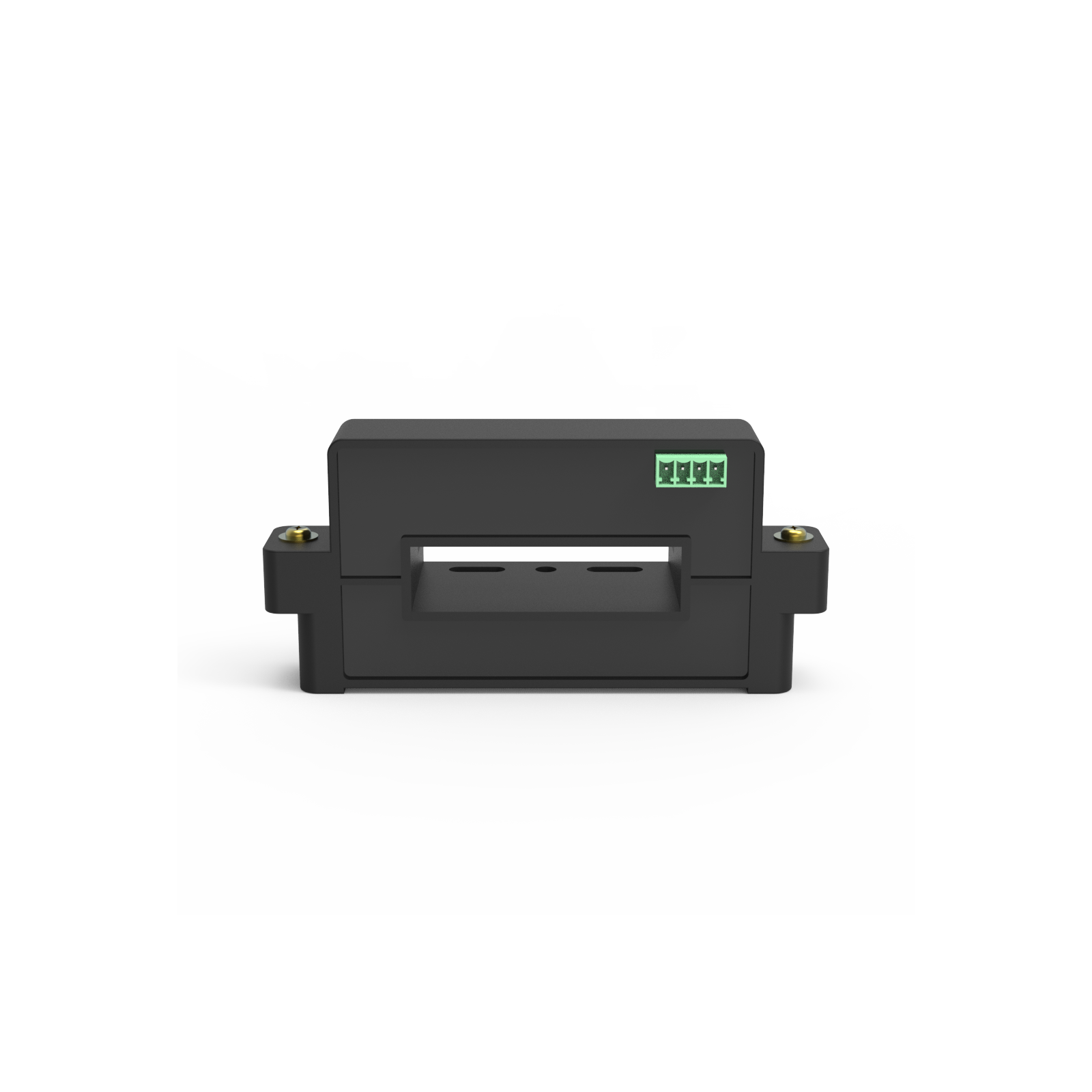

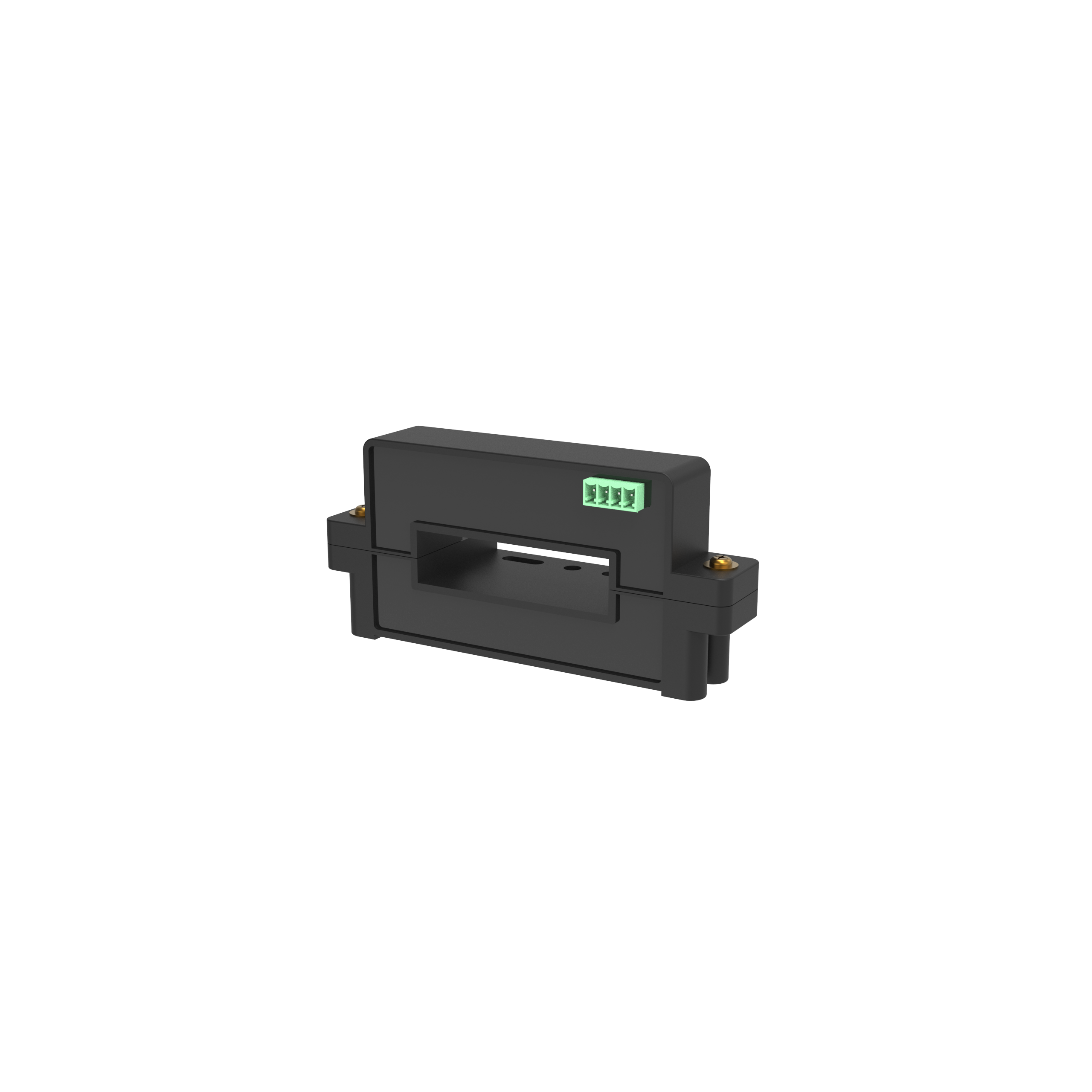

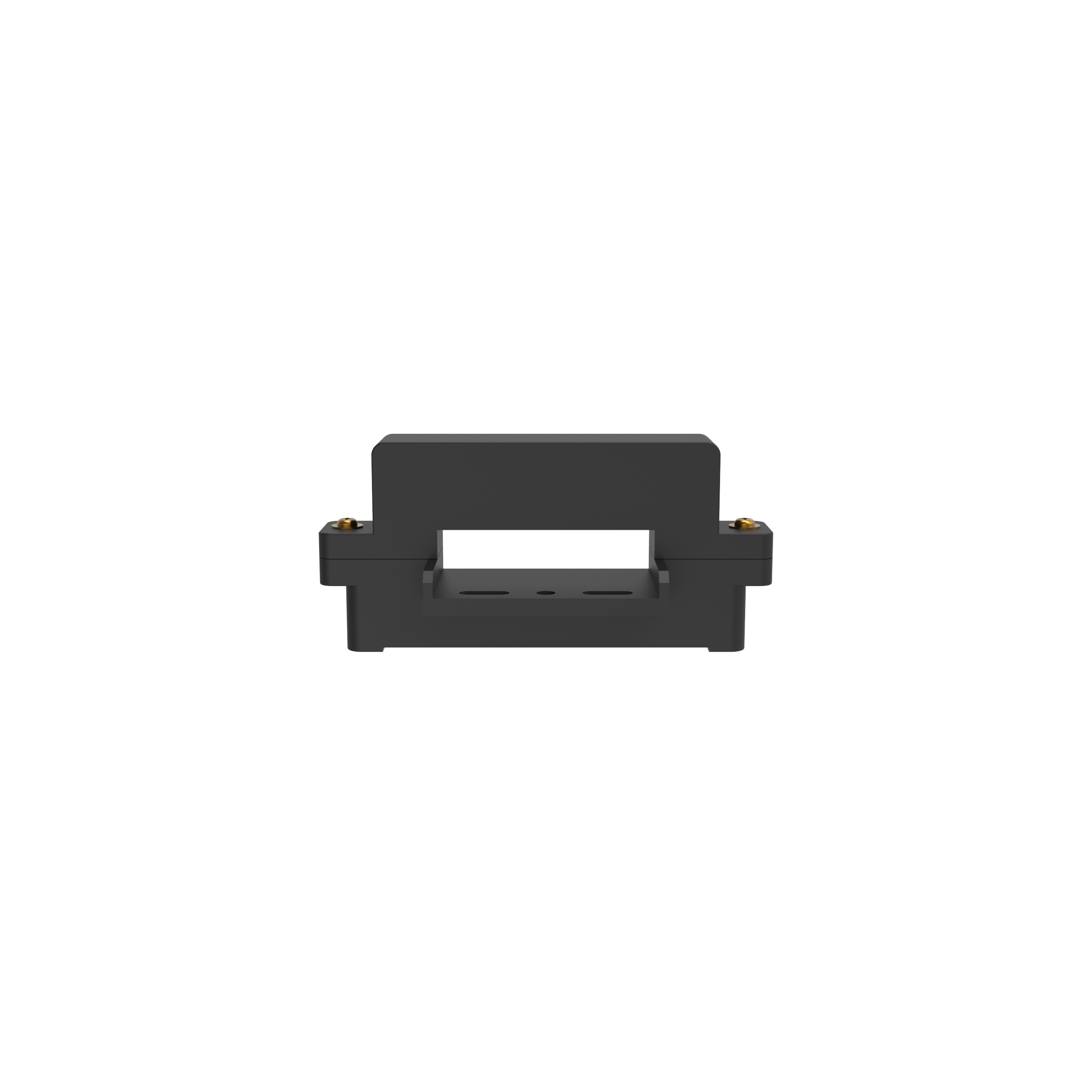

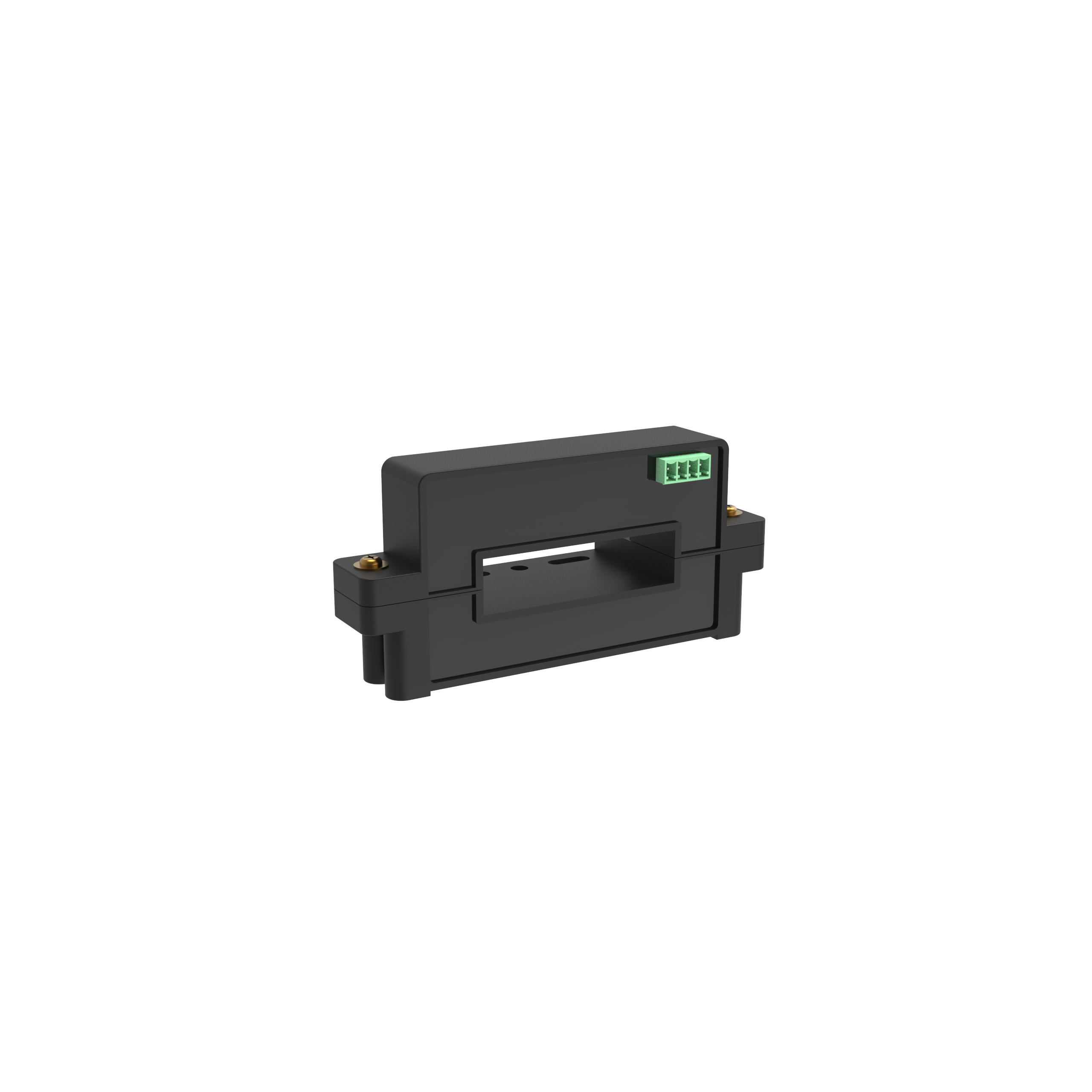

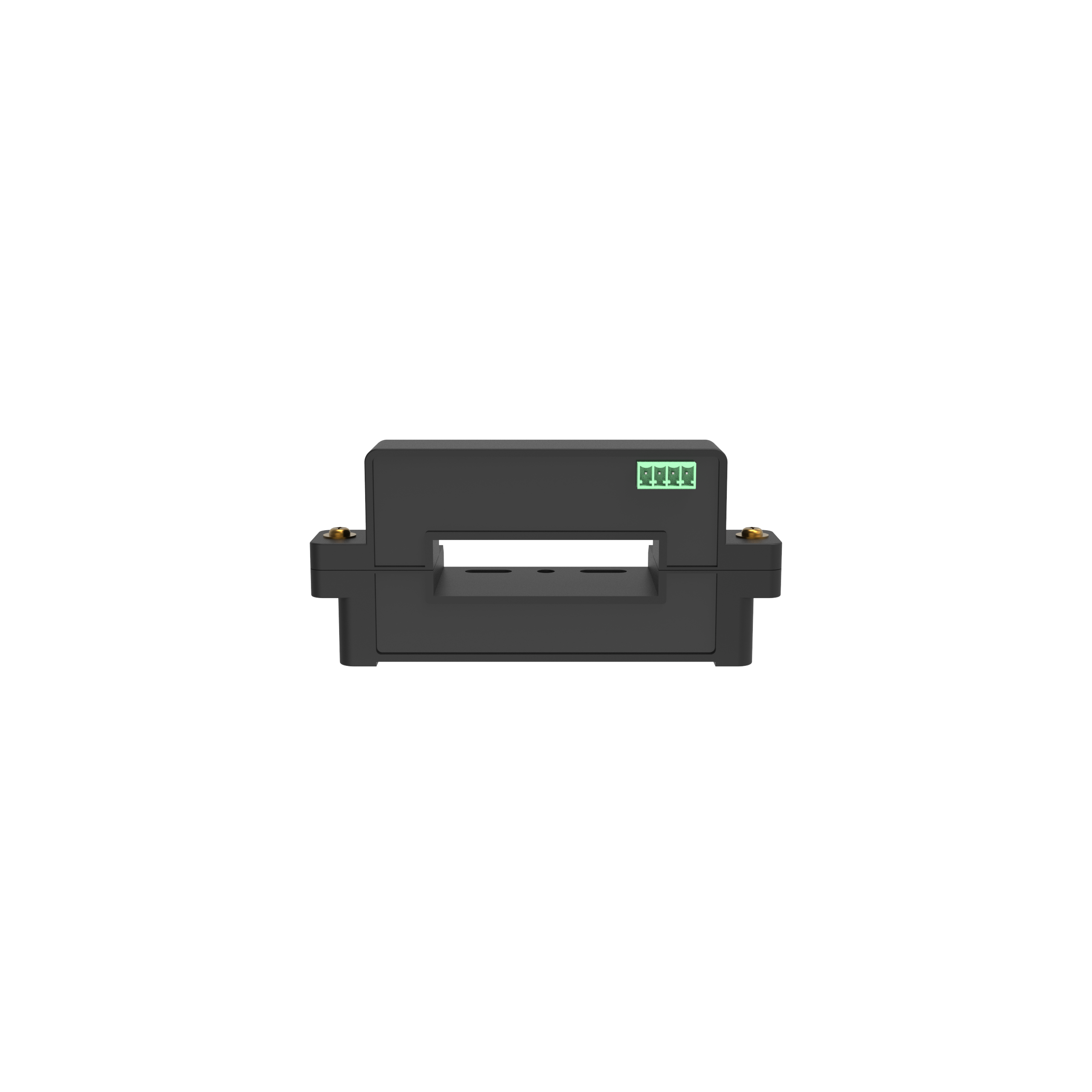

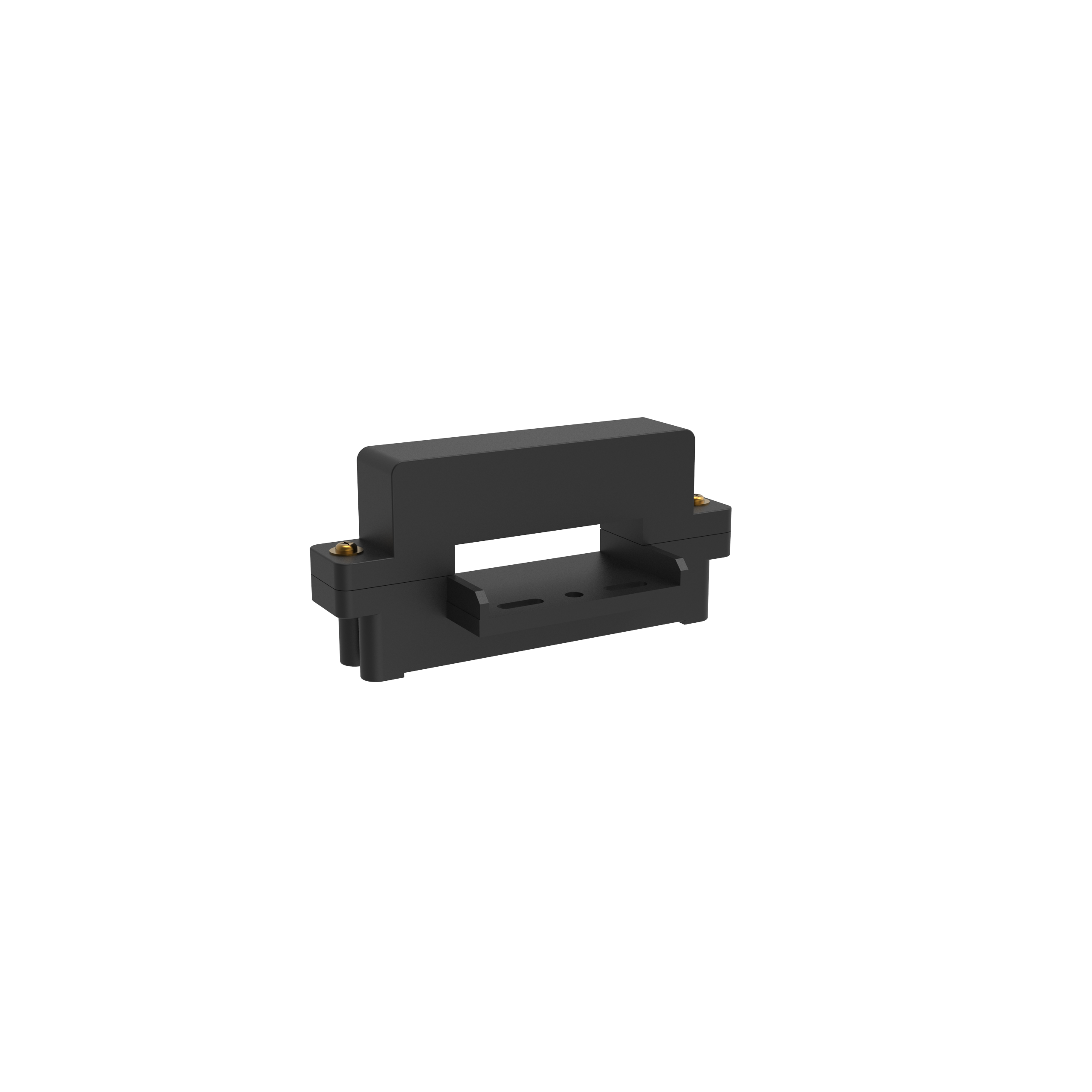

Split Core Hall Effect Current Sensor-HK5V 1000 H20
Split Core Hall Effect Current Sensor-HK5V 1000 H20
Split Core Hall Effect Current Sensor-HK5V 1000 H20
Split Core Hall Effect Current Sensor-HK5V 1000 H20

Product description

  • Open loop sensor using the Hall Effect
  • Galvanic insulation between primary and secondary
  • Insulating plastic case recognized according to UL 94-V0
  • No insertion loss
  • Double Hall design
  • Open installation
  • Battery pack current detection
  • Smart power grid
  • Standards:
  • IEC 60664-1:2020
  • IEC 62109-1:2010
  • IEC 61800-5-1:2022

Related Applications

Download manual

Specification

Primary nominal RMS current (A) ±1000
Measuring range (A) ±1500
Supply voltage (V) ±12...15
Secondary output ±4V
Accuracy (%) ±1.0
Output bandwidth 20
Operating temperature (°C) -25~85
Copper busbar (mm) 16mm×64mm
PCB
Others 2EDG-4P-3.81
