C Series Closed loop HALL sensor

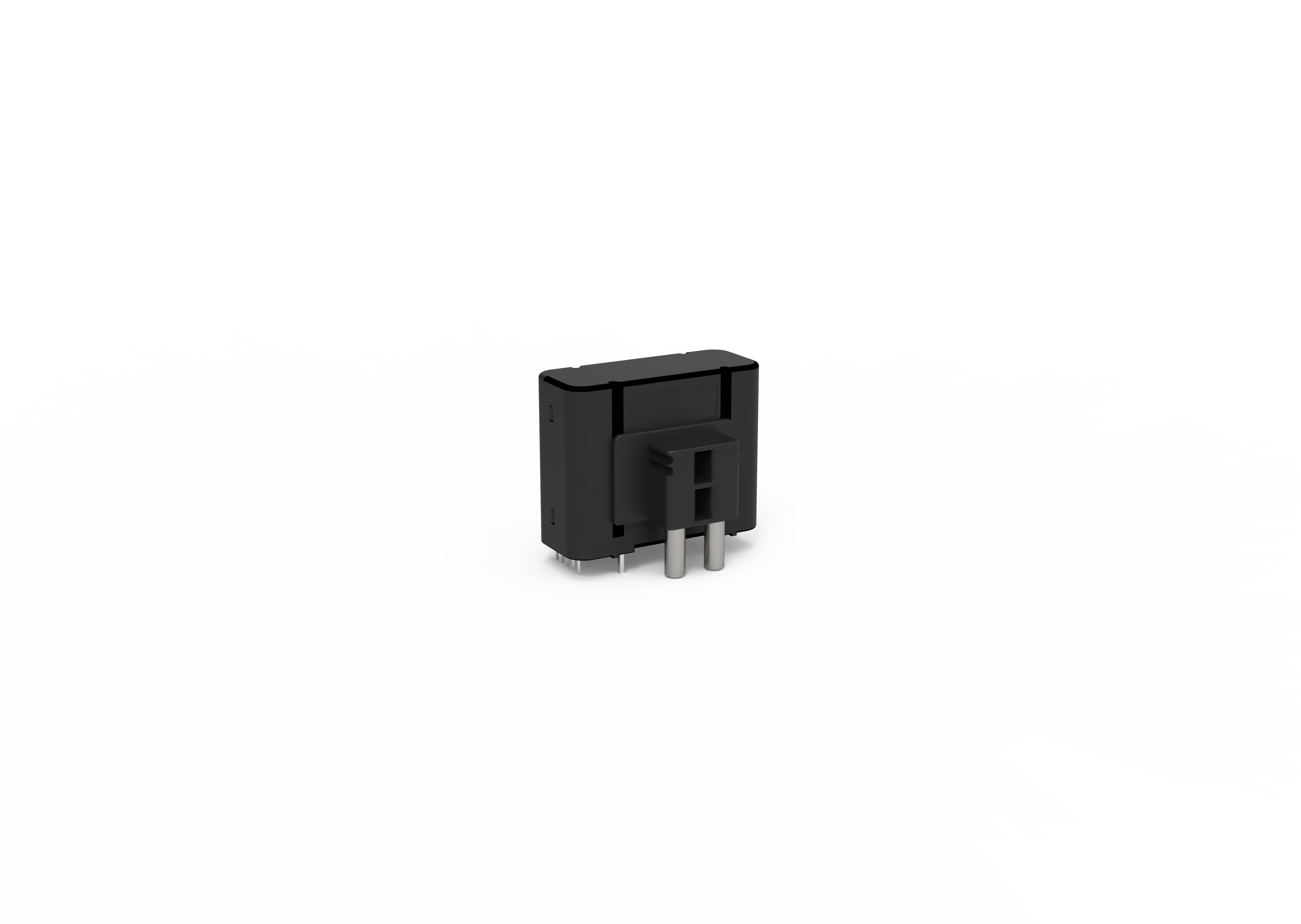

CS1V 200 PB00
Product description
Closed loop (compensated) current sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
Very good linearity
High accuracy
Very low offset drift over temperature
No insertion loss
Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010
Related Applications
UPS
Switched Mode Power Supplies
Welding machine power supplies
AC Variable Speed Regulation (Servo Motor)
Inverter
Download manual
Specification
Primary nominal RMS current (A)
200
Measuring range (A)
±450
Supply voltage (V)
5
Secondary output
0.25...4.75V
Accuracy (%)
<1.1
Output bandwidth
>200
Operating temperature (°C)
-40~85
Copper busbar (mm)
4 x φ5.2 mm
PCB
+
Others
