Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	Others
HS3V 800 H00	800	+2400	±15	±4V	+1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A

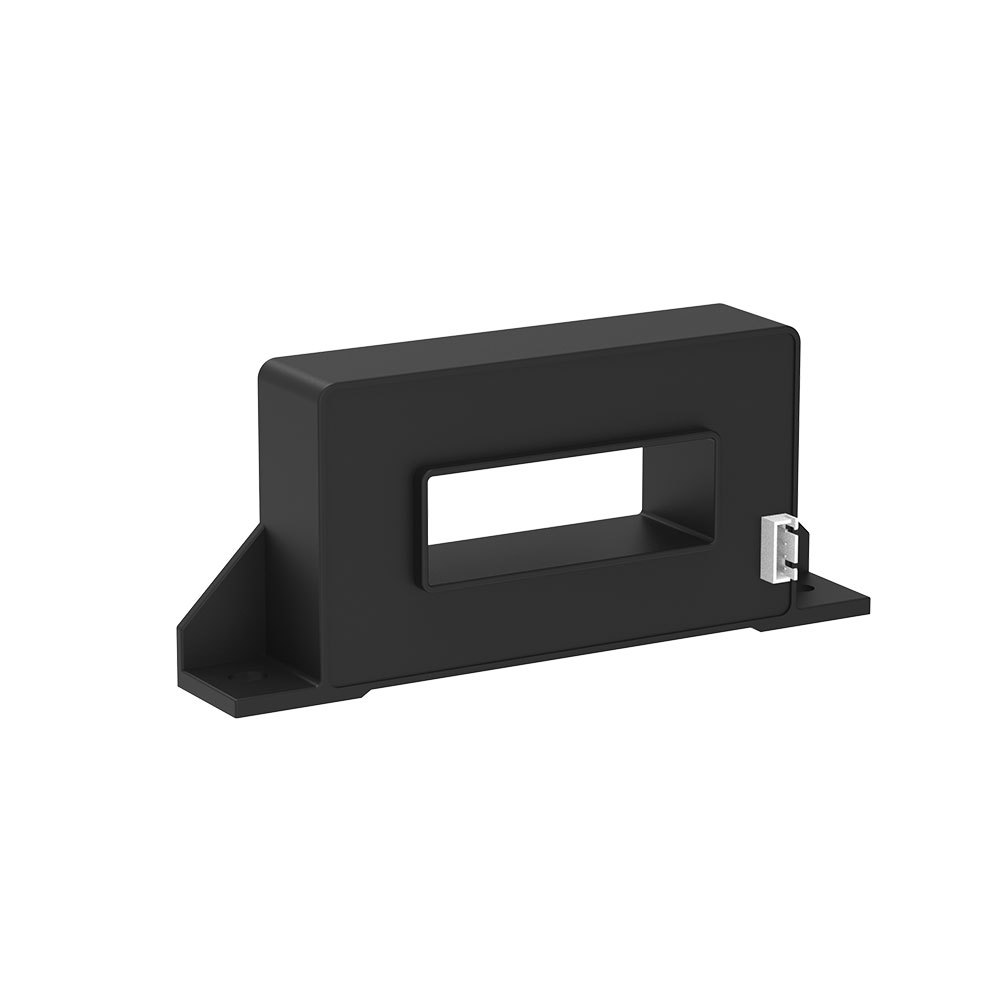

HS3V 800 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How Hall Sensors Work A current sensor is a device that detects electric current in a conductor and generates a signal proportional to that current, enabling monitoring and control in various applications. more... Products Data Sheet
HS3V 1500 H00	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 1500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High Voltage 500-3000A Current measurement Sensor more... Products Data Sheet
HS3V 2000 H00	2000	±5500	±15	±4V	±1	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 2000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 The current sensor series can perform electronic measurement of direct current, alternating current or pulse current, while ensuring electrical isolation between the primary and secondary circuits. The instantaneous voltage output range of these sensors is +/-4 V, and they are powered by a +/-15 V bipolar power supply. The DC bandwidth is 25 KHz. Current sensor is designed based on the Hall effect open-loop technology and is specifically tailored for industrial applications. more... Products Data Sheet
HS3V 3000 H00	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 3000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor Measurement of 500A 600A 800A 1000A 1500A 2000A 2500A 3000A 15V power supply 4V more... Products Data Sheet
HS3V 500 H00	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 500 H01	500	±1500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 600 H00	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 600 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 600 H01	600	±1800	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 600 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 800 H01	800	±2400	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 800 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1000 H00	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 1000 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1000 H01	1000	±3000	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 1000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 1500 H01	1500	±4500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 1500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2000 H01	2000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 2000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2500 H00	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	MOLEX 5045-04A
HS3V 2500 H00 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 2500 H01	2500	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 2500 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet
HS3V 3000 H01	3000	±5500	±15	±4V	±1.0	25	-40~85	64 x 21 mm	XH-4A
HS3V 3000 H01 Open loop current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion losses Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 more... Products Data Sheet

HS3V 800 H00

HS3V 1500 H00

HS3V 2000 H00

HS3V 3000 H00

HS3V 500 H00

HS3V 500 H01

HS3V 600 H00

HS3V 600 H01

HS3V 800 H01

HS3V 1000 H00

HS3V 1000 H01

HS3V 1500 H01

HS3V 2000 H01

HS3V 2500 H00

HS3V 2500 H01

HS3V 3000 H01
