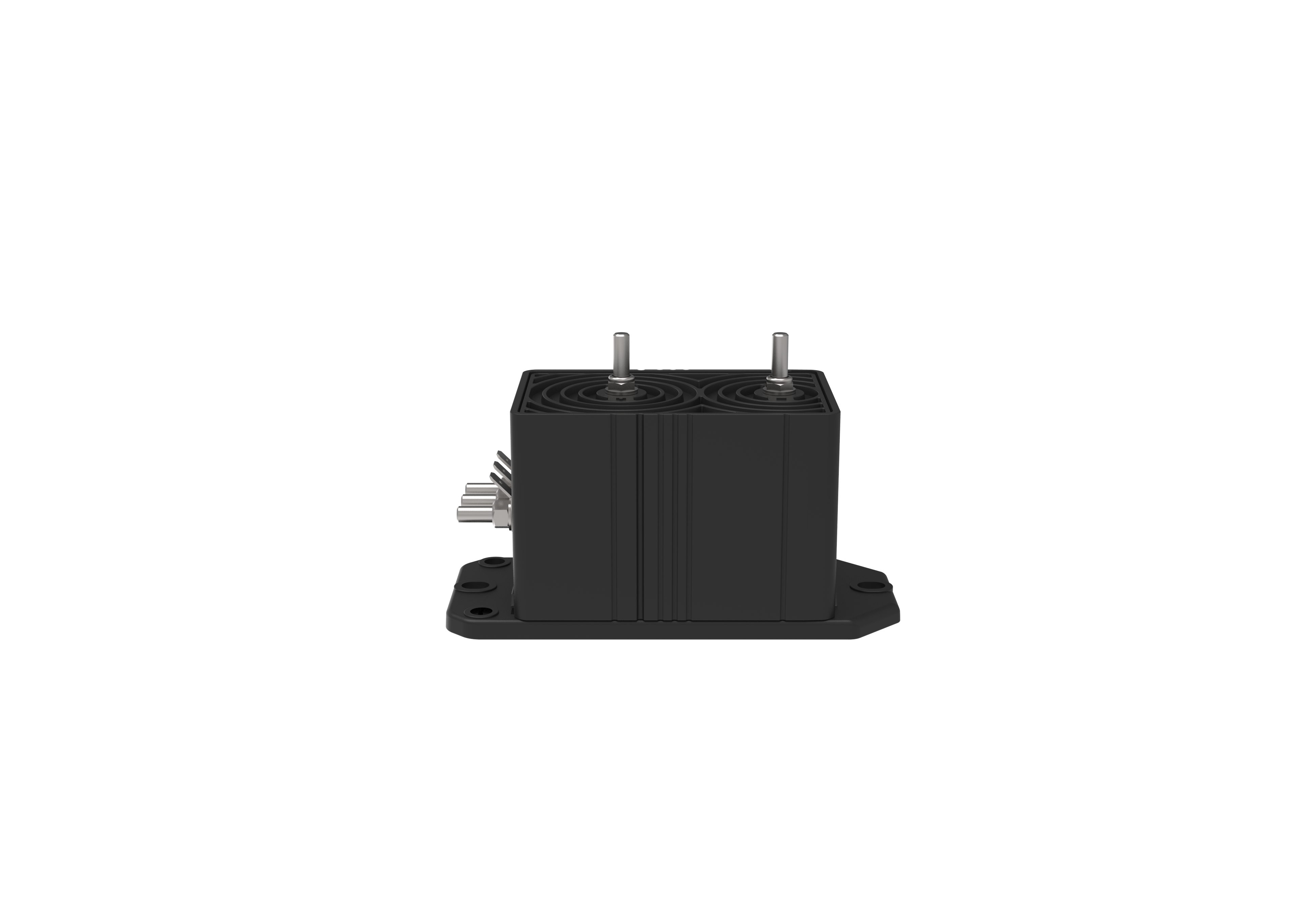

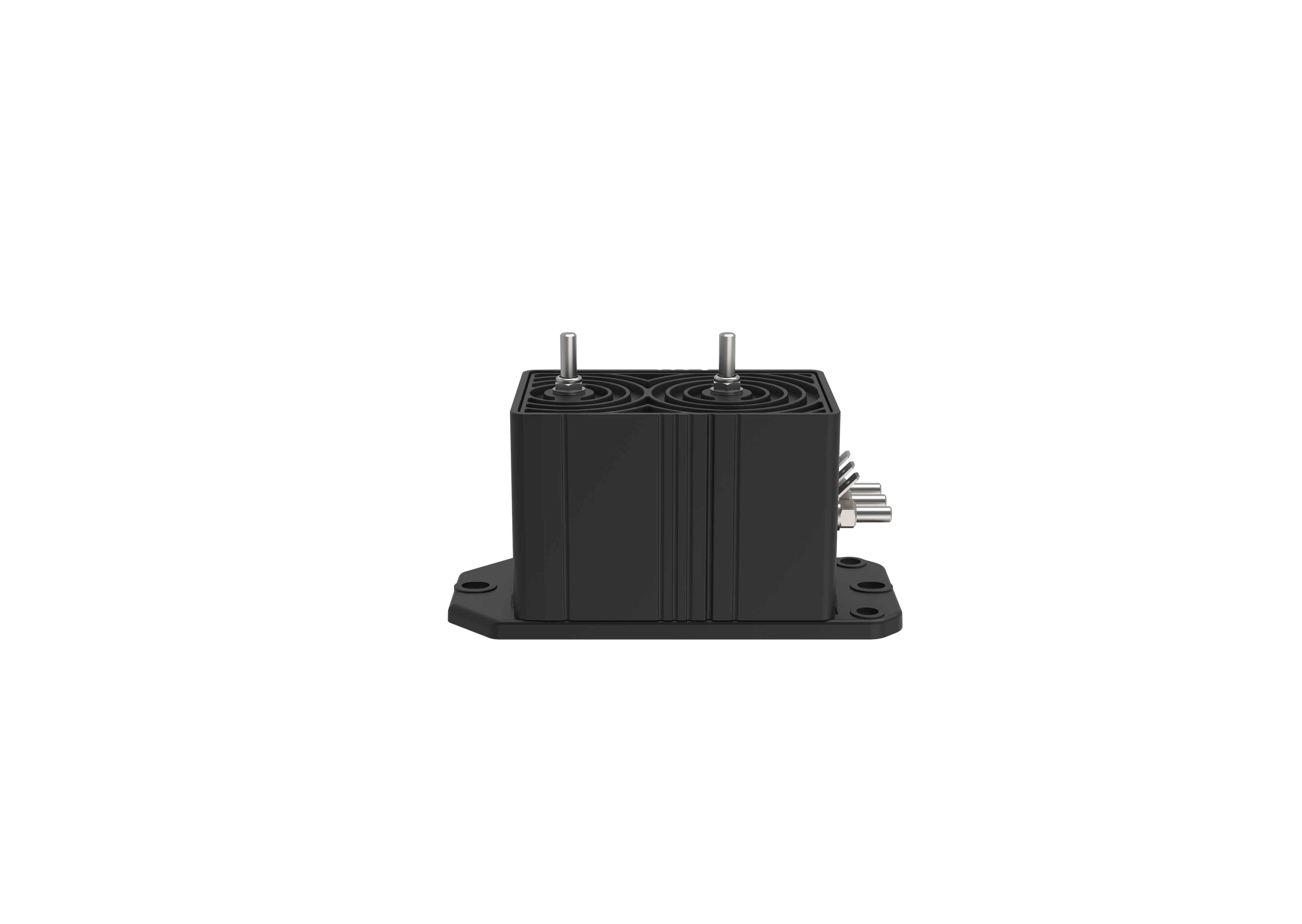

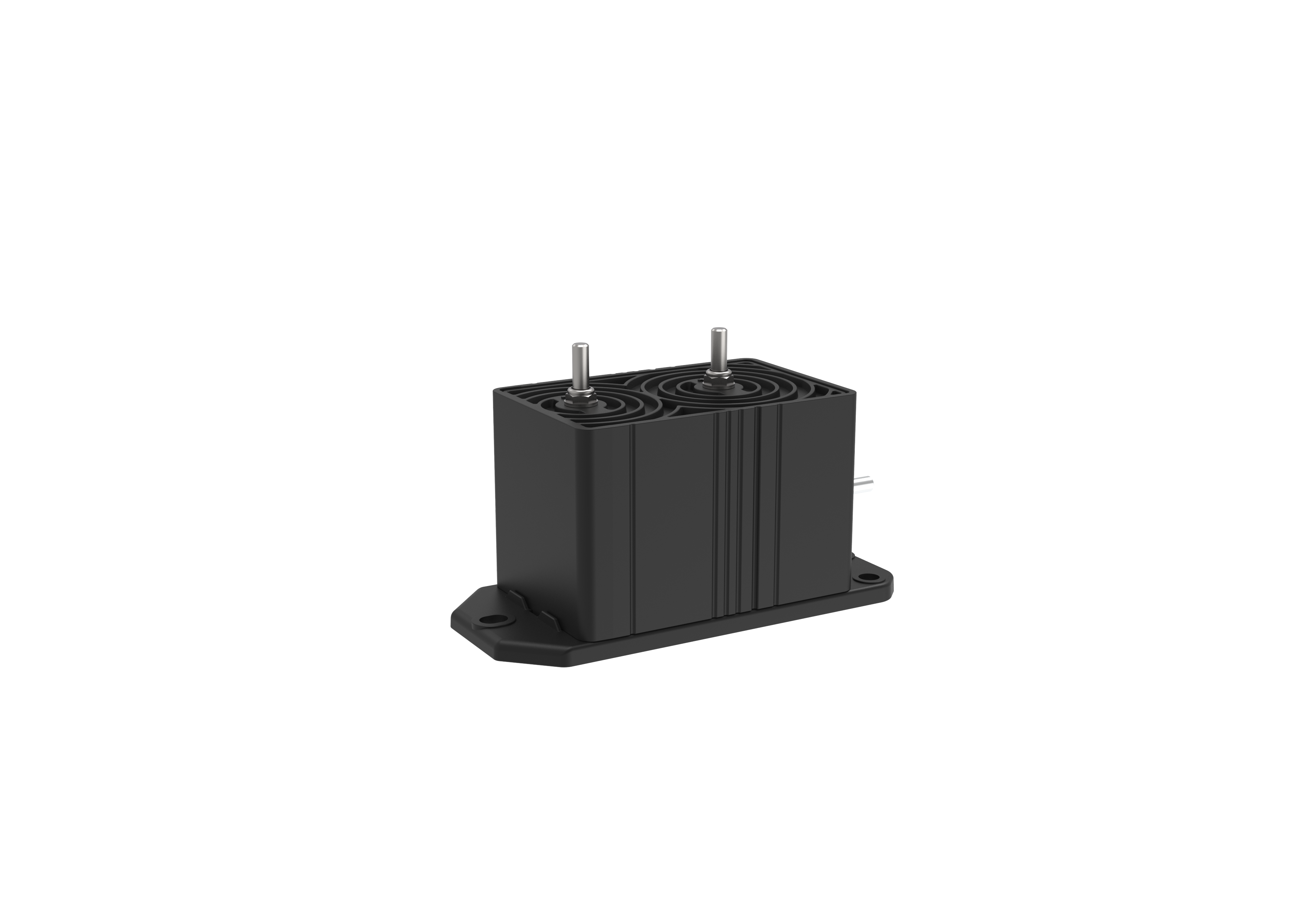

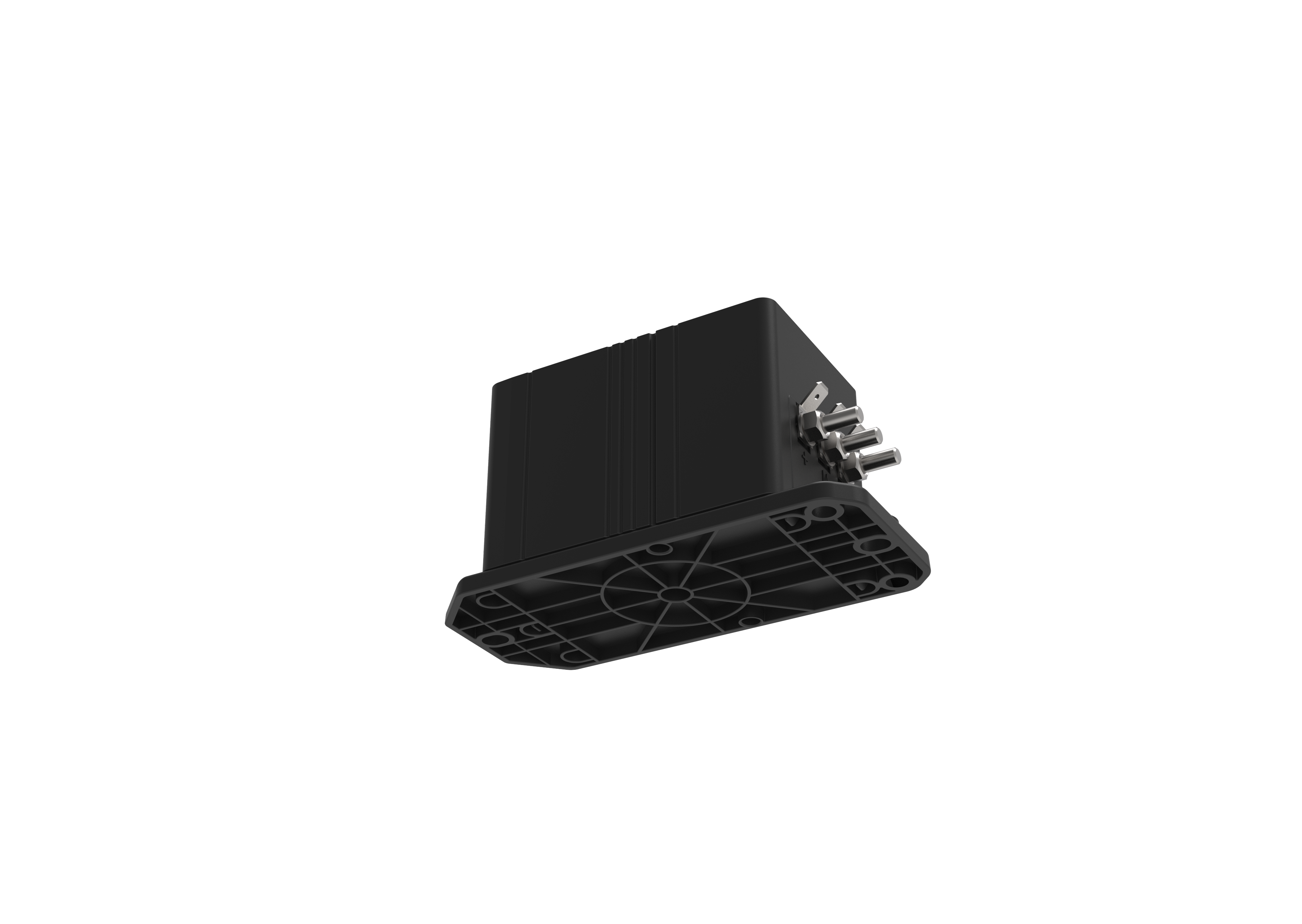

VN4A 2000 M15
Product description
Closed loop (compensated) voltage sensor using the Hall Effect.
Galvanic insulation between the primary and secondary
Insulating plastic case recognized according to UL 94-V0
Good linearity
Very low offset drift over temperature
Resistant to strong external interference
Standards:
IEC 60664-1:2020
IEC 61800-5-1:2022
IEC 62109-1:2010
EN 50155:2017
Related Applications
UPS
Switched Mode Power Supplies
Battery Management
Static Inverter Driven by DC Motor
AC Variable Speed Regulation (Servo Motor)
Single Phase or Tri-phase Inverter
Brake Chopper
Download manual
Specification
Primary nominal RMS current (A)
2000V
Measuring range (A)
±3000V
Supply voltage (V)
±15...24
Secondary output
50mA
Accuracy (%)
±1.0
Output bandwidth
14
Operating temperature (°C)
-40~85
Copper busbar (mm)
NA
PCB
Others
M5 thread screw
