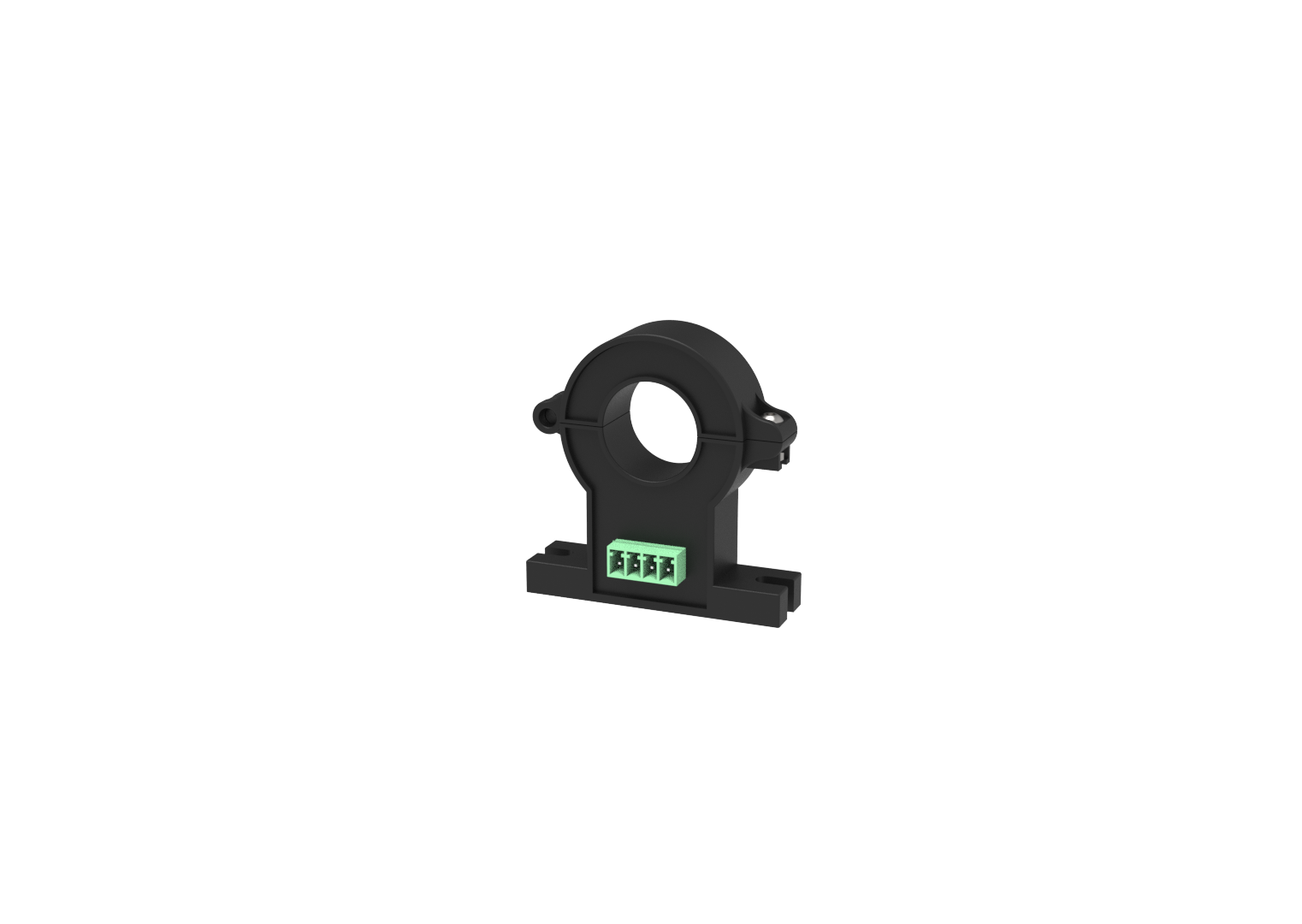

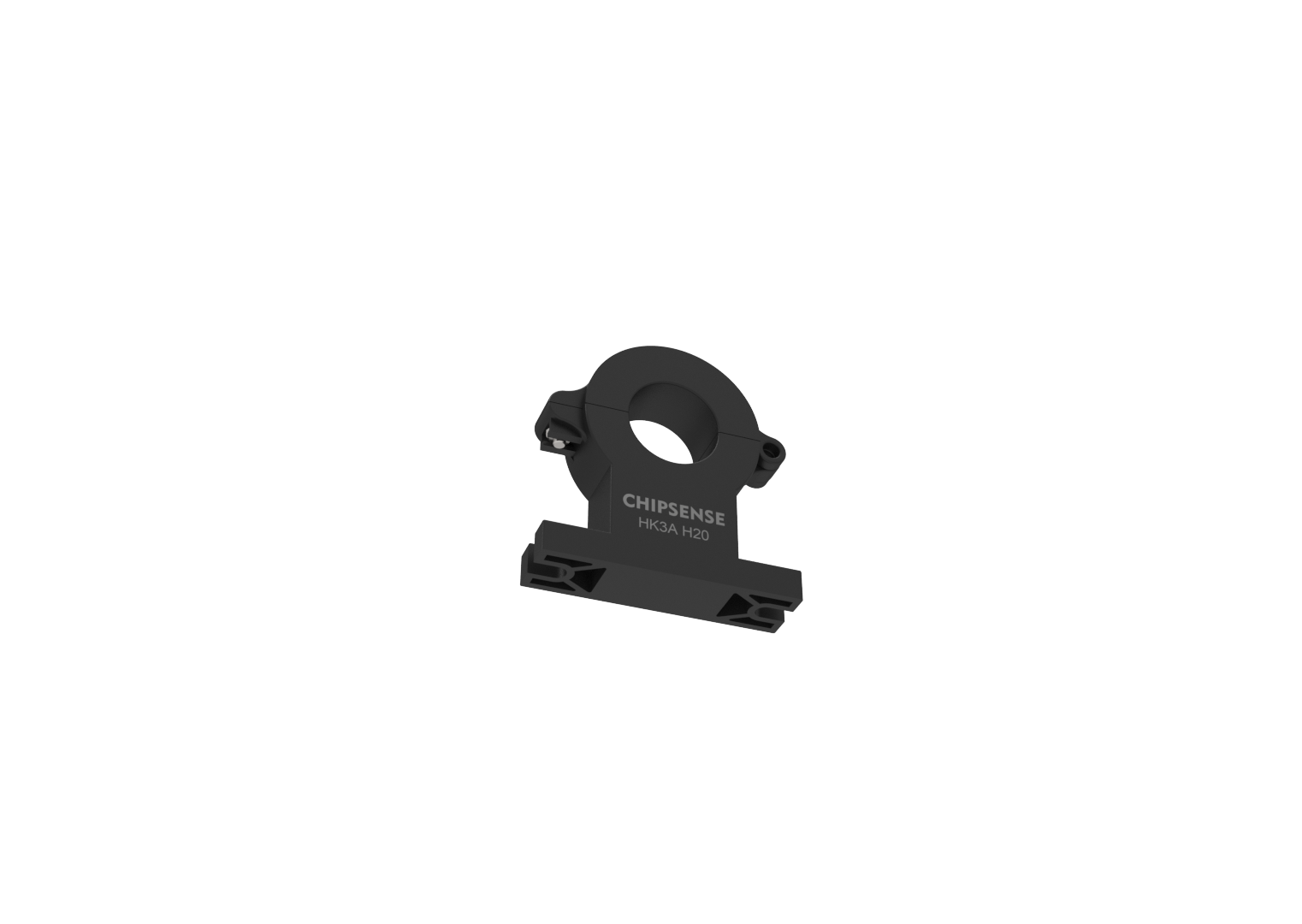

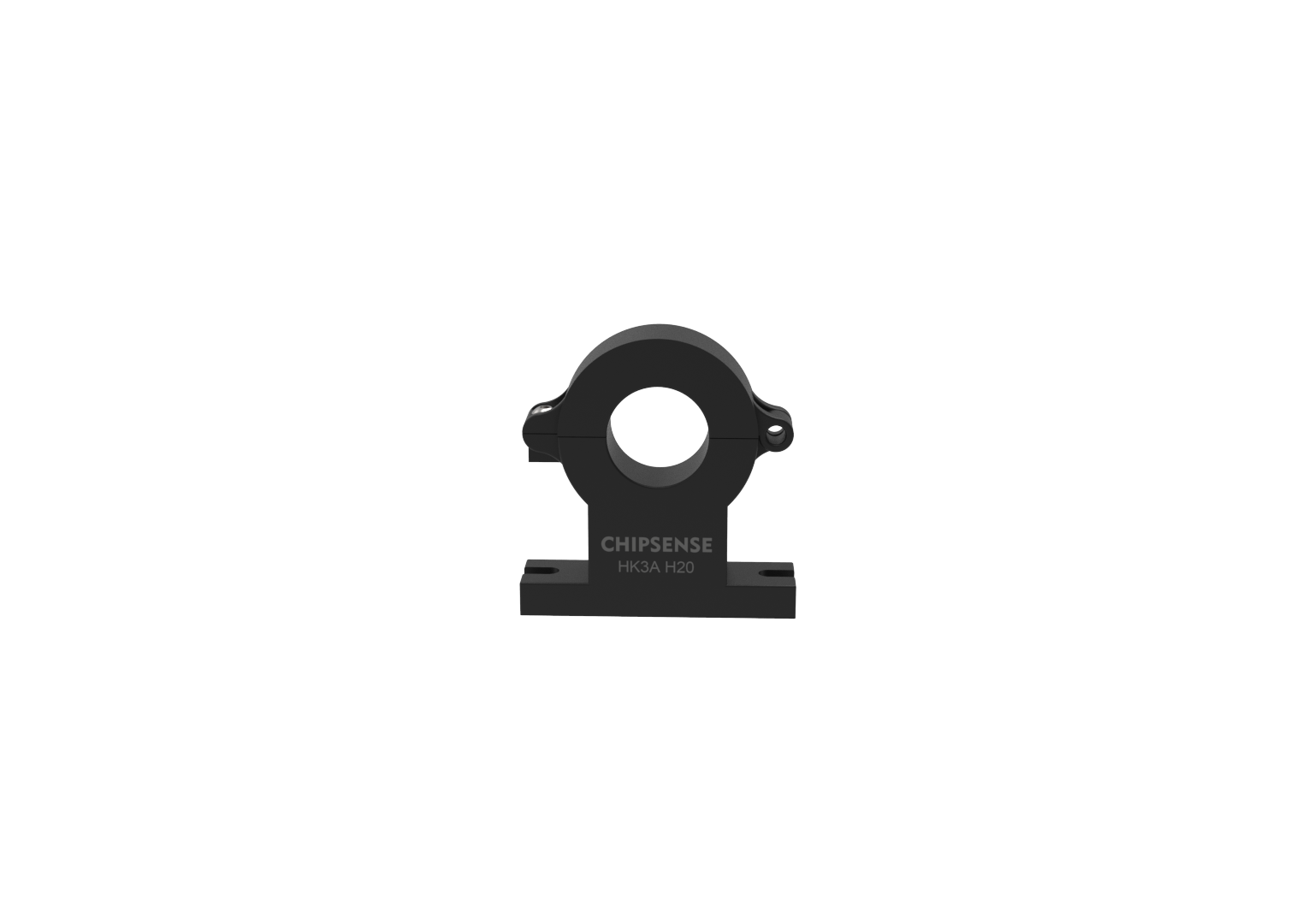

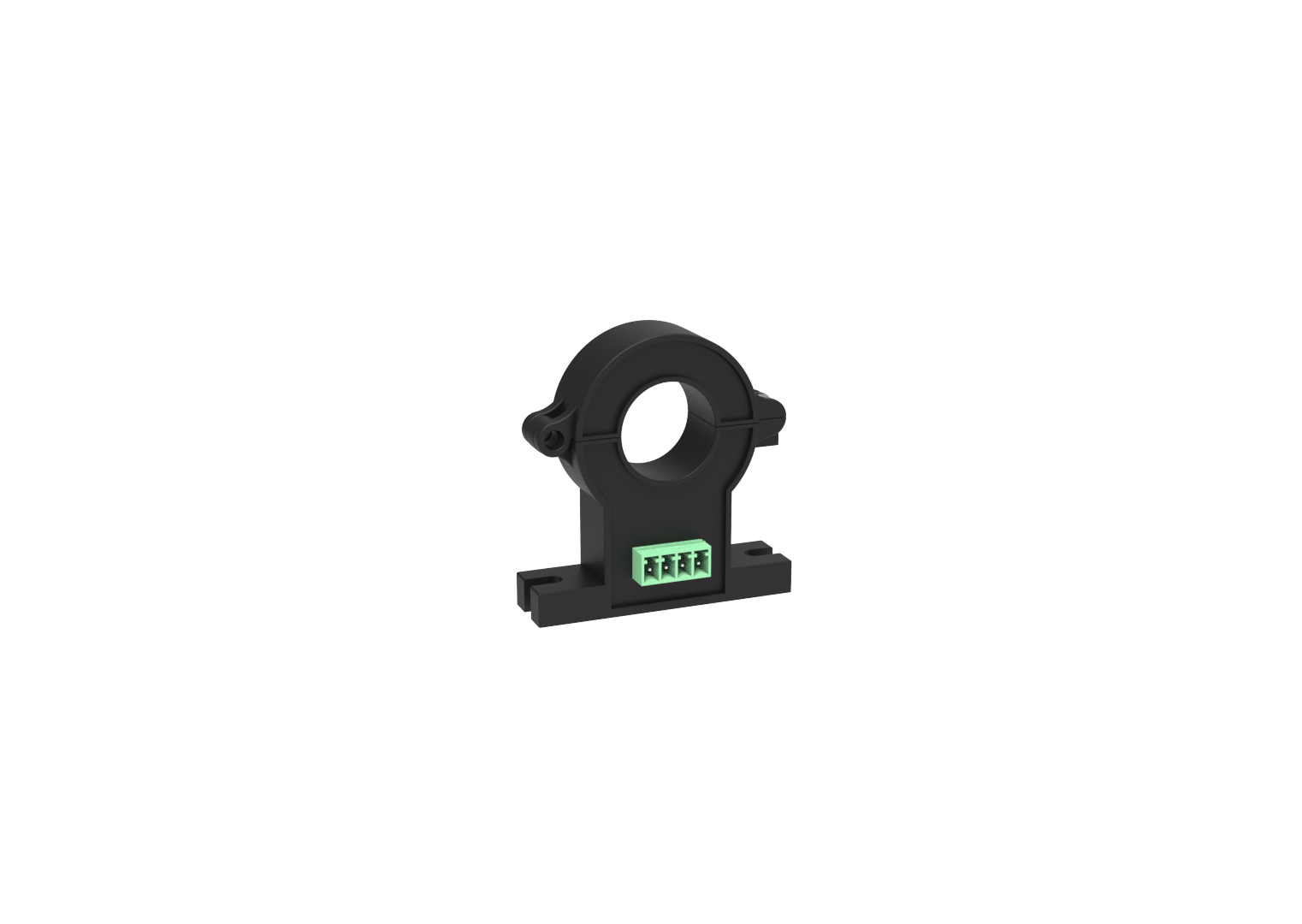

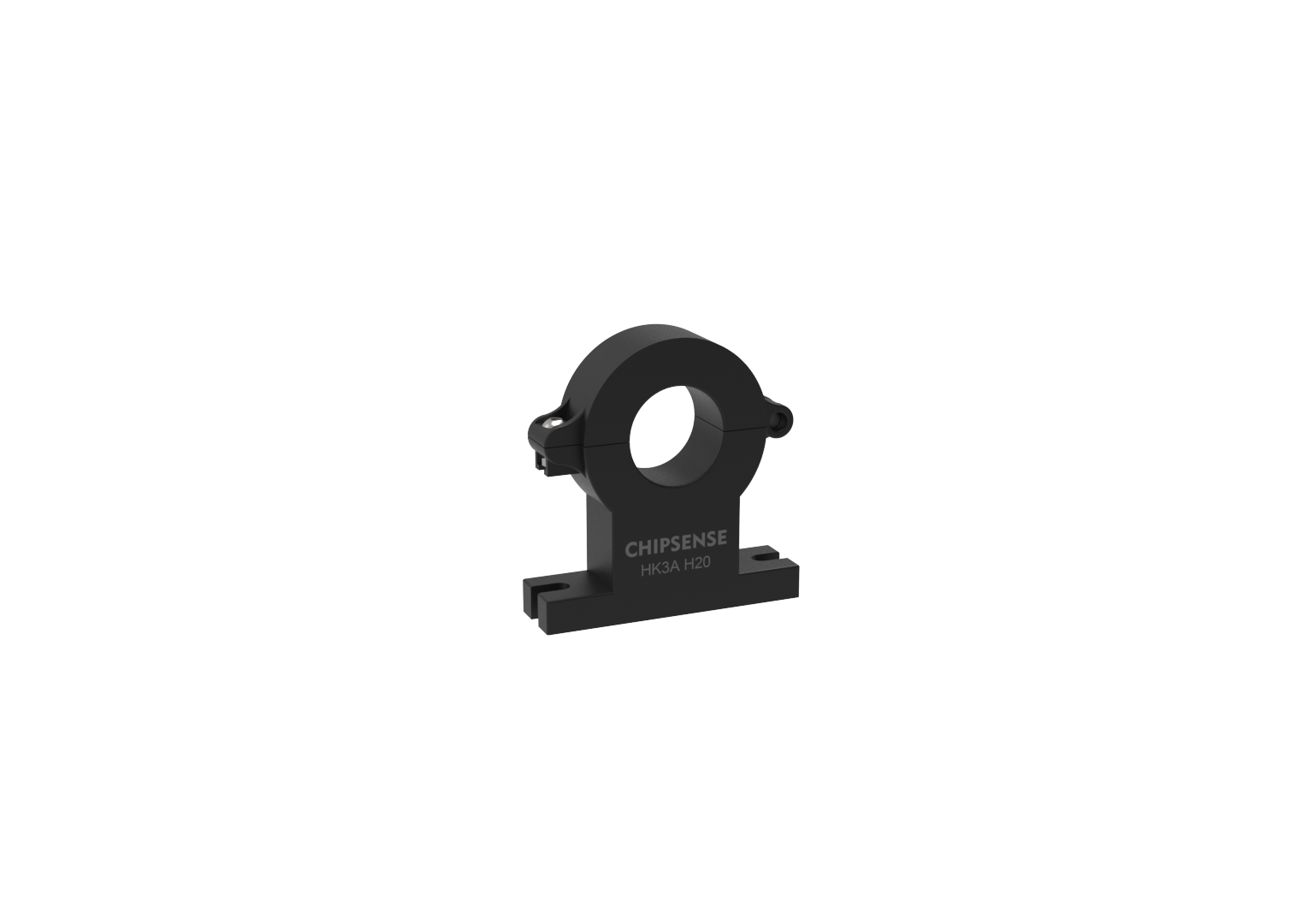

HK3A 50 H20
Product description
Open loop sensor using the Hall Effect
Galvanic separation between primary and secondary
Insulating plastic case recognized according to UL 94-V0
No insertion loss
Output 12±8mA
12V（DC）Power supply
Proportional output
Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010
Related Applications
Battery pack monitoring
Battery Management
Download manual
Specification
Primary nominal RMS current (A)
±50
Measuring range (A)
±50
Supply voltage (V)
12
Secondary output
4...20mA
Accuracy (%)
±1.0
Output bandwidth
DC
Operating temperature (°C)
-25~85
Copper busbar (mm)
Ø21.6
PCB
Others
KF2EDGV-3.81-4P
