Featured Product

Product No	Primary nominal RMS current(A)	Measuring range(A)	Supply voltage (V)	Secondary output	Accuracy(%)	Output bandwidth	Operating Temp.(°C)	Copper busbar(mm)	PCB	Others
CN1A 25 PB00	25	±36	±15	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Industrial Hall effect current sensors for UPS more... Products Data Sheet
CN2A 40 PB01	40	±110	±12...15	±20mA	±0.5	200	-40~85	NA	+
CN2A 40 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020  IEC 61800-5-1:2022  IEC 62109-1:2010 Premium made in China DC hall effect current tranducer more... Products Data Sheet
CS3A 50 P01	50	±90	±12...15	±50...90mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 50 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High quality good linearity PCB mount type current sensor more... Products Data Sheet
CS3A 50 P51	50	±90	±12...15	±50...90mA	±0.3	150	-20~75	13.5 x 10 mm	+
CS3A 50 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed loop Hall effect AC/DC current sensor power supply±12V ~ ±15V more... Products Data Sheet
CN2A 50 PB01	50	±110	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 50 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Measurement:Current Nominal Value:50A Measuring Range:110A Supply voltage range:12-15V Accuracy:0.5% Technology:Closed loop Hall effect Mounting:PCB Measurement current 50A supply voltage :12V-15V closed loop hall effect PCB mounting more... Products Data Sheet
CN2A 80 PB01	80	±160	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 80 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Closed-loop current sensors high-precision measurement for industries such as manufacturing, energy and rail transit. more... Products Data Sheet
CN2A 100 PB01	100	±160	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 100 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 A Hall current sensor measures electrical current for electric vehicles and industrial machines. more... Products Data Sheet

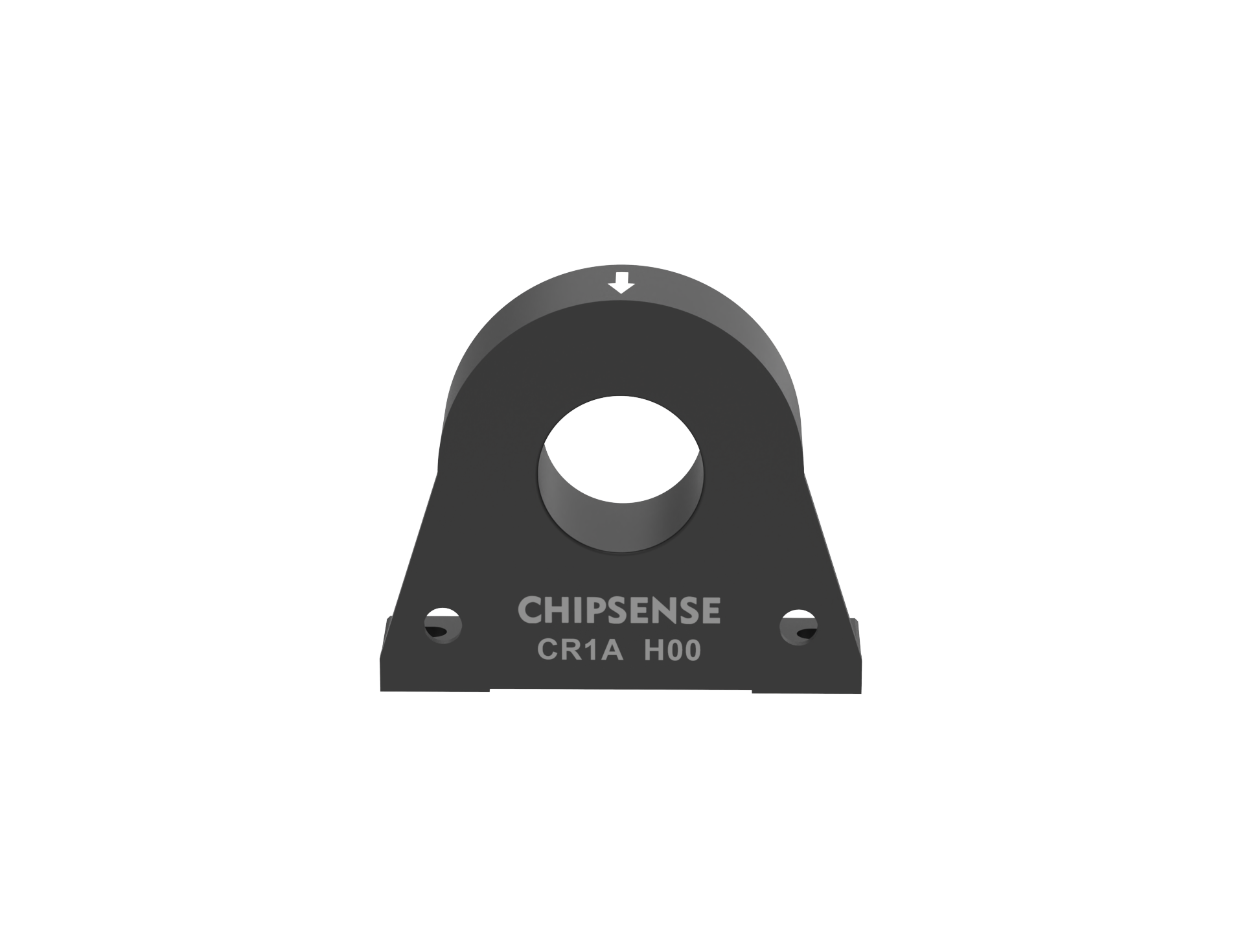

CR1A 100 H00	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 100 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current sensors are mainly used in industrial automation output 50mA power supply ±12V ±15V more... Products Data Sheet
CR1A 100 H01	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 100 H01 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Supply voltage ±12V·±15V JK126-500-3P connection Low voltage hall effect based linear current sensor more... Products Data Sheet
CS3A 100 P00	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accuracy hall effect current tranducer primary busbar 13.5x10.0mm based on PCB mount type more... Products Data Sheet
CS3A 100 P01	100	±160	±12...15	±100...160mA	±0.3	200	-40~85	13.5 x 10 mm	+
CS3A 100 P01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High sensitivity, supply voltage ±12V ±15V best current sensor modules for hobbyist electronics projects more... Products Data Sheet
CS3A 125 P00	125	±200	±12...15	±125...200mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 125 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High bandwidth current sensor and low offset drift over temperature PCB installation more... Products Data Sheet
CR1A 200 H00	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Magnetic current sensors suppliers supply voltage: 12 - 15V output100 mA more... Products Data Sheet
CR1A 200 H01	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 200 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 200A hall effect analog current sensor very good linearity for measurements High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect analog current sensor very good linearity for measurements more... Products Data Sheet
CM1A 200 H00	200	±420	±12...15	±100...210mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 200 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 China professional high-frequency current transducers factory more... Products Data Sheet
CR1A 300 H00	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 300 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low voltage high accuracy wide input range 100A-300A through hole type current transducer more... Products Data Sheet
CR1A 300 H01	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		JK126-500-3P
CR1A 300 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 High accurate hall effect AC/DC power supply ±12 V ~ ±15V through-hole type current sensor more... Products Data Sheet
CR1A 300 H02	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 300 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect sensors analog circuit design measure Current Using Current Sensors more... Products Data Sheet
CM2A 300 H00	300	±500	±12...20	±150...250mA	±0.3	100	-40~85	Ø20		Molex 6410
CM2A 300 H00 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current transducersupply voltage ±12 ±20V input 300A CT more... Products Data Sheet
CR2A 400 H00	400	±600	±15...24	±100...150mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 400 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Measuring range 300A-500A ±15V ±24Vcurrent transducer more... Products Data Sheet
CR2A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø35.0		JK126-500-3P
CR2A 500 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Low voltage high accuracy current measurement device 500A closed-loop current sensors more... Products Data Sheet
CM3A 500 H00	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		Molex 6410
CM3A 500 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor CT measures direct current flow using the hall effect renewable energy, electric vehicles, and power monitoring more... Products Data Sheet
CM3A 500 H01	500	±800	±15...24	±100...160mA	±0.5	100	-40~85	Ø30		JST B3P VH
CM3A 500 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall current measurement device 500A low current consumption more... Products Data Sheet
CM4A 1000 H00	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H00 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Closed-loop current transducers supplier low voltage measuring 1000A more... Products Data Sheet
CM4A 1000 H03	1200	±1800	±24	±300...450mA	±0.4	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H03 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High accuracy wide applications fileds closed-loop hall effect current sensor 1000A supply voltage ±24 more... Products Data Sheet
CM4A 1000 H05	1000	±2100	±15...24	±200...420mA	±0.3	150	-40~85	Ø38		JST B3P VH
CM4A 1000 H05 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Professional current transducer supplier for rail transit system more... Products Data Sheet
HK1A 200 H00	200	±240	12	4...20mA	±1.0	DC	-25~85	Ø41.3		2EDGV-3.81-4P
HK1A 200 H00 Open loop sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Bidirectional easy assembly split core AC DC pulse current measuring sensor CHCS-EKF 200A for battery management system BMS SMPS UPS more... Products Data Sheet
CM5A 2000 H20	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		JST B3P VH
CM5A 2000 H20 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Hall effect DC current measurement device high accuracy reliable current transducer more... Products Data Sheet
FR1C 700 H2152A	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H2152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H2152A	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H2152A	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H1152A	500	±530	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H1152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H1152A	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
AN5V 30 PB00	30	±90	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 30 PB00 30A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Small size current sensors employed in solar inverters and battery management systems more... Products Data Sheet
AN5V 10 PB00	10	±30	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 10 PB00 10A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 AC and DC currents sensor in automotive and industrial applications more... Products Data Sheet
AN3V 10 PB50	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Very low power consumption open loop current sensors more... Products Data Sheet
AN5V 15 PB00	15	±45	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 15 PB00 15A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Easy to use and simpler design ASIC current sensor more... Products Data Sheet
AN3V 16 PB50	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V Electrical Measuring Analog Module Small AC Current Transducer 10A 16A 20A 32A 40A 50A more... Products Data Sheet
AN5V 20 PB00	20	±60	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 20 PB00 20A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 High-performance transducers for track motor control more... Products Data Sheet
AN3V 20 PB50	20	±50	5	2.5±2V	±1	250	-40~105	NA	+
AN3V 20 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 ASIC current sensors for HVDC application area more... Products Data Sheet
AN5V 25 PB00	25	±75	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 25 PB00 25A open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Low sensitivity error ASIC sensors more... Products Data Sheet
AS1V 30 H05	30	±30	5	2.5±0.625V	+1	50	-40~105	20.5x10.5 mm		RVVP 3×0.3mm×0.3mm-1000
AS1V 30 H05 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor with primary nominal rms current ±30A,Supply voltage 5V more... Products Data Sheet
AN3V 32 PB50	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size PCB mounting open loop current sensor more... Products Data Sheet
AN3V 40 PB50	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Electronic components hall effect current sensor more... Products Data Sheet
AN5V 50 PB00	50	±150	±12...15	±4V	±1.0	50	-40~85	NA	+
AN5V 50 PB00 Open loop current sensor using the Hall Effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion loss. Small size. Standards: EN50178: 1997 IEC 61010-1: 2000 UL 508: 2010 Hall effect sensor working principle and applications more... Products Data Sheet
AN3V 50 PB30	50	±125	3.3	1.65±1.15V	+1.0	250	-40~150	NA	+
AN3V 50 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect current sensor for new energy industrial automation more... Products Data Sheet
AN3V 50 PB50	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB50 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 5V current sensor for Servo Motor more... Products Data Sheet
AS1V 50 H00	50	±50	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 High performance current sensor for EV HEV BMS more... Products Data Sheet
AS1V 50 H01	50	±150	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm	MOLEX 5045-04A
AS1V 50 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Industrial grade bidirectional current sensor for AI data center industrial internet more... Products Data Sheet
AN3V 80 PB55	80	±200	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 80 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor for renewable energy systems more... Products Data Sheet
AN3V 100 PB55	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect current sensor supply voltage 5V high sensitivity low noise for combining manifolds Electronic Equipment more... Products Data Sheet
AS1V 100 H00	100	±100A	5	2.5±2	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Battery powered 5V portable industrial grade current sensor wide measurement range for Industrial application fields more... Products Data Sheet
AS1V 100 H01	100	±300	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 100 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor for industrial environment more... Products Data Sheet
AS1V 100 H07	100	±100	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		RVVP 3 x 0.3mmx 0.3mm -600
AS1V 100 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensors for various applications more... Products Data Sheet
AN3V 120 PB55	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB55 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor for monitoring, control, or protection. more... Products Data Sheet
AS1V 200 H00	200	±200	5	2.5±2V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 How the current sensor works in robotics more... Products Data Sheet
AS1V 200 H01	200	±600	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		Molex 5045-04A
AS1V 200 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Electric current sneosr current sensing circuit diagram more... Products Data Sheet
AS1V 200 H07	200	±200	5	2.5±0.625V	±1.0	50	-40~105	20.5x10.5 mm		RVVP 3 x 0.3mm x 0.3mm -600
AS1V 200 H07 Open loop current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Supply voltage:+5V No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High accuracy current sensor core electronic component for Battery Management System more... Products Data Sheet
AS1V 300 H00	300	±300	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Welding power supply current sampling hall sensor more... Products Data Sheet
AS1V 300 H01	300	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 300 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Open-loop current sensor for electric vehicle charging station more... Products Data Sheet
AS1V 400 H00	400	±400	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall effect DC and AC current transducer for overcurrent protection circuit more... Products Data Sheet
AS1V 400 H01	400	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 400 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor component for industrial control more... Products Data Sheet
AS1V 500 H00	500	±500	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor for monitor the operating conditions of the motors more... Products Data Sheet
AS1V 500 H01	500	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 500 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Primary hole type currrent sensor with fast response, supply voltage+5V, real-time monitoring more... Products Data Sheet
AS1V 600 H00	600	±600	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Lightweight low loss motor control open loop high precision current sensor for AC variable speed more... Products Data Sheet
AS1V 600 H01	600	±900	5	2.5±0.625V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 600 H01 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Panel mounted current sensors more... Products Data Sheet
AS1V 700 H00	700	±700	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 700 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Current sensor HASS 700-S +5V more... Products Data Sheet
AS1V 800 H00	800	±800	5	2.5±2V	±1.0	50	-40~105	20.5 x 10.5 mm		MOLEX 5045-04A
AS1V 800 H00 Open loop current sensor using the Hall Effect. Output voltage is proportional to the supply voltage Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. Supply voltage: +5V No insertion loss. Small size Standards: EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Hall effect sensor for electric scooter motor uninterruptible power supplies more... Products Data Sheet
FR1C 300 H2252A	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
AN3V 10 PB31	10	±25	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 10 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 HLSR current transducer in power electronics, motor drives, and renewable energy systems. more... Products Data Sheet
AN3V 10 PB51	10	±25	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 10 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 SMD PCB mount current sensor for industrial more... Products Data Sheet
AN3V 16 PB30	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Professional hall effect current sensor manufacturer for fast switching applications more... Products Data Sheet
AN3V 16 PB31	16	±40	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 16 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size renewable energy current transducer 10A-120A for high efficiency SMPS more... Products Data Sheet
AN3V 16 PB51	16	±40	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 16 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Industrial current transducer alternative supplier current transducer for VFD systems more... Products Data Sheet
AN3V 20 PB30	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Cost effective Hall effect current sensor for AI server PSU more... Products Data Sheet
AN3V 20 PB31	20	±50	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 20 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current Sensor 20A 3.3V 2.5us PCB HLSR-P more... Products Data Sheet
AN3V 20 PB51	20	±50	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 20 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 HLSR Industrial Current Sensors more... Products Data Sheet
AN3V 32 PB30	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 The different types of available current sensors and their typical use cases more... Products Data Sheet
AN3V 32 PB31	32	±80	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 32 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current sensor selection guide for motor control applications and how to test current sensor more... Products Data Sheet
AN3V 32 PB51	32	±80	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 32 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall effect sensor ensure for battery efficiency and protecting against current overloads more... Products Data Sheet
AN3V 40 PB30	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB30 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How to replace a hall effect transducer for current measurement more... Products Data Sheet
AN3V 40 PB31	40	±100	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 40 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size open cloop supply voltage 3.3V linearity ±0.5 for 250khz for industrial applications more... Products Data Sheet
AN3V 40 PB51	40	±100	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 40 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Electronic components PCB board mounting open cloop hall current sensor for SMPS and UPS more... Products Data Sheet
AN3V 50 PB31	50	±125	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 50 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage+3.3V open loop current sensor based on Hall effect PCB installation more... Products Data Sheet
AN3V 50 PB51	50	±125	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 50 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Good Iinear variable differential current sensor active speed sensor wide measure range10A 16A 20A 32A 40A 50A 80A 100A 120A more... Products Data Sheet
AN3V 80 PB35	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How integrated current sensors can open new perspectives for system more... Products Data Sheet
AN3V 80 PB31	80	±200	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 80 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 UPS power HLSR current sensor price more... Products Data Sheet
AN3V 80 PB51	80	±200	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 80 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Small size height 8.7mm open loop 250kHz bandwidth supply voltage+5V for MPPT more... Products Data Sheet
AN3V 100 PB35	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Supply voltage 3.3V hall effect current sensor for combining manifolds more... Products Data Sheet
AN3V 100 PB31	100	±250	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 100 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 High precision magnetic sensor interfacing ASIC more... Products Data Sheet
AN3V 100 PB51	100	±250	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 100 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 How integrated current sensors can open new perspectives for system design. more... Products Data Sheet
AN3V 120 PB35	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor 80-200A AC/DC Input/output suitable for industrial power supply with an aperture of ±0.3 mm more... Products Data Sheet
AN3V 120 PB31	120	±300	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 120 PB31 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Hall current sensor 3.3V AC/DC 10A 16A 20A 32A 40A 50A 80A 100A 120A electrical Current Transducer analog output more... Products Data Sheet
AN3V 120 PB51	120	±300	5	2.5±2V	±1.0	250	-40~105	NA	+
AN3V 120 PB51 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+5V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Current transducer sensor 120A range 80mV/A sensitivity PCB mount for motor drives UPS more... Products Data Sheet
CR1V 6 PB02	6	±12	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 6 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Reliable data output voltage current sensor to ensure accurate system status monitoring and stable operation more... Products Data Sheet
CR1V 6 PB03	6	±12	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 6 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 IEC 60664-1 certified current transducer PCB mount current sensor for industrial test equipment more... Products Data Sheet
CR1V 6 PB04	6	±20	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 6 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 CAT III reinforced insulation current transducer compact PCB mount isolated current sensor for BMS manufacturer more... Products Data Sheet
CR1V 15 PB02	15	±30	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 15 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Factory direct high precision measurement CTs more... Products Data Sheet
CR1V 15 PB03	15	±30	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 15 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Current sensor CL 15A AC/DC compact design, easy to install PCB for servo motor drives more... Products Data Sheet
CR1V 15 PB04	15	±51	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 15 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 China supplier single power supply 5V hall effect DC/AC 6-50A current sensor for welding machine power supply more... Products Data Sheet
CR1V 25 PB02	25	±50	5	1.65±1.25V	±0.4	200	-40~85	NA	+
CR1V 25 PB02 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 China factory price hall effect current measurement 500A closed loop DC AC hallcurrent sensor manufacturer more... Products Data Sheet
CR1V 25 PB04	25	±85	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 25 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 High precision hall effect current sensor for new energy combiner box measurement more... Products Data Sheet
CR1V 50 PB03	50	±100	5	1.62±1.25V	±0.7	200	-40~85	NA	+
CR1V 50 PB03 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Hall effect current transducer PCB type for EV Charger PV Solar Motor UPS PLC DSP more... Products Data Sheet
CR1V 50 PB04	50	±150	5	2.5±1.875V	±0.8	200	-40~105	NA	+
CR1V 50 PB04 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Understanding basics current sensing circuits more... Products Data Sheet
CR1V 75 PB05	75	±180	5	2.5V	±1.0	200	-40~105	NA	+
CR1V 75 PB05 Closed loop（compensated）current sensor using the Hall effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion losses Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010 Current sensor circuit diagram more... Products Data Sheet
CN1A 25 PB01	25	±36	±12	±25mA	±0.5	150	-40~85	NA	+
CN1A 25 PB01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Alternative supplier for current transducers LA 25-np series more... Products Data Sheet
CS3A 200 P21	200	±300	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 200 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Professional manufacturer equivalent to S25P150D15Y board mount closed-loop hall effectcurrent sensor for AI data center and power electronics more... Products Data Sheet
CN2A 25 PB02	25	±55	±12...15	±25mA	±0.5	200	-40~85	NA	+
CN2A 25 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Main application fields of closed loop current snesor for UPS, BMS, servo, wind inverter more... Products Data Sheet
CN2A 40 PB02	40	±90	±12...15	±40mA	±0.5	200	-40~85	NA	+
CN2A 40 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 PCB mount hall sensor equivalent to LAH-P high linearity hall transducer for battery management system BMS fast response 0.5μs more... Products Data Sheet
CN2A 50 PB02	50	±90	±12...15	±50mA	±0.5	200	-40~85	NA	+
CN2A 50 PB02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Panel mounted EV battery BMS tester current sensor more... Products Data Sheet
CR1A 50 H00	50	±70	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		MOLEX 5045-04A
CR1A 50 H00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 AC DC current transducer for inverter more... Products Data Sheet
CR1A 100 H02	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 100 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Isolated hall effect current sensor primary current 100A for new energy vehicle more... Products Data Sheet
CR1A 100 H04	100	±200	±12...15	±50...100mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 100 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Special through-core current transformer for frequency converter more... Products Data Sheet
CR1A 200 H02	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		HX39600-3Y
CR1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Domestic high precision current transducer 300±20mm RVV cable current transducer alternative to LT x08-S7 series more... Products Data Sheet
CR1A 200 H04	200	±400	±12...15	±100...200mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 200 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Molex connector closed loop hall current sensor ±200A fast response 0.5μs for industrial converter more... Products Data Sheet
CR1A 300 H04	300	±500	±12...15	±150...250mA	±0.5	200	-40~85	Ø23		Molex9652048 3.96-A4A
CR1A 300 H04 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Compact mountable 300A hall current sensor with molex connector swapable LT x08-S7 series more... Products Data Sheet
CM1A 100 H01	100	±200	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex 6410
CM1A 100 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary busbar through hole alternative LF 205/210-Series 100A current sensor easy installation more... Products Data Sheet
CM1A 200 H02	200	±420	±12...15	±100...200mA	±0.2	100	-40~85	Ø15.6		Molex Minifit 5566
CM1A 200 H02 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary hole Φ15.6 mm global leader in current measurement solutions more... Products Data Sheet
CM4A 1000 H06	1000	±2700	±15...24	±200...540mA	±0.3	150	-40~85	Ø38		Molex 6410
CM4A 1000 H06 Closed loop（compensated）current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:EN50178: 1997, IEC 61010-1: 2000, UL 508: 2010 Choosing the right current sensor type depends on the application’s requirements for accuracy, range, installation method, and integration needs more... Products Data Sheet
CM5A 2000 H01	2000	±3850	±15...24	±400...770mA	±0.3	150	-40~85	Ø57.5		5566-4A
CM5A 2000 H01 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Low thermal drift compatible LF 2005/2010-series hall effect current sensor 100kHz bandwidth SMPS application ±2000A 6kV isolation 150kHz bandwidth more... Products Data Sheet
CM5A 2000 H21	2000	±4250	±15...24	±400...850mA	±0.3	150	-40~85	Ø57.5		2EDGV-5.08-3P
CM5A 2000 H21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Drop-in replacement LF 2005/2010-series hall effect transducers for MW UPS & large scale energy storage more... Products Data Sheet
CS3A 50 P00	50	±90	±12...15	±50...90mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P00 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Electrical parameter table accuracy ±0.3% 150kHz bandwidth response time 0.5μs mechanical dimension drawing primary busbar 13.5x10mm outline size more... Products Data Sheet
CS3A 50 P21	50	±100	±12...15	±25...37.5mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 50 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current sensor dimension diagram secondary pin layout recommended PCB hole Φ1.0mm mounted on energy storage PCS DC busbar current detection more... Products Data Sheet
CS3A 100 P21	100	±150	±12...15	±50...75mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P21 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Recommended PCB hole high accuracy primary nominal rms current ±100A for battery management frequency bandwidth 150 kHz for power supplies for welding applications more... Products Data Sheet
CS3A 100 P51	100	±150	±12...15	±100...150mA	±0.3	150	-40~85	13.5 x 10 mm	+
CS3A 100 P51 Closed loop (compensated) current sensor using the Hall Effect Galvanic separation between primary and secondary Insulating plastic case recognized according to UL 94-V0 Very good linearity High accuracy Very low offset drift over temperature No insertion loss Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Current transducer components in stock more... Products Data Sheet
AN3V 150 PB55	150	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 150 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Primary current direction marking diagram open loop bidirectional current sensor for general power electronics more... Products Data Sheet
AN3V 180 PB55	180	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 180 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Customized current automotive grade current sensor for circuit breaker more... Products Data Sheet
AN3V 200 PB55	200	±375	5	2.5±2V	+1.0	250	-40~105	NA	+
AN3V 200 PB55 Open loop current sensor using the Hall effect. ASIC Technology. Maintain output proportional to changes in the power supply（include offset and sensitivity）. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Small size. Standards: IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010 Open loop current sensor transducer 200A more... Products Data Sheet
AN3V 150 PB35	150	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 150 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 Industrial combining manifold current measurement hall sensor alternative to LA17P S05 open loop current transducer for industrial converters more... Products Data Sheet
AN3V 180 PB35	180	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 180 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 250kHz bandwidth 2.5µs fast response time current transducer alternative HLSR more... Products Data Sheet
AN3V 200 PB35	200	±375	3.3	1.65±1.15V	±1.0	250	-40~105	NA	+
AN3V 200 PB35 Open loop current sensor using the Hall effect. Galvanic separation between primary and secondary. Insulating plastic case recognized according to UL 94-V0. No insertion losses. Supply voltage：+3.3V Small size. h=8.7mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 200A Ultra thin HLSR 8.7mm height galvanic isolated current detector -40 to 105℃ wide temperature more... Products Data Sheet
AT4V 50 H00	50	±150	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 50 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 75 H00	75	±225	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 75 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 100 H00	100	±300	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 100 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 150 H00	150	±450	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 150 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AT4V 200 H00	200	±600	±12...15	±4V	±1.0	50	-40~105	10 x 12mm（Three holes）		HX PZ2.54-1X6P WZ
AT4V 200 H00 Three-phase open loop current sensor using the Hall effect Operating temperature range:-40℃~ 105℃ Insulating plastic case recognized according to UL 94-V0 Voltage ratio output Very good linearity Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 300 H1252A	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H1252A	500	±600	12	CAN	±0.3~0.5		-40~85	Φ24.4mm		TE 1473672-1
FR1C 500 H1252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H1152A	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1152A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H2252A	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4mm		TE 1473672-1
FR1C 700 H2252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
CR8A 500 M00	500	±750	±15...24	±100mA	±0.3	100	-45~85	Ø120		M6
CR8A 500 M00 High accuracy 500A closed loop HALL current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 1000 M00	1000	±1500	±15...24	±200mA	±0.3	100	-45~85	Ø120		M6
CR8A 1000 M00 High accuracy 1000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 2000 M00	2000	±3000	±15...24	±400mA	±0.3	100	-45~85	Ø120		M6
CR8A 2000 M00 High accuracy 2000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 4000 M00	4000	±6000	±15...24	±800mA	±0.3	100	-45~85	Ø120		M6
CR8A 4000 M00 High accuracy 4000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
CR8A 5000 M00	5000	±6000	±24	±1000mA	±0.3	100	-45~85	Ø120		M6
CR8A 5000 M00 High accuracy 5000A closed loop Hall current sensor Very good linearity High Frequency bandwidth No insertion loss Strong anti-interference ability Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN5V 60 PB00	60	±180	±12...15	±4V	±1	50	-40~85	NA	+
AN5V 60 PB00 60A open loop current sensor using the Hall Effect Supply voltage ±12...±15V Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Small size Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 500 H1352A	500	±530	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H1352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H1352A	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
CM8A 1000 H01	1000	±2400	±15...24	±200mA	±0.4	DC...100	-40~85	Φ42mm		M6
CM8A 1000 H01 Closed loop（compensated）current sensor using theHall effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL94-V0 Very good linearity Very low offset drift over temperature No insertion loss Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 500 H2252A	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
AN6V 20 PB50	20	±50	5	±2V	±0.8	250	-40~105	NA	+
AN6V 20 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 32 PB50	32	±80	5	±2V	±0.8	250	-40~105	NA	+
AN6V 32 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
AN6V 40 PB50	40	±100	5	±2V	±0.8	250	-40~105	NA	+
AN6V 40 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet

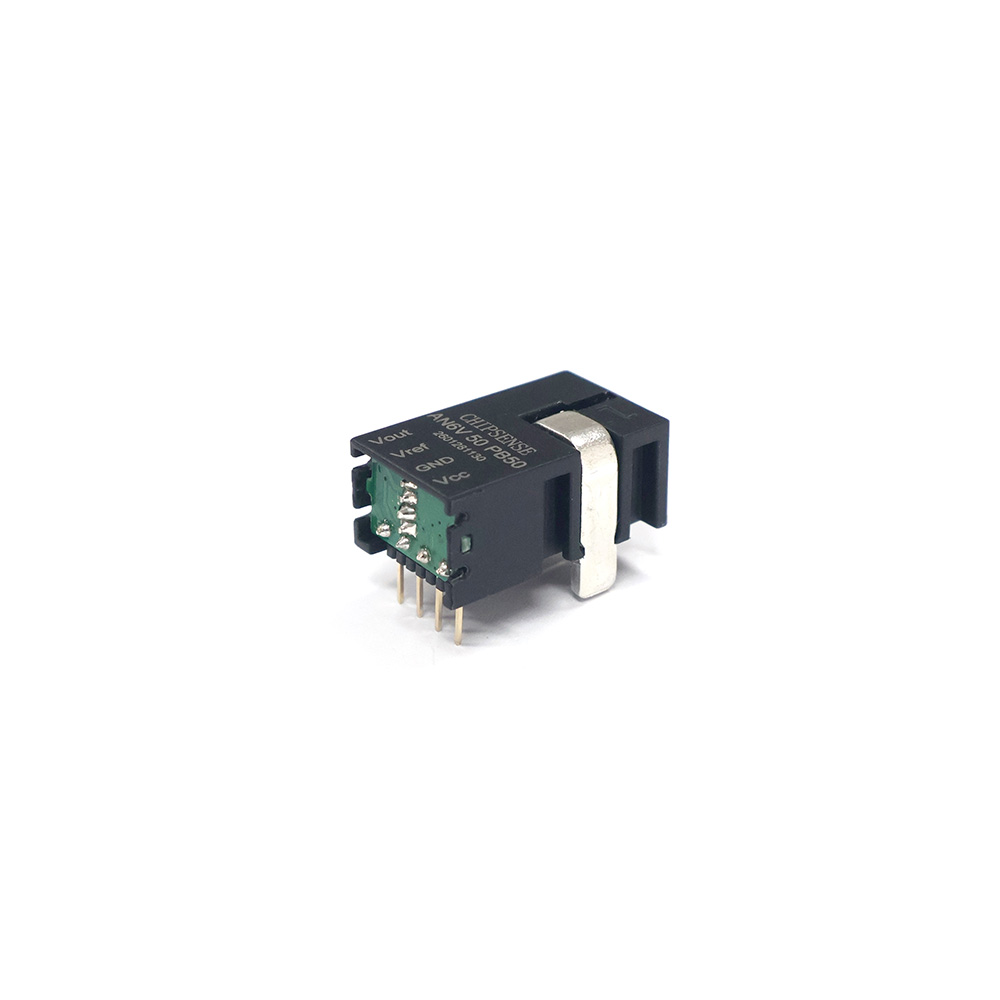

AN6V 50 PB50	50	±125	5	±2V	±0.8	250	-40~105	NA	+
AN6V 50 PB50 Open loop current sensor using the Hall Effect Galvanic insulation between primary and secondary Insulating plastic case recognized according to UL 94-V0 No insertion loss Supply voltage: +5V Height h=10.15mm Standards: IEC 60664-1:2020 IEC 61800-5-1:2022 IEC 62109-1:2010 more... Products Data Sheet
FR1C 700 H1252A	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1252A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H1352A	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H1352B	300	±400	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H1352B Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H1352B	500	±530	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H1352B Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H1352B	700	±760	12	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H1352B Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +12V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H2352A	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H2352A	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H2352A	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H2352A Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 500 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 300 H2322C	300	±400	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 300 H2322C Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 250 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 500 H2322C	500	±530	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 500 H2322C Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 250 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet
FR1C 700 H2322C	700	±760	24	CAN	±0.3~0.5		-40~85	Φ24.4 mm		TE 1473672-1
FR1C 700 H2322C Current sensor using Fluxgate technology for automotive use，BMS, SOC, SOH, SOF. Overcurrent detection mechanism Panel mounting Unipolar +24V battery power supply Output signal: High speed CAN (up to 250 kBps) Configurable internal digital low-pass frequency filter Configurable CAN speed/CAN ID UL508 compliant Ingress Protection - IP42 level. more... Products Data Sheet

Motor Drive

Applications

Featured Product
