不间断电源
您总能找到适合您UPS应用的产品，Chipsese在该领域拥有全系列的电流和电压传感器产品系列。Chipsense可以提供成本效益和各种安装方法的产品。
焊机电源
到目前为止，Chipsense为焊接电源市场提供了大量的电流传感器，特别是HS系列产品，在焊接行业得到了广泛认可。
| Product No | Primary nominal RMS current(A) | Measuring range(A) | Supply voltage (V) | Secondary output | Accuracy(%) | Output bandwidth | Operating Temp.(°C) | Copper busbar(mm) | PCB | Others |
|---|---|---|---|---|---|---|---|---|---|---|
| CR1V 6 PB00 | 6 | ±18 | 5 | 2.5±1.875V | ±0.7 | 100 | -40~85 | NA | + | |

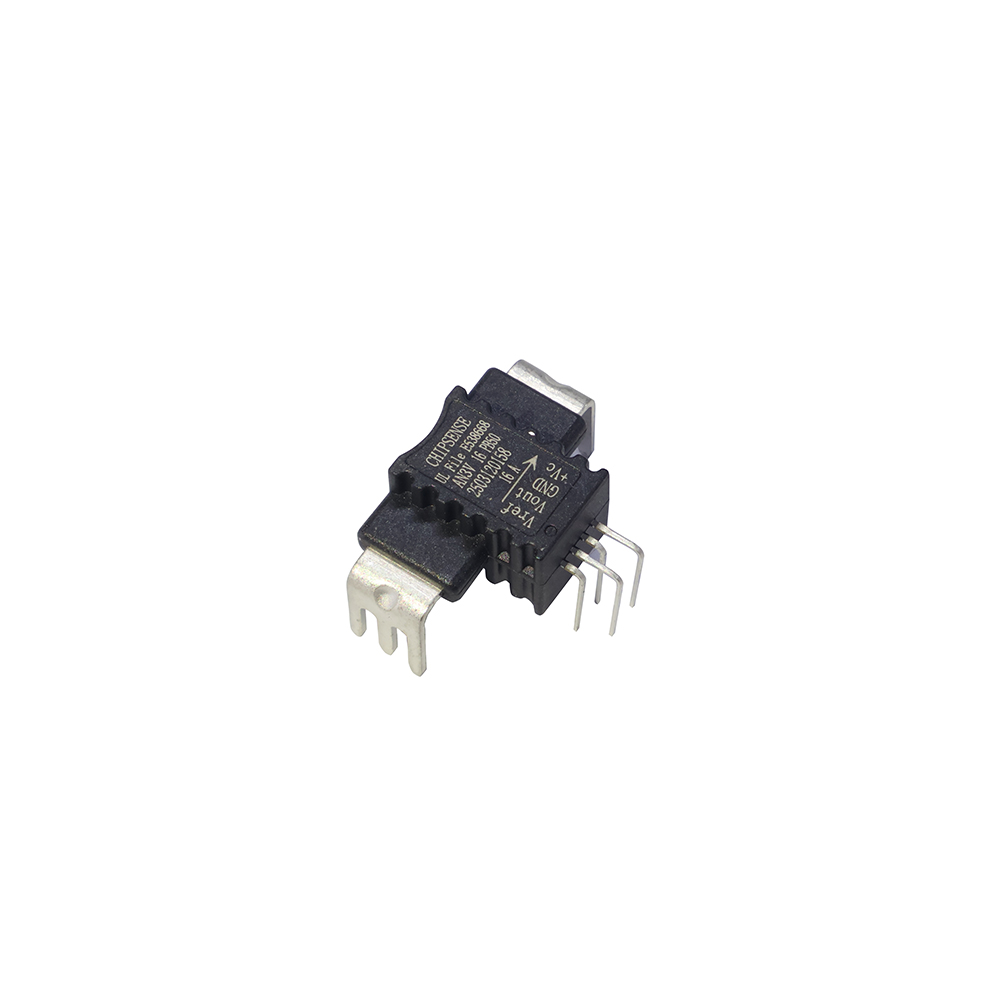

 CR1V 6 PB00Closed loop hall effect current sensors are used in the measurement of Alternating and Direct Current in electrical and electronic equipments such as SMPS, UPS, AC & DC industrial drives, in process control applications like light control, heater load control, etc. more... |
||||||||||
| CR1V 6 PB01 | 6 | ±20 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 15 PB00 | 15 | ±45 | 5 | 2.5±1.875V | ±0.7 | 100 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 15 PB01 | 15 | ±51 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CN1A 25 PB00 | 25 | ±36 | ±15 | ±25mA | ±0.5 | 150 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 25 PB00 | 25 | ±75 | 5 | 2.5±1.875V | ±0.7 | 100 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 25 PB01 | 25 | ±85 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CN2A 40 PB01 | 40 | ±110 | ±12...15 | ±20mA | ±0.5 | 200 | -40~85 | NA | + | |
 CN2A 40 PB01
|
||||||||||
| CS3A 50 P01 | 50 | ±90 | ±12...15 | ±50...90mA | ±0.3 | 200 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 50 P51 | 50 | ±90 | ±12...15 | ±50...90mA | ±0.3 | 150 | -20~75 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CN2A 50 PB01 | 50 | ±110 | ±12...15 | ±25mA | ±0.5 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CN2A 80 PB01 | 80 | ±160 | ±12...15 | ±40mA | ±0.5 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CN2A 100 PB01 | 100 | ±160 | ±12...15 | ±50mA | ±0.5 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1A 100 H00 | 100 | ±200 | ±12...15 | ±50...100mA | ±0.5 | 200 | -40~85 | Ø23 | MOLEX 5045-04A | |
|
|
||||||||||
| CR1A 100 H01 | 100 | ±200 | ±12...15 | ±50...100mA | ±0.5 | 200 | -40~85 | Ø23 | JK126-500-3P | |
|
|
||||||||||
| CS3A 100 P00 | 100 | ±150 | ±12...15 | ±100...150mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 100 P01 | 100 | ±160 | ±12...15 | ±100...160mA | ±0.3 | 200 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 125 P00 | 125 | ±200 | ±12...15 | ±125...200mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CR1A 200 H00 | 200 | ±400 | ±12...15 | ±100...200mA | ±0.5 | 200 | -40~85 | Ø23 | MOLEX 5045-04A | |
|
|
||||||||||
| CR1A 200 H01 | 200 | ±400 | ±12...15 | ±100...200mA | ±0.5 | 200 | -40~85 | Ø23 | JK126-500-3P | |
|
|
||||||||||
| CM1A 200 H00 | 200 | ±420 | ±12...15 | ±100...210mA | ±0.2 | 100 | -40~85 | Ø15.6 | Molex 6410 | |
|
|
||||||||||
| CR1A 300 H00 | 300 | ±500 | ±12...15 | ±150...250mA | ±0.5 | 200 | -40~85 | Ø23 | MOLEX 5045-04A | |
|
|
||||||||||
| CR1A 300 H01 | 300 | ±500 | ±12...15 | ±150...250mA | ±0.5 | 200 | -40~85 | Ø23 | JK126-500-3P | |
|
|
||||||||||
| CR1A 300 H02 | 300 | ±500 | ±12...15 | ±150...250mA | ±0.5 | 200 | -40~85 | Ø23 | HX39600-3Y | |
|
|
||||||||||
| CM2A 300 H00 | 300 | ±500 | ±12...20 | ±150...250mA | ±0.3 | 100 | -40~85 | Ø20 | Molex 6410 | |
|
|
||||||||||
| CR2A 400 H00 | 400 | ±600 | ±15...24 | ±100...150mA | ±0.5 | 100 | -40~85 | Ø35.0 | JK126-500-3P | |
|
|
||||||||||
| CR2A 500 H00 | 500 | ±800 | ±15...24 | ±100...160mA | ±0.5 | 100 | -40~85 | Ø35.0 | JK126-500-3P | |
|
|
||||||||||
| CM3A 500 H00 | 500 | ±800 | ±15...24 | ±100...160mA | ±0.5 | 100 | -40~85 | Ø30 | Molex 6410 | |
|
|
||||||||||
| CM3A 500 H01 | 500 | ±800 | ±15...24 | ±100...160mA | ±0.5 | 100 | -40~85 | Ø30 | JST B3P VH | |
|
|
||||||||||
| CM4A 1000 H00 | 1000 | ±2100 | ±15...24 | ±200...420mA | ±0.3 | 150 | -40~85 | Ø38 | Molex 6410 | |
|
|
||||||||||
| CM4A 1000 H03 | 1200 | ±1800 | ±24 | ±300...450mA | ±0.4 | 150 | -40~85 | Ø38 | JST B3P VH | |
|
|
||||||||||
| CM4A 1000 H05 | 1000 | ±2100 | ±15...24 | ±200...420mA | ±0.3 | 150 | -40~85 | Ø38 | JST B3P VH | |
|
|
||||||||||
| CM5A 2000 H20 | 2000 | ±4250 | ±15...24 | ±400...850mA | ±0.3 | 150 | -40~85 | Ø57.5 | JST B3P VH | |
|
|
||||||||||
| HS1V 50 H00 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 50 H05 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HR1V 50 H01 | 50 | ±100 | ±12...15 | ±5V | ±1.0 | 20 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
 HR1V 50 H01
|
||||||||||
| HS1V 100 H05 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HR1V 100 H01 | 100 | ±200 | ±12...15 | ±5V | ±1.0 | 20 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
|
|
||||||||||
| HR1M 100 H00 | 100 | ±600 | 20...50 | 4...20mA | ±1 | 20~6000 | -40~85 | Ø35.0 | WJ2EDGVC-5.08-4P-14 | |
|
|
||||||||||
| HS1V 200 H00 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 200 H05 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS2V 200 H00 | 200 | ±600 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HR1V 200 H01 | 200 | ±400 | ±12...15 | ±5V | ±1.0 | 20 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
|
|
||||||||||
| HR1M 200 H00 | 200 | ±600 | 20...50 | 4...20mA | ±1 | 20~6000 | -40~85 | Ø35.0 | WJ2EDGVC-5.08-4P-14 | |
|
|
||||||||||
| HS1V 300 H00 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 300 H05 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HR1V 300 H01 | 300 | ±600 | ±12...15 | ±5V | ±1.0 | 20 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
|
|
||||||||||
| HR1M 300 H00 | 300 | ±1000 | 20...50 | 4...20mA | +1 | 20~6000 | -40~85 | Ø35.0 | WJ2EDGVC-5.08-4P-14 | |
| HS1V 400 H00 | 400 | ±900 | ±12...15 | ±4V | +1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
| HR1V 400 H01 | 400 | ±800 | ±12...15 | ±5V | ±1.0 | 20 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
| HR1M 400 H00 | 400 | ±1000 | 20...50 | 4...20mA | +1 | 20~6000 | -40~85 | Ø35.0 | WJ2EDGVC-5.08-4P-14 | |
| HS2V 500 H00 | 500 | ±1500A | ±15 | ±4V | +1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
| HR1V 500 H01 | 500 | ±900 | ±12...15 | ±5V | +1.0 | 20 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
| HR1M 500 H00 | 500 | ±1800 | 20...50 | 4...20mA | ±1.0 | 20~6000 | -40~85 | Ø35.0 | WJ2EDGVC-5.08-4P-14 | |
| HS1V 600 H00 | 600 | ±900 | ±12...15 | ±4V | +1.0 | 50 | -40~105 | 20x10 mm | MOLEX 5045-04A | |
| HS2V 600 H00 | 600 | ±1800 | ±15 | ±4V | +1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
| HS3V 800 H00 | 800 | +2400 | ±15 | ±4V | +1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
| HS2V 1000 H00 | 1000 | ±2500 | ±15 | ±4V | +1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
| HS2V 1500 H00 | 1500 | ±2500 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
| HS3V 1500 H00 | 1500 | ±4500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
| HS3V 2000 H00 | 2000 | ±5500 | ±15 | ±4V | ±1 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
| HS3V 3000 H00 | 3000 | ±5500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
| AN5V 5 PB00 | 5 | ±15 | ±12...15 | ±4V | ±1.0 | 50 | -40~85 | NA | + | |
| AN5V 10 PB00 | 10 | ±30 | ±12...15 | ±4V | ±1.0 | 50 | -40~85 | NA | + | |
| AN3V 10 PB50 | 10 | ±25 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN5V 15 PB00 | 15 | ±45 | ±12...15 | ±4V | ±1.0 | 50 | -40~85 | NA | + | |
| AN3V 16 PB50 | 16 | ±40 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN5V 20 PB00 | 20 | ±60 | ±12...15 | ±4V | ±1.0 | 50 | -40~85 | NA | + | |
| AN3V 20 PB50 | 20 | ±50 | 5 | 2.5±2V | ±1 | 250 | -40~105 | NA | + | |
| AN5V 25 PB00 | 25 | ±75 | ±12...15 | ±4V | ±1 | 50 | -40~85 | NA | + | |
| AS1V 30 H05 | 30 | ±30 | 5 | 2.5±0.625V | +1 | 50 | -40~105 | 20.5x10.5 mm | RVVP 3×0.3mm×0.3mm-1000 | |
| AN3V 32 PB50 | 32 | ±80 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 40 PB50 | 40 | ±100 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN5V 50 PB00 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~85 | NA | + | |
| AN1V 50 PB511 | 50 | ±50 | 5 | 2.5±2V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 50 PB512 | 50 | ±50 | 5 | 2.5±2V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 50 PB501 | 50 | 50 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 50 PB502 | 50 | 50 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 50 PB311 | 50 | ±50 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 50 PB312 | 50 | ±50 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~150 | NA | + | |
| AN3V 50 PB30 | 50 | ±125 | 3.3 | 1.65±1.15V | +1.0 | 250 | -40~150 | NA | + | |
| AN3V 50 PB50 | 50 | ±125 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AS1V 50 H00 | 50 | ±50 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5x10.5 mm | MOLEX 5045-04A | |
| AS1V 50 H01 | 50 | ±150 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5x10.5 mm | MOLEX 5045-04A | |
| AN3V 80 PB55 | 80 | ±200 | 5 | 2.5±2V | +1.0 | 250 | -40~105 | NA | + | |
| AN1V 100 PB511 | 100 | ±100 | 5 | 2.5±2V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 100 PB512 | 100 | ±100 | 5 | 2.5±2V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 100 PB501 | 100 | 100 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 100 PB502 | 100 | 100 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 100 PB311 | 100 | ±100 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~150 | NA | + | |
| AN1V 100 PB312 | 100 | ±100 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~150 | NA | + | |
| AN3V 100 PB55 | 100 | ±250 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AS1V 100 H00 | 100 | ±100A | 5 | 2.5±2 | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 100 H01 | 100 | ±300 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 100 H07 | 100 | ±100 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | RVVP 3 x 0.3mmx 0.3mm -600 | |
| AR1A 100 H00 | 100 | ±100 | ±12...15 | ±20mA | ±1.0 | 5 | -40~85 | Ø20.0 | JK2EDG-5.08-4P | |
| AR1A 100 H01 | 100 | ±100 | ±12...15 | ±100mA | ±1.0 | 5 | -40~85 | Ø20.0 | JK2EDG-5.08-4P | |
| AN3V 120 PB55 | 120 | ±300 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN1V 150 PB511 | 150 | ±150 | 5 | 2.5±2V | ±1.0 | 250 | -40~125 | NA | + | |
| AN1V 150 PB512 | 150 | ±150 | 5 | 2.5±2V | ±1.0 | 250 | -40~125 | NA | + | |
| AN1V 150 PB501 | 150 | 150 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~125 | NA | + | |
| AN1V 150 PB502 | 150 | 150 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~125 | NA | + | |
| AN1V 150 PB311 | 150 | ±150 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~125 | NA | + | |
| AN1V 150 PB312 | 150 | ±150 | 3.3 | 1.65+1.32V | ±1.0 | 250 | -40~125 | NA | + | |
| AN1V 200 PB511 | 200 | ±200 | 5 | 2.5±2V | ±1.0 | 250 | -40~85 | NA | + | |
| AN1V 200 PB512 | 200 | ±200 | 5 | 2.5±2V | ±1.0 | 250 | -40~85 | NA | + | |
| AN1V 200 PB501 | 200 | 200 | 5 | 0.55...4.55V | ±1.0 | 250 | -40~85 | NA | + | |
| AN1V 200 PB502 | 200 | 0-200 | 5 | 0.55+4V | ±1.0 | 250 | -40~85 | NA | + | |
| AN1V 200 PB311 | 200 | ±200 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~85 | NA | + | |
| AN1V 200 PB312 | 200 | ±200 | 3.3 | 1.65±1.32V | ±1.0 | 250 | -40~85 | NA | + | |
| AS1V 200 H00 | 200 | ±200 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5x10.5 mm | Molex 5045-04A | |
| AS1V 200 H01 | 200 | ±600 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5x10.5 mm | Molex 5045-04A | |
| AS1V 200 H07 | 200 | ±200 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5x10.5 mm | RVVP 3 x 0.3mm x 0.3mm -600 | |
| AR1A 200 H00 | 200 | ±200 | ±12...15 | ±20mA | ±1.0 | 5 | -40~85 | Ø20.0 | JK2EDG-5.08-4P | |
| AR1A 200 H01 | 200 | ±200 | ±12...15 | ±100mA | ±1.0 | 5 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
| AS1V 300 H00 | 300 | ±300 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 300 H01 | 300 | ±900 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 400 H00 | 400 | ±400 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 400 H01 | 400 | ±900 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 500 H00 | 500 | ±500 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 500 H01 | 500 | ±900 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 600 H00 | 600 | ±600 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 600 H01 | 600 | ±900 | 5 | 2.5±0.625V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 700 H00 | 700 | ±700 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| AS1V 800 H00 | 800 | ±800 | 5 | 2.5±2V | ±1.0 | 50 | -40~105 | 20.5 x 10.5 mm | MOLEX 5045-04A | |
| VN2A 25 P01 | 5mA | 7mA | 24 | ±25mA | ±0.8 | -40~85 | NA | + | ||
| VN2A 25 P00 | 10mA | ±14mA | ±15 | ±25mA | ±0.6 | -40~85 | NA | + | ||
| VN2A 25 P02 | 10mA | ±14mA | 24 | ±25mA | ±0.8 | -40~85 | NA | + | ||
| VN2A 400 PB02 | 400V | ±400V | ±12 | ±5V | ±0.6 | -40~85 | NA | 3 Faston 6.3 x 0.8mm | ||
| VN2A 800 PB00 | 800V | ±1400V | ±12...15 | ±25mA | ±0.6 | -40~85 | NA | 3 Faston 6.3 x 0.8mm | ||
| VN2A 800 PB01 | 800V | ±1400V | 24 | 4V | ±0.6 | -40~85 | NA | 3 Faston 6.3 x 0.8mm | ||
| VN2A 1100 PB00 | 1100V | ±1500V | ±12...15 | ±25mA | ±0.6 | -40~85 | NA | 3 Faston 6.3 x 0.8mm | ||
| VN2A 1100 PB03 | 1100V | ±1500V | ±15 | ±4V | ±0.6 | -40~85 | NA | 3 Faston 6.3 x 0.8mm | ||
| VN2A 1100 PB20 | 1100V | ±1100V | ±12 | ±4V | ±0.6 | -40~85 | NA | XH-3A | ||
| VN3A 6400 M00 | 6400V | ±9600V | ±15...24 | ±80mA | ±1.0 | -20~70 | NA | M5 threaded bolts | ||
| HK1V 200 H00 | 200 | ±400 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 400 H00 | 400 | ±800 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 600 H00 | 600 | ±1200 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 800 H00 | 800 | ±1600 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 1000 H00 | 1000 | ±2000 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 2000 H00 | 2000 | ±4000 | ±12...15 | ±4V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 200 H01 | 200 | ±400 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 400 H01 | 400 | ±800 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 600 H01 | 600 | ±1200 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 800 H01 | 800 | ±1600 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 1000 H01 | 1000 | ±2000 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HK1V 2000 H01 | 2000 | ±4000 | ±12...15 | ±5V | ±1.0 | 10 | -40~85 | Ø40.5 | 15EDGVC-3.5-04P | |
| HS1V 50 H02 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 50 H03 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 50 H04 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 50 H06 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 50 H08 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 50 H09 | 50 | ±150 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS1V 100 H00 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 100 H02 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 100 H03 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 100 H04 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 100 H06 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 100 H08 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 100 H09 | 100 | ±300 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS1V 200 H02 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 200 H03 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 200 H04 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 200 H06 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 200 H08 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 200 H09 | 200 | ±600 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS2V 200 H01 | 200 | ±600 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 200 H02 | 200 | ±600 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS1V 300 H02 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 300 H03 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 300 H04 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 300 H06 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 300 H08 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 300 H09 | 300 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS1V 400 H02 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 400 H03 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 400 H04 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 400 H05 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 400 H06 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 400 H08 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 400 H09 | 400 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS2V 400 H00 | 400 | ±1200 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS2V 400 H01 | 400 | ±1200 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 400 H02 | 400 | ±1200 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS1V 500 H00 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 500 H02 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 500 H03 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 500 H04 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 500 H05 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 500 H06 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 500 H08 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 500 H09 | 500 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS2V 500 H01 | 500 | ±1500 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 500 H02 | 500 | ±1500 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS3V 500 H00 | 500 | ±1500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS3V 500 H01 | 500 | ±1500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS1V 600 H02 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| AN3V 10 PB30 | 10 | ±25 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 10 PB31 | 10 | ±25 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 10 PB51 | 10 | ±25 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 16 PB30 | 16 | ±40 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 16 PB31 | 16 | ±40 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 16 PB51 | 16 | ±40 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 20 PB30 | 20 | ±50 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 20 PB31 | 20 | ±50 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 20 PB51 | 20 | ±50 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 32 PB30 | 32 | ±80 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 32 PB31 | 32 | ±80 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 32 PB51 | 32 | ±80 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 40 PB30 | 40 | ±100 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 40 PB31 | 40 | ±100 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 40 PB51 | 40 | ±100 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 50 PB31 | 50 | ±125 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 50 PB51 | 50 | ±125 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 80 PB35 | 80 | ±200 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 80 PB31 | 80 | ±200 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 80 PB51 | 80 | ±200 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 100 PB35 | 100 | ±250 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 100 PB31 | 100 | ±250 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 100 PB51 | 100 | ±250 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 120 PB35 | 120 | ±300 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 120 PB31 | 120 | ±300 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 120 PB51 | 120 | ±300 | 5 | 2.5±2V | ±1.0 | 250 | -40~105 | NA | + | |
| HS1V 600 H08 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm + HC-VH-T | |
|
|
||||||||||
| HS1V 600 H06 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH-4A | |
|
|
||||||||||
| HS1V 600 H05 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS1V 600 H03 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 500mm | |
|
|
||||||||||
| HS1V 600 H04 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | XH2.54-4P | |
|
|
||||||||||
| HS1V 600 H09 | 600 | ±900 | ±12...15 | ±4V | ±1.0 | 50 | -40~105 | 20.4x10.4 mm | RVV4*0.2mm*0.2mm - 700mm | |
|
|
||||||||||
| HS2V 600 H01 | 600 | ±1800 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 600 H02 | 600 | ±1800 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS3V 600 H00 | 600 | ±1800 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS3V 600 H01 | 600 | ±1800 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS2V 800 H00 | 800 | ±2400 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS2V 800 H01 | 800 | ±2400 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 800 H02 | 800 | ±2400 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS3V 800 H01 | 800 | ±2400 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS2V 1000 H01 | 1000 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 1000 H02 | 1000 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS3V 1000 H00 | 1000 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS3V 1000 H01 | 1000 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS2V 1200 H00 | 1200 | ±2500 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS2V 1200 H01 | 1200 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 1200 H02 | 1200 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS2V 1500 H01 | 1500 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | RVVP 4*0.3mm*0.3mm- 1500mm | |
|
|
||||||||||
| HS2V 1500 H02 | 1500 | ±3000 | ±15 | ±4V | ±1.0 | 25 | -40~105 | 40.5x32.5 mm | XH-4A | |
|
|
||||||||||
| HS3V 1500 H01 | 1500 | ±4500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS3V 2000 H01 | 2000 | ±5500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS3V 2500 H00 | 2500 | ±5500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | MOLEX 5045-04A | |
|
|
||||||||||
| HS3V 2500 H01 | 2500 | ±5500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| HS3V 3000 H01 | 3000 | ±5500 | ±15 | ±4V | ±1.0 | 25 | -40~85 | 64 x 21 mm | XH-4A | |
|
|
||||||||||
| CS1V 200 P00 | 200 | ±450 | 5 | 0.25...4.75V | <1.1 | >200 | -40~85 | NA | + | |
|
|
||||||||||
| CS1V 150 P00 | 150 | 270 | 5 | 0.25...4.75V | <1 | >200 | -40~85 | NA | + | |
|
|
||||||||||
| CS1V 100 P00 | 100 | 270 | 5 | 0.25...4.75V | <1 | >200 | -40~85 | NA | + | |
|
|
||||||||||
| CS1V 80 P00 | 80 | 270 | 5 | 0.25...4.75V | <1 | >200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 6 PB02 | 6 | ±12 | 5 | 1.65±1.25V | ±0.4 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 6 PB03 | 6 | ±12 | 5 | 1.62±1.25V | ±0.7 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 6 PB04 | 6 | ±20 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~105 | NA | + | |
|
|
||||||||||
| CR1V 15 PB02 | 15 | ±30 | 5 | 1.65±1.25V | ±0.4 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 15 PB03 | 15 | ±30 | 5 | 1.62±1.25V | ±0.7 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 15 PB04 | 15 | ±51 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~105 | NA | + | |
|
|
||||||||||
| CR1V 25 PB02 | 25 | ±50 | 5 | 1.65±1.25V | ±0.4 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 25 PB03 | 25 | ±50 | 5 | 1.62±1.25V | ±0.7 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 25 PB04 | 25 | ±85 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~105 | NA | + | |
|
|
||||||||||
| CR1V 50 PB03 | 50 | ±100 | 5 | 1.62±1.25V | ±0.7 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1V 50 PB04 | 50 | ±150 | 5 | 2.5±1.875V | ±0.8 | 200 | -40~105 | NA | + | |
|
|
||||||||||
| CR1V 75 PB05 | 75 | ±180 | 5 | 2.5V | ±1.0 | 200 | -40~105 | NA | + | |
|
|
||||||||||
| CN1A 25 PB01 | 25 | ±36 | ±12 | ±25mA | ±0.5 | 150 | -40~85 | NA | + | |
|
|
||||||||||
| AR1A 50 H00 | 50 | ±50 | ±12...15 | ±20mA | ±1.0 | 5 | -40~85 | Ø20.0 | JK2EDG-5.08-4P | |
| AR1A 50 H01 | 50 | ±50 | ±12...15 | ±100mA | ±1.0 | 5 | -40~85 | Ø20 | JK2EDG-5.08-4P | |
| AN1V 300 PB501 | 300 | ±300 | 5 | 0.55-4.55V | ±1.0 | 250 | -40~85 | NA | + | |
| AN1V 300 PB502 | 300 | ±300 | 5 | 0.55-4.55V | ±1.0 | 250 | -40~85 | NA | + | |
| CS3A 200 P21 | 200 | ±300 | ±12...15 | ±100...150mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CN2A 25 PB02 | 25 | ±55 | ±12...15 | ±25mA | ±0.5 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CN2A 40 PB02 | 40 | ±90 | ±12...15 | ±40mA | ±0.5 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CN2A 50 PB02 | 50 | ±90 | ±12...15 | ±50mA | ±0.5 | 200 | -40~85 | NA | + | |
|
|
||||||||||
| CR1A 50 H00 | 50 | ±70 | ±12...15 | ±50...100mA | ±0.5 | 200 | -40~85 | Ø23 | MOLEX 5045-04A | |
|
|
||||||||||
| CR1A 100 H02 | 100 | ±200 | ±12...15 | ±50...100mA | ±0.5 | 200 | -40~85 | Ø23 | HX39600-3Y | |
|
|
||||||||||
| CR1A 100 H04 | 100 | ±200 | ±12...15 | ±50...100mA | ±0.5 | 200 | -40~85 | Ø23 | Molex9652048 3.96-A4A | |
|
|
||||||||||
| CR1A 200 H02 | 200 | ±400 | ±12...15 | ±100...200mA | ±0.5 | 200 | -40~85 | Ø23 | HX39600-3Y | |
|
|
||||||||||
| CR1A 200 H04 | 200 | ±400 | ±12...15 | ±100...200mA | ±0.5 | 200 | -40~85 | Ø23 | Molex9652048 3.96-A4A | |
|
|
||||||||||
| CR1A 300 H04 | 300 | ±500 | ±12...15 | ±150...250mA | ±0.5 | 200 | -40~85 | Ø23 | Molex9652048 3.96-A4A | |
|
|
||||||||||
| CM1A 100 H01 | 100 | ±200 | ±12...15 | ±100...200mA | ±0.2 | 100 | -40~85 | Ø15.6 | Molex 6410 | |
|
|
||||||||||
| CM1A 200 H02 | 200 | ±420 | ±12...15 | ±100...200mA | ±0.2 | 100 | -40~85 | Ø15.6 | Molex Minifit 5566 | |
|
|
||||||||||
| CM4A 1000 H06 | 1000 | ±2700 | ±15...24 | ±200...540mA | ±0.3 | 150 | -40~85 | Ø38 | Molex 6410 | |
|
|
||||||||||
| CM5A 2000 H01 | 2000 | ±3850 | ±15...24 | ±400...770mA | ±0.3 | 150 | -40~85 | Ø57.5 | 5566-4A | |
|
|
||||||||||
| CM5A 2000 H21 | 2000 | ±4250 | ±15...24 | ±400...850mA | ±0.3 | 150 | -40~85 | Ø57.5 | 2EDGV-5.08-3P | |
|
|
||||||||||
| CS3A 20 P01 | 20 | ±30 | ±12 | ±50...90mA | ±0.5 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 50 P00 | 50 | ±90 | ±12...15 | ±50...90mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 50 P21 | 50 | ±100 | ±12...15 | ±25...37.5mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 100 P21 | 100 | ±150 | ±12...15 | ±50...75mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS3A 100 P51 | 100 | ±150 | ±12...15 | ±100...150mA | ±0.3 | 150 | -40~85 | 13.5 x 10 mm | + | |
|
|
||||||||||
| CS1V 100 PB00 | 100 | 270 | 5 | 0.25...4.75V | <0.95 | >200 | -40~85 | 4 x φ5.2 mm | + | |
|
|
||||||||||
| CS1V 150 PB00 | 150 | 270 | 5 | 0.25...4.75V | <0.95 | >200 | -40~85 | 4 x φ5.2 mm | + | |
|
|
||||||||||
| CS1V 200 PB00 | 200 | ±450 | 5 | 0.25...4.75V | <1.1 | >200 | -40~85 | 4 x φ5.2 mm | + | |
|
|
||||||||||
| AN3V 150 PB55 | 150 | ±375 | 5 | 2.5±2V | +1.0 | 250 | -40~105 | NA | + | |
| AN3V 180 PB55 | 180 | ±375 | 5 | 2.5±2V | +1.0 | 250 | -40~105 | NA | + | |
| AN3V 200 PB55 | 200 | ±375 | 5 | 2.5±2V | +1.0 | 250 | -40~105 | NA | + | |
| AN3V 150 PB35 | 150 | ±375 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 180 PB35 | 180 | ±375 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
| AN3V 200 PB35 | 200 | ±375 | 3.3 | 1.65±1.15V | ±1.0 | 250 | -40~105 | NA | + | |
