Product description

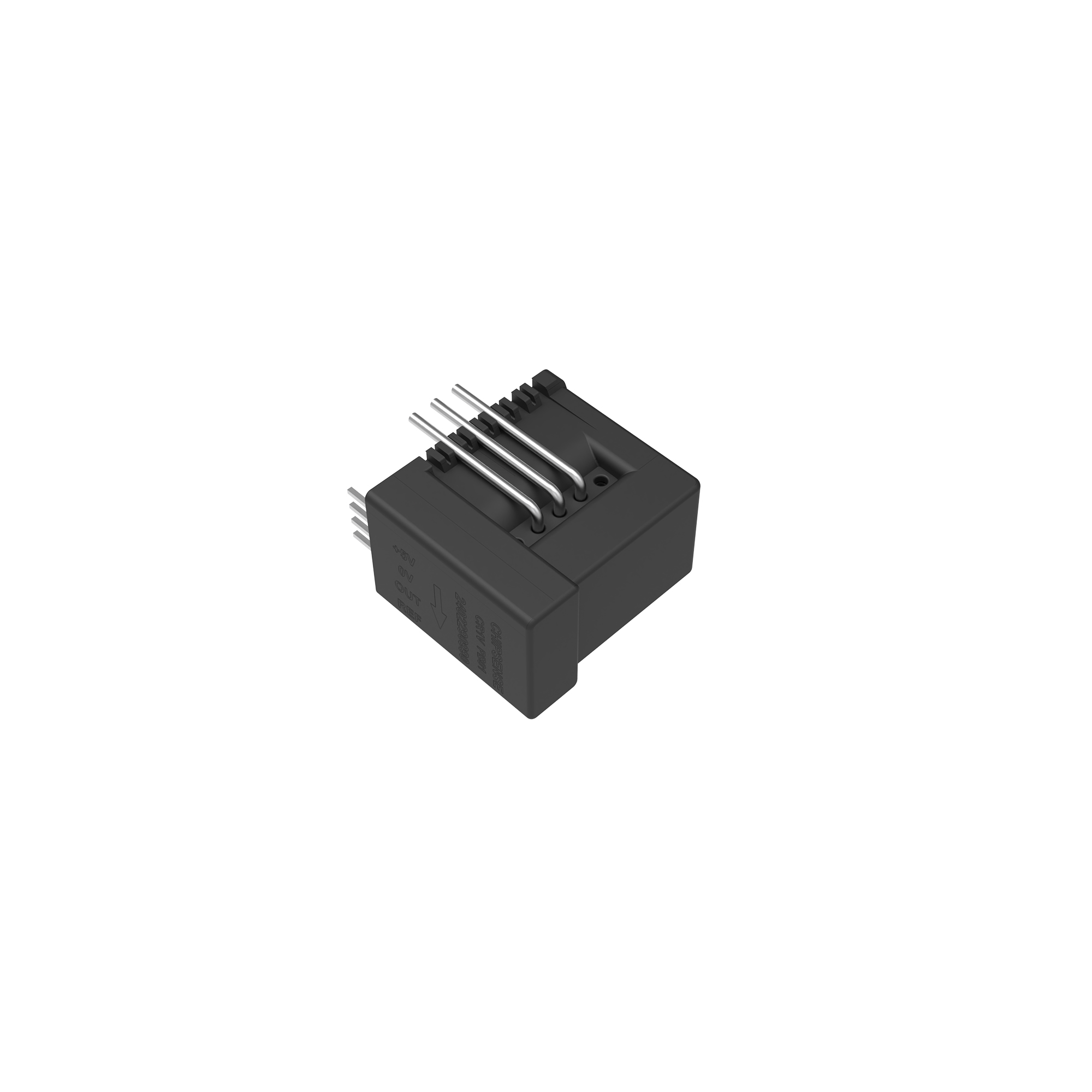

- Closed loop（compensated）current sensor using the Hall effect
- Galvanic separation between primary and secondary
- Insulating plastic case recognized according to UL 94-V0
- Very good linearity
- High accuracy
- Very low offset drift over temperature
- No insertion losses
- Standards:IEC 60664-1: 2020, IEC 61800-5-1: 2022, IEC 62109-1: 2010
Specification
| Primary nominal RMS current (A) |
15 |
| Measuring range (A) |
±45 |
| Supply voltage (V) |
5 |
| Secondary output |
2.5±1.875V |
| Accuracy (%) |
±0.7 |
| Output bandwidth |
200 |
| Operating temperature (°C) |
-40~85 |
| Copper busbar (mm) |
NA |
| PCB |
+ |
| Others |
|
