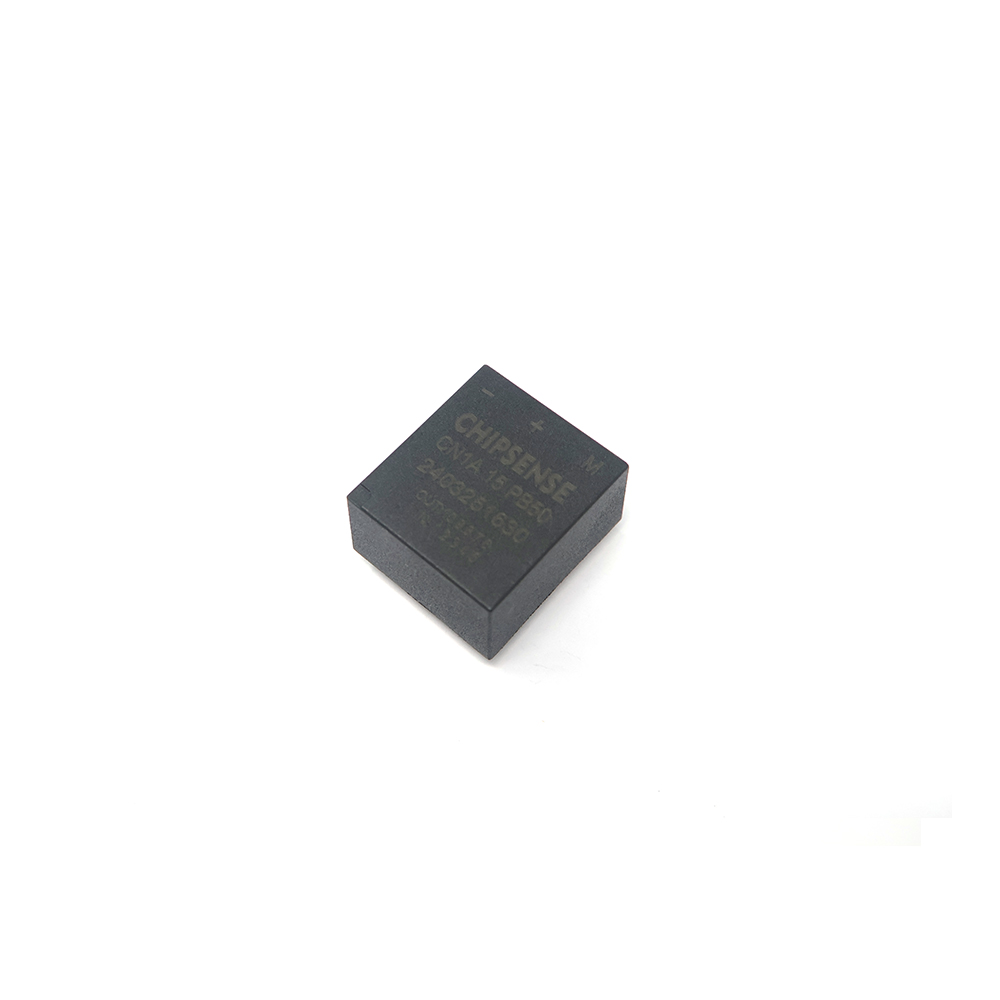

Product description
- Closed loop (compensated) current sensor using the Hall Effect
- Galvanic separation between primary and secondary
- Insulating plastic case recognized according to UL94-V0
- Very good linearity
- High accuracy
- Very low offset drift over temperature
- No insertion loss
- Standards:IEC 60664-1:2020, IEC 61800-5-1:2022, IEC 62109-1:2010
Specification
| Primary nominal RMS current (A) |
25 |
| Measuring range (A) |
±36 |
| Supply voltage (V) |
±15 |
| Secondary output |
±25mA |
| Accuracy (%) |
±0.5 |
| Output bandwidth |
150 |
| Operating temperature (°C) |
-40~85 |
| Copper busbar (mm) |
NA |
| PCB |
+ |
| Others |
|
